Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

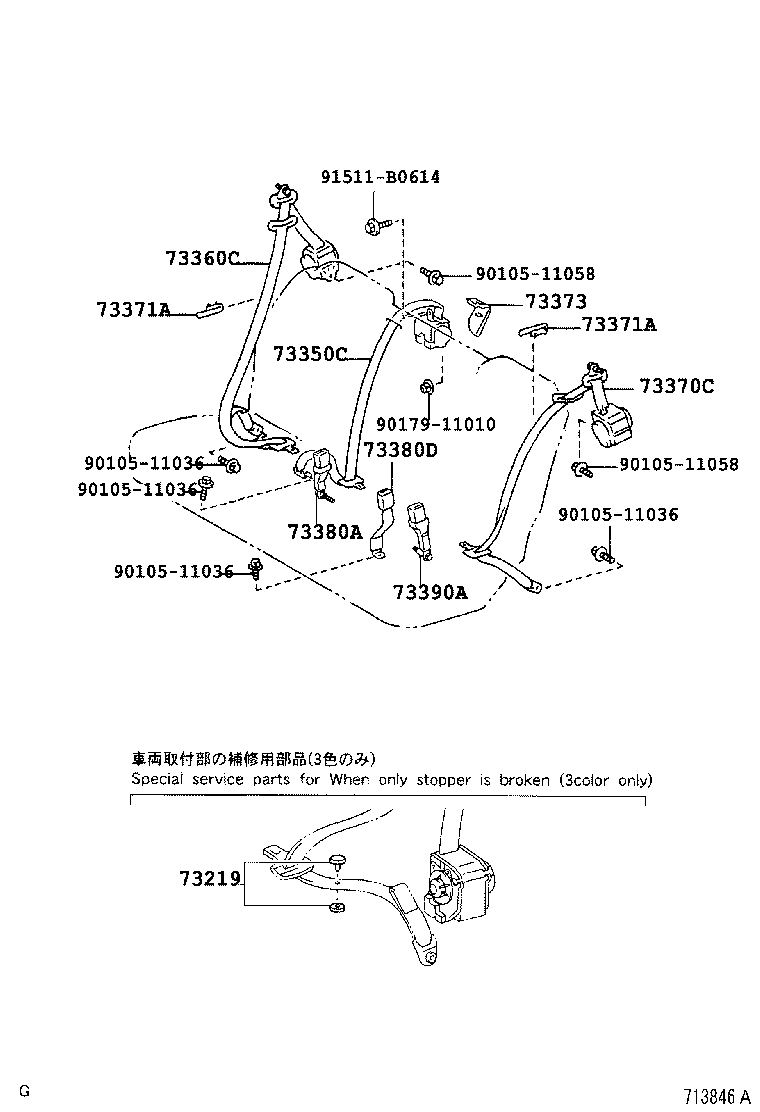

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73219 — Stopper, Tongue Plate | ||||
| 73219-02010 note |
Stopper, Tongue Plate
2005-03 → —
|
MHU2# | — | |
| 73219-02020 note |
Stopper, Tongue Plate
2005-03 → —
|
MHU2# | — | |
| 73219-02030 note |
Stopper, Tongue Plate
2005-03 → —
|
MHU2# | — | |
| 73350C — Belt Assy, Rear Seat, Outer Center | ||||
| 73350-48030-A0 note |
Belt Assy, Rear Seat, Outer Center
2005-03 → 2007-05
ended
|
MHU2# 05S | — | |
| 73350-48030-B2 note |
Belt Assy, Rear Seat, Outer Center
2005-03 → 2007-05
ended
|
MHU2# 05S | — | |
| 73350-48040-A0 note |
Belt Assy, Rear Seat, Outer Center
2005-03 → 2007-05
ended
|
MHU2# 07S | — | |
| 73350-48040-B0 note |
Belt Assy, Rear Seat, Outer Center
2005-03 → 2007-05
ended
|
MHU2# 07S | — | |
| 73360C — Belt Assy, Rear NO.1 Seat, Outer RH | ||||
| 73360-48050-A0 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73360-48050-B0 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73370C — Belt Assy, Rear NO.1 Seat, Outer LH | ||||
| 73370-48050-A0 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73370-48050-B0 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73371A — Hanger Rear Seat Shoulder Belt | ||||
| 73371-44020-A1 note |
Hanger Rear Seat Shoulder Belt
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73371-44020-P0 note |
Hanger Rear Seat Shoulder Belt
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73373 — Cover, Rear Seat Shoulder Belt | ||||
| 73373-48011 |
Cover, Rear Seat Shoulder Belt
2005-03 → —
|
MHU2# 05S | — | |
| 73373-48040 |
Cover, Rear Seat Shoulder Belt
2005-03 → —
|
MHU2# 07S | — | |
| 73380A — Belt Assy, Rear Seat, Inner | ||||
| 73380-48030-A0 note |
Belt Assy, Rear Seat, Inner
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73380-48030-B1 note |
Belt Assy, Rear Seat, Inner
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73380D — Belt Assy, Rear Seat, Inner | ||||
| 73380-48050-A0 note |
Belt Assy, Rear Seat, Inner
2005-03 → 2007-05
ended
|
MHU2# 05S | — | |
| 73380-48050-B1 note |
Belt Assy, Rear Seat, Inner
2005-03 → 2007-05
ended
|
MHU2# 05S | — | |
| 73380-48070-A0 note |
Belt Assy, Rear Seat, Inner
2005-03 → 2007-05
ended
|
MHU2# 07S | — | |
| 73380-48070-B0 note |
Belt Assy, Rear Seat, Inner
2005-03 → 2007-05
ended
|
MHU2# 07S | — | |
| 73390A — Belt Assy, Rear Seat, Inner | ||||
| 73480-48030-A0 note |
Belt Assy, Rear Seat, Inner
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 73480-48030-B1 note |
Belt Assy, Rear Seat, Inner
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
