Toyota Highlander HV

2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States

Supported model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

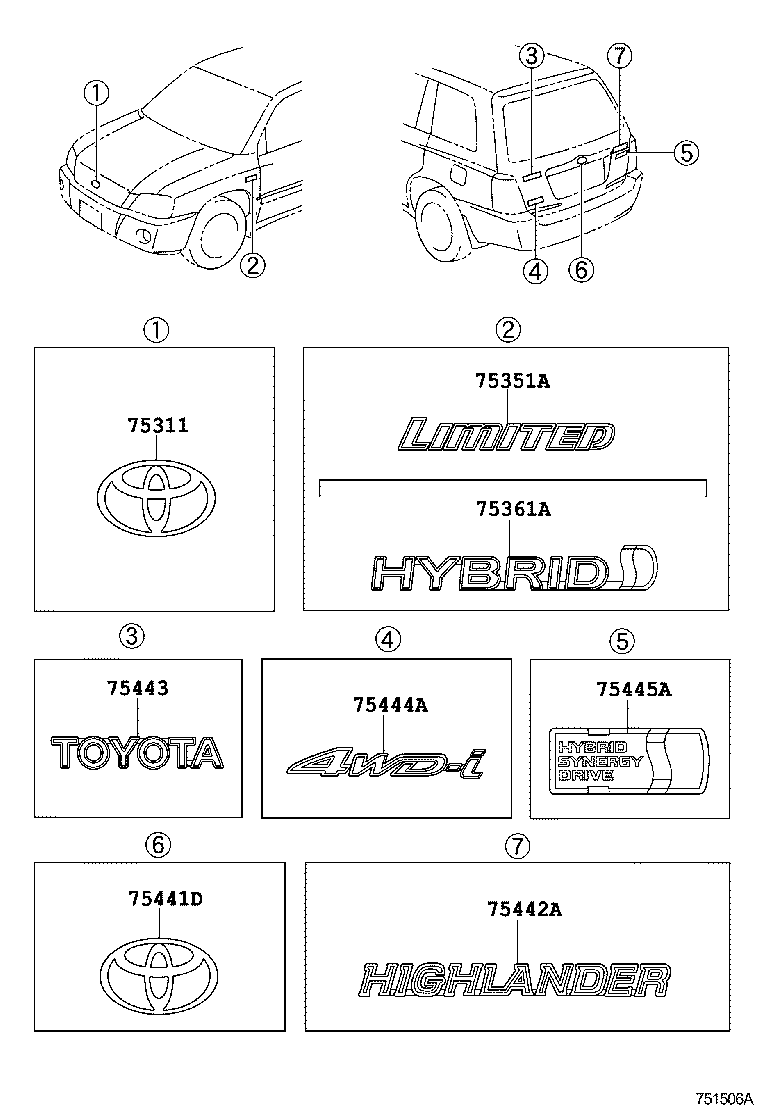

Exploded illustration 751506A 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (1 parts) 75443 — PLATE, BACK DOOR NAME, NO.3 (1 parts) 75351A — EMBLEM, FRONT FENDER (1 parts) 75442A — PLATE, BACK DOOR NAME, NO.2 (1 parts) 75445A — PLATE, BACK DOOR NAME, NO.5 (2 parts) 75441D — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1 (1 parts) 75444A — PLATE, BACK DOOR NAME, NO.4 (1 parts) 75361A — PLATE, FRONT FENDER NAME, NO.1 (2 parts)
751506A · 8 callouts Full size ↗
10 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
90975-02048 Emblem, Radiator Grille (OR FRONT PANEL)
2005-03 → 2007-05 ended
MHU2# —
75351A — Emblem, Front Fender
75442-35080 note Emblem, Front Fender
2005-03 → —
MHU2# —
75361A — Plate, Front Fender Name, NO.1
75361-48010 note Plate, Front Fender Name, NO.1
2006-02 → —
MHU2# —
75361-48020 note Plate, Front Fender Name, NO.1
2006-02 → —
MHU2# —
75441D — Plate, Luggage Compartment Door Name, NO.1
90975-02036 Plate, Luggage Compartment Door Name, NO.1
2005-03 → 2007-05 ended
MHU2# —
75442A — Plate, Back Door Name, NO.2
75442-48040 note Plate, Back Door Name, NO.2
2005-03 → —
MHU2# —
75443 — Plate, Back Door Name, NO.3
75442-16530 note Plate, Back Door Name, NO.3
2005-03 → —
MHU2# —
75444A — Plate, Back Door Name, NO.4
75444-48060 note Plate, Back Door Name, NO.4
2005-03 → —
MHU28 —
75445A — Plate, Back Door Name, NO.5
75445-48040 note Plate, Back Door Name, NO.5
2005-03 → 2006-02 ended
MHU2# —
75445-48050 note Plate, Back Door Name, NO.5
2006-02 → —
MHU2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
