Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

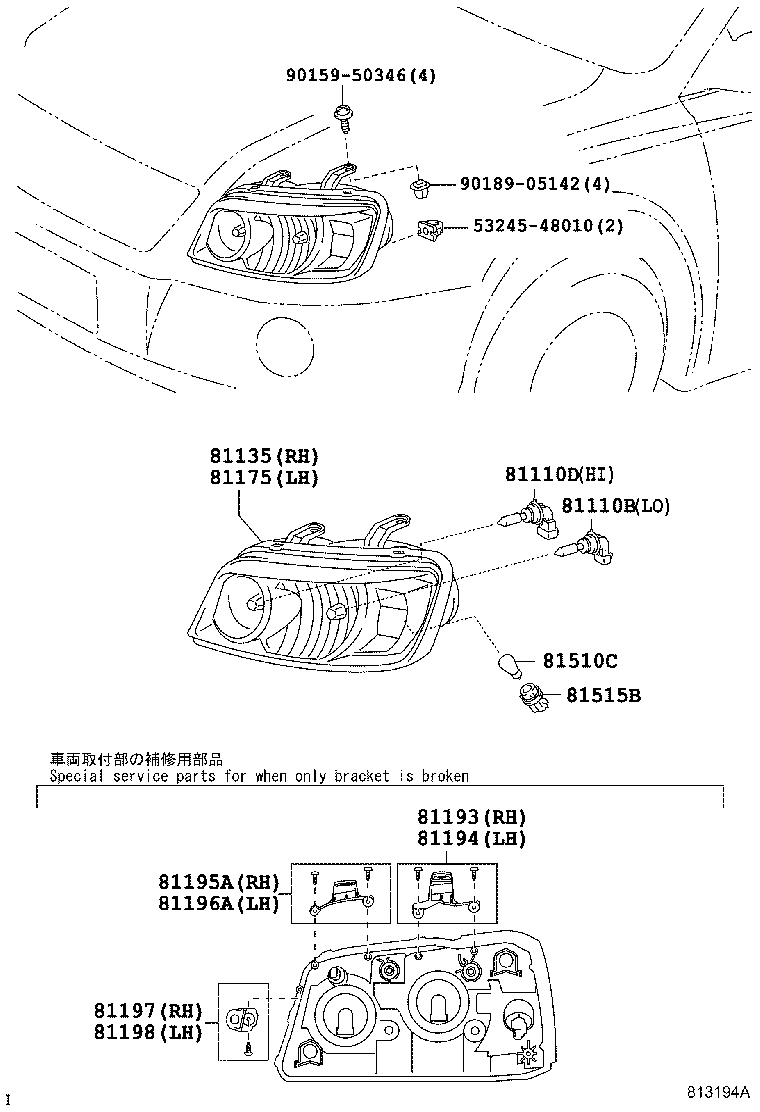

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90981-13047 note |
Bulb(FOR HEADLAMP, NO.1)
2005-03 → —
|
MHU2# | — | |
| 81110D — Bulb(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.2)
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-48310 |
Unit Assy, Headlamp, RH
2005-03 → 2006-08
ended
|
MHU2# | — | |
| 81130-48570 |
Unit Assy, Headlamp, RH
2006-08 → —
|
MHU2# | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-48310 |
Unit Assy, Headlamp, LH
2005-03 → 2006-08
ended
|
MHU2# | — | |
| 81170-48570 |
Unit Assy, Headlamp, LH
2006-08 → —
|
MHU2# | — | |
| 81193 — Retainer, Headlamp Protector, Upper RH | ||||
| 81193-48020 |
Retainer, Headlamp Protector, Upper RH
2005-03 → —
|
MHU2# | — | |
| 81194 — Retainer, Headlamp Protector, Upper LH | ||||
| 81194-48020 |
Retainer, Headlamp Protector, Upper LH
2005-03 → —
|
MHU2# | — | |
| 81195A — Retainer, Headlamp Protector, Lower RH | ||||
| 81195-48030 |
Retainer, Headlamp Protector, Lower RH
2005-03 → —
|
MHU2# | — | |
| 81196A — Retainer, Headlamp Protector, Lower LH | ||||
| 81196-48030 |
Retainer, Headlamp Protector, Lower LH
2005-03 → —
|
MHU2# | — | |
| 81197 — Bracket, Headlamp, Lower RH | ||||
| 81197-48010 |
Bracket, Headlamp, Lower RH
2005-03 → —
|
MHU2# | — | |
| 81198 — Bracket, Headlamp, Lwr LH | ||||
| 81198-48010 |
Bracket, Headlamp, Lwr LH
2005-03 → —
|
MHU2# | — | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-21210 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2005-03 → —
|
MHU2# | — | |
| 81515B — Socket, Front Turn Signal Lamp | ||||
| 90075-99106 |
Socket, Front Turn Signal Lamp
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
