Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

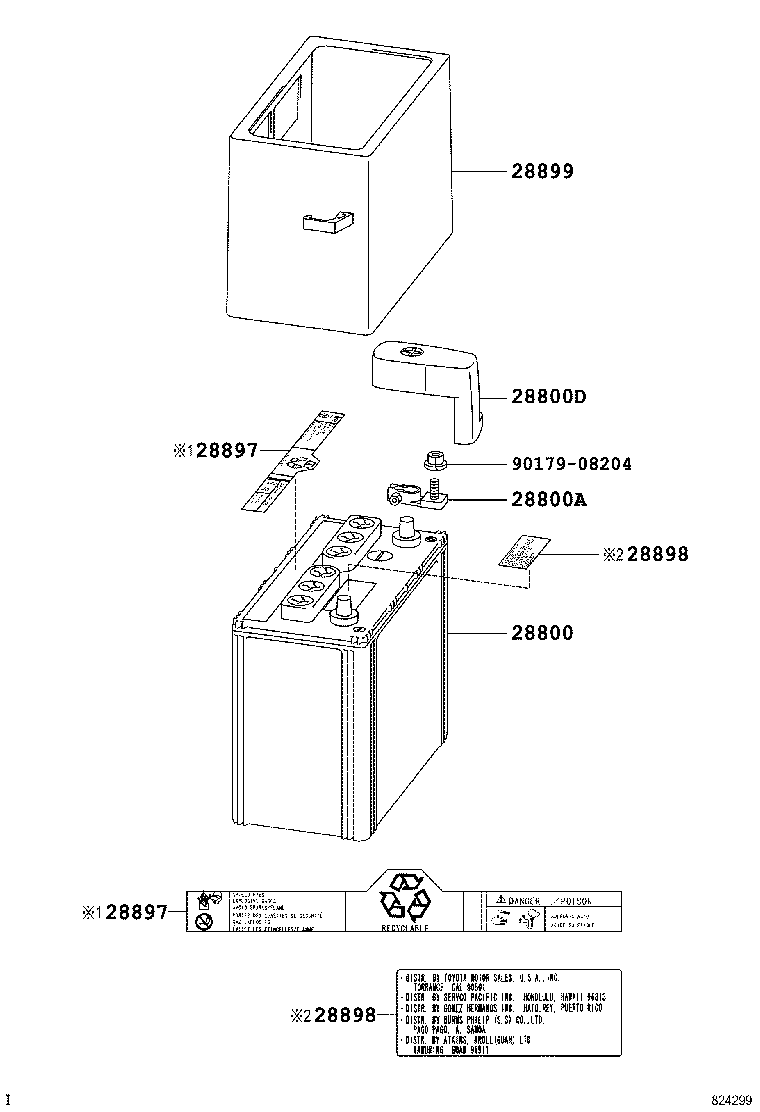

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-20060 note |
Battery
2005-03 → —
|
3MZFE MHU2# | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05058 |
Terminal, Battery Positive
2005-03 → —
|
3MZFE MHU2# | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-20440 |
Cover, Connector(FOR BATTERY TERMINAL)
2005-03 → —
|
3MZFE MHU2# | — | |
| 28897 — Plate, Battery Caution | ||||
| 28897-20010 note |
Plate, Battery Caution
2005-03 → —
|
3MZFE MHU28 | — | |
| 28898 — Plate, Battery | ||||
| 28898-20020 |
Plate, Battery
2005-03 → —
|
3MZFE MHU2# | — | |
| 28899 — Insulator, Battery | ||||
| 28899-20010 |
Insulator, Battery
2005-03 → 2005-04
ended
|
3MZFE MHU2# | — | |
| 28899-20011 |
Insulator, Battery
2005-04 → —
|
3MZFE MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
