Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

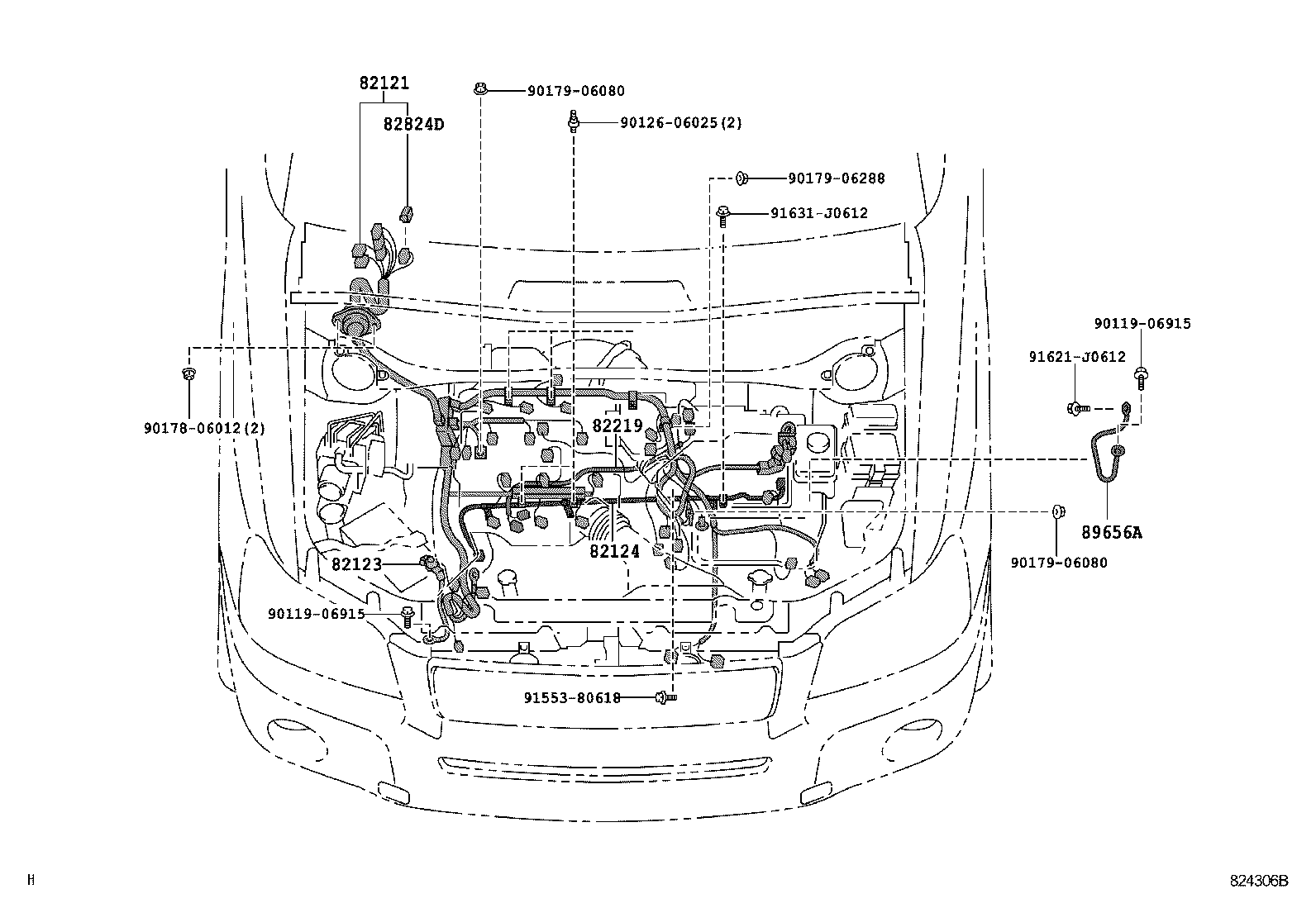

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-48130 |
Wire, Engine
2005-03 → —
|
MHU2# | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-48040 |
Wire, Engine, NO.3
2005-03 → —
|
MHU2# | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-48010 |
Wire, Engine, NO.4
2005-03 → —
|
MHU2# | — | |
| 82219 — Wire, Thermo Sensor | ||||
| 82219-48010 |
Wire, Thermo Sensor
2005-03 → —
|
MHU2# | — | |
| 82824D — Connector, Wiring Harness | ||||
| 82824-50110 |
Connector, Wiring Harness
2005-03 → —
|
MHU2# | — | |
| 89656A — Wire, Power Steering Earth | ||||
| 89656-48010 |
Wire, Power Steering Earth
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
