Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

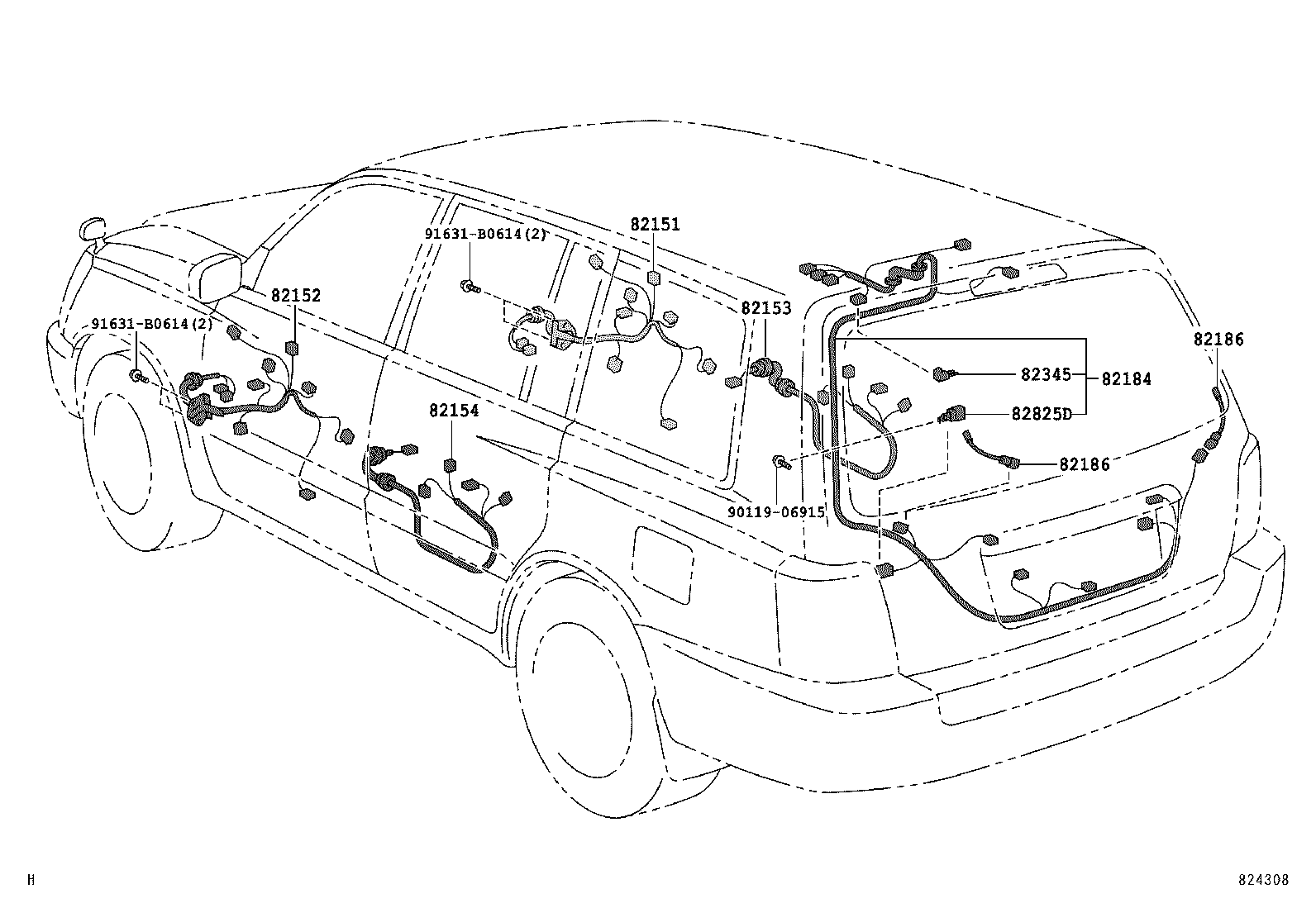

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82151 — Wire, Front Door, RH | ||||
| 82151-48100 |
Wire, Front Door, RH
2005-03 → —
|
MHU2# | — | |
| 82152 — Wire, Front Door, LH | ||||
| 82152-48100 |
Wire, Front Door, LH
2005-03 → —
|
MHU2# | — | |
| 82153 — Wire, Rear Door, NO.1 | ||||
| 82153-48040 |
Wire, Rear Door, NO.1
2005-03 → —
|
MHU2# | — | |
| 82154 — Wire, Rear Door, NO.2 | ||||
| 82153-48040 |
Wire, Rear Door, NO.2
2005-03 → —
|
MHU2# | — | |
| 82184 — Wire, Back Door, NO.1 | ||||
| 82184-48170 |
Wire, Back Door, NO.1
2005-03 → —
|
MHU2# | — | |
| 82184-48180 note |
Wire, Back Door, NO.1
2005-03 → —
|
MHU2# | — | |
| 82186 — Wire, Rear Window, NO.1 | ||||
| 82186-48010 |
Wire, Rear Window, NO.1
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 82345 — Diode | ||||
| 82345-32010 |
Diode
2005-03 → —
|
MHU2# | — | |
| 82825D — Connector, Wiring Harness | ||||
| 82824-20130 |
Connector, Wiring Harness
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
