Factory parts data · Europe

Toyota Highlander HV

2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States

Supported model Data version 2007-10

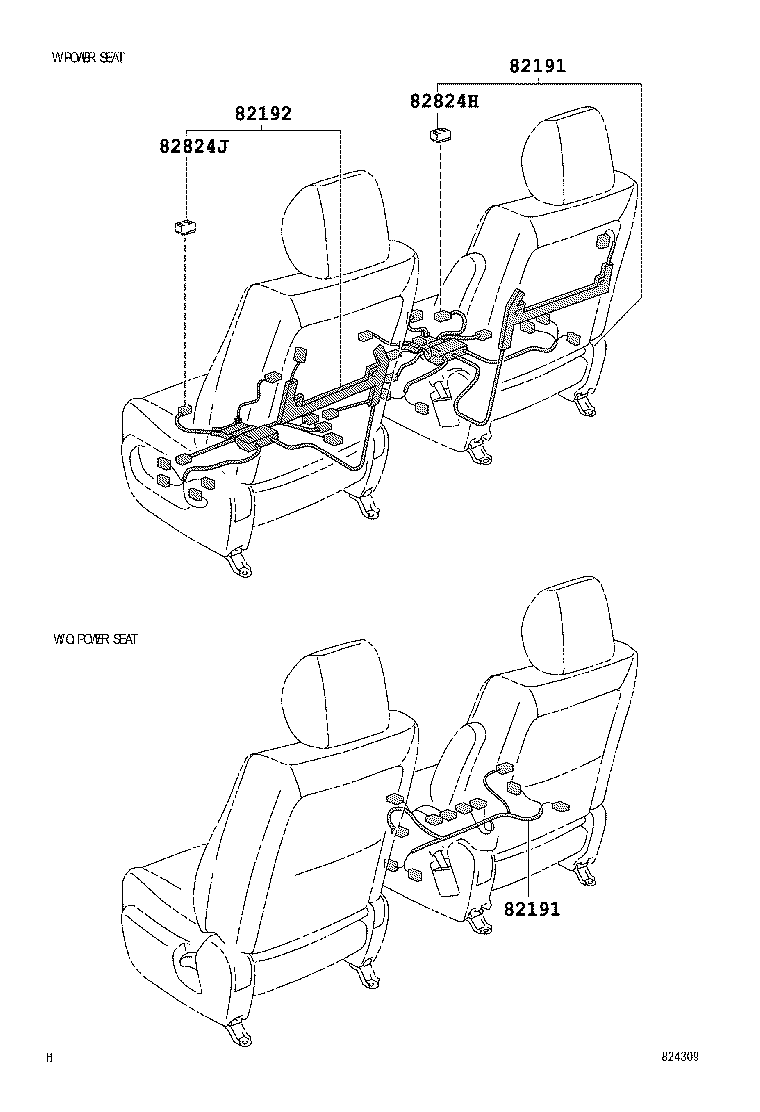

14 parts on this figure
Part number Description Fitment Price
82191 — Wire, Front Seat, RH
82191-48220 note Wire, Front Seat, RH
2005-03 → 2007-05 ended
MHU2# —
82191-48230 note Wire, Front Seat, RH
2005-03 → 2007-05 ended
MHU2# —
82191-48240 Wire, Front Seat, RH
2005-03 → 2007-05 ended
MHU2# —
82191-48250 note Wire, Front Seat, RH
2005-03 → 2007-05 ended
MHU2# —
82192 — Wire, Front Seat, LH
82192-48230 note Wire, Front Seat, LH
2005-03 → 2007-05 ended
MHU2# —
82192-48230 note Wire, Front Seat, LH
2005-03 → 2007-05 ended
MHU2# —
82192-48250 note Wire, Front Seat, LH
2005-03 → 2007-05 ended
MHU2# —
82192-48250 note Wire, Front Seat, LH
2005-03 → 2007-05 ended
MHU2# —
82824H — Connector, Wiring Harness
82824-48100 note Connector, Wiring Harness
2005-03 → —
MHU2# —
82824-48100 note Connector, Wiring Harness
2005-03 → —
MHU2# —
82824J — Connector, Wiring Harness
82824-48100 note Connector, Wiring Harness
2005-03 → —
MHU2# —
82824-48100 note Connector, Wiring Harness
2005-03 → —
MHU2# —
82824-48100 note Connector, Wiring Harness
2005-03 → —
MHU2# —
82824-48100 note Connector, Wiring Harness
2005-03 → —
MHU2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
