Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

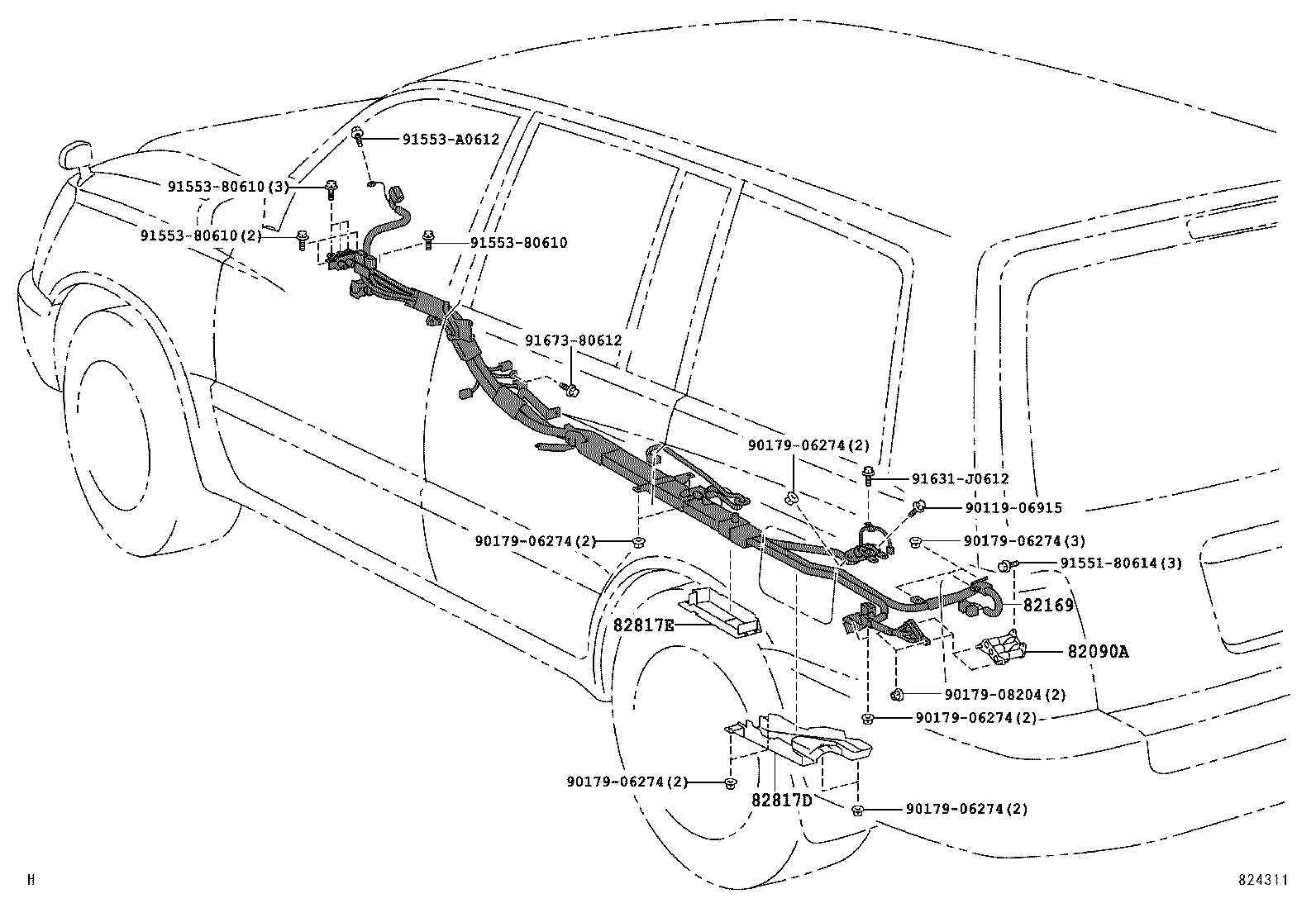

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82090A — Wire Assy, Extension | ||||
| 82090-48010 |
Wire Assy, Extension
2005-03 → —
|
MHU28 | — | |
| 82169 — Wire Frame, NO.3 | ||||
| 82169-48020 |
Wire Frame, NO.3
2005-03 → 2007-05
ended
|
MHU23 | — | |
| 82169-48030 |
Wire Frame, NO.3
2005-03 → 2007-05
ended
|
MHU28 | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-48570 |
Protector, Wiring Harness, NO.5
2005-03 → —
|
MHU2# | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-48580 |
Protector, Wiring Harness, NO.6
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
