Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

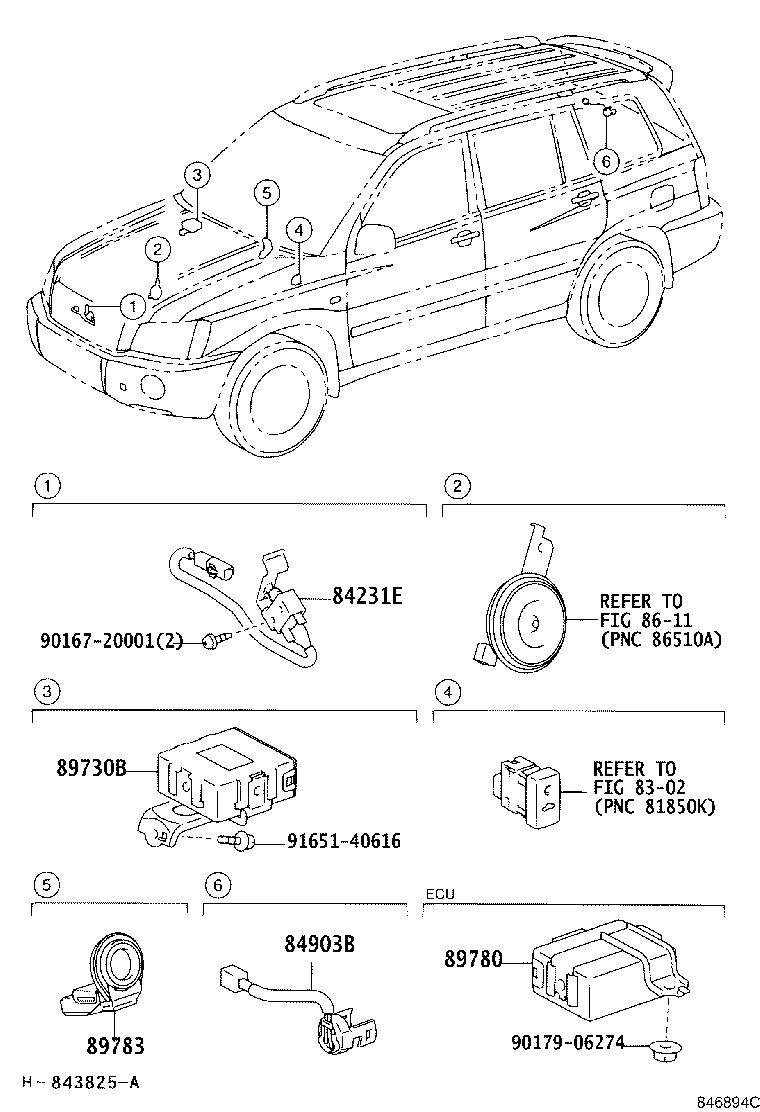

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84231E — Switch, Courtesy(FOR SECURITY) | ||||
| 84231-48060 note |
Switch, Courtesy(FOR SECURITY)
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 84903B — Switch Sub-assy, Door Unlock | ||||
| 84903-48010 note |
Switch Sub-assy, Door Unlock
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 89730B — Computer Assy, Theft Warning | ||||
| 89730-48050 note |
Computer Assy, Theft Warning
2005-03 → 2006-06
ended
|
MHU2# | — | |
| 89730-48070 note |
Computer Assy, Theft Warning
2006-06 → —
|
MHU2# | — | |
| 89780 — Computer Assy, Transponder Key | ||||
| 89780-48040 note |
Computer Assy, Transponder Key
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 89780-48040 note |
Computer Assy, Transponder Key
2005-03 → —
|
MHU2# | — | |
| 89780-48040 note |
Computer Assy, Transponder Key
2005-09 → —
|
MHU2# | — | |
| 89783 — Amplifier, Transponder Key | ||||
| 89783-48080 note |
Amplifier, Transponder Key
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 89783-48080 note |
Amplifier, Transponder Key
2005-03 → —
|
MHU2# | — | |
| 89783-48080 note |
Amplifier, Transponder Key
2005-09 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
