Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

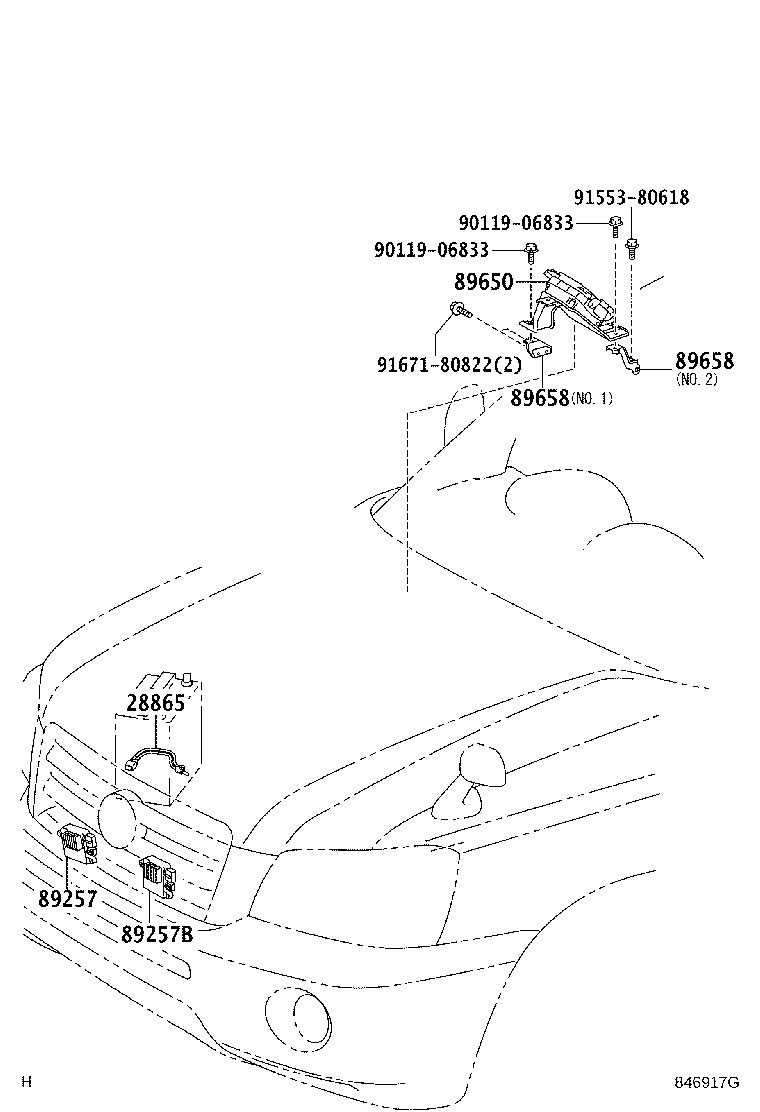

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28865 — Sensor, Battery Thermometer | ||||
| 28865-23010 |
Sensor, Battery Thermometer
2005-03 → 2007-05
ended
|
3MZFE MHU2# | — | |
| 89257 — Computer, Cooling Fan | ||||
| 89257-26020 |
Computer, Cooling Fan
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 89257B — Computer, Cooling Fan, NO.2 | ||||
| 89257-26020 |
Computer, Cooling Fan, NO.2
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-48010 |
Computer Assy, Power Steering
2005-03 → —
|
MHU2# | — | |
| 89658 — Bracket, Power Steering Computer | ||||
| 89658-48030 note |
Bracket, Power Steering Computer
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 89658-48040 note |
Bracket, Power Steering Computer
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 89658-48050 note |
Bracket, Power Steering Computer
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
