Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

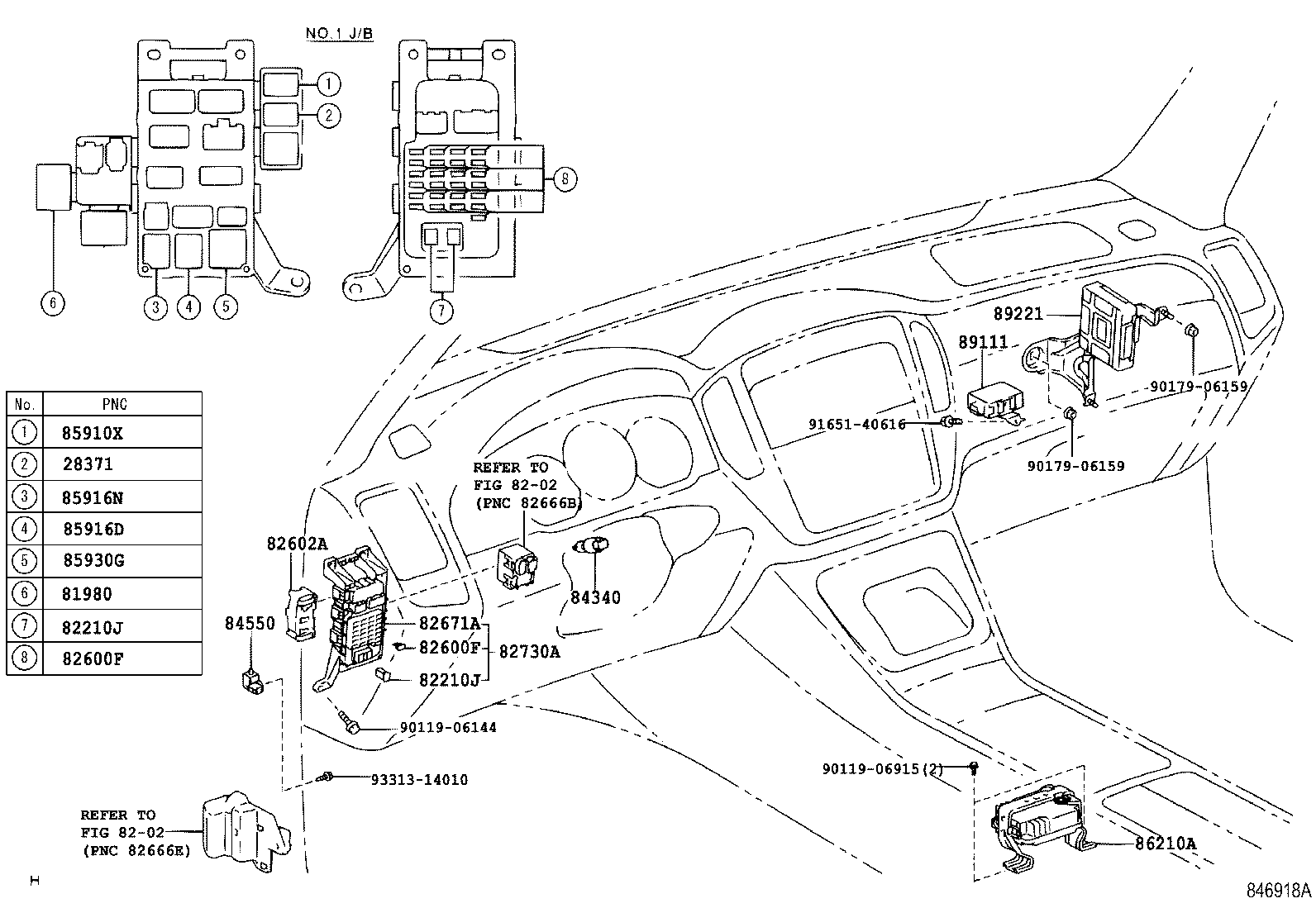

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90987-02027 note |
Relay, Ignition, NO.1
2005-03 → —
|
3MZFE MHU2# | — | |
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-53020 |
Flasher Assy, Turn Signal
2005-03 → —
|
MHU2# | — | |
| 82210J — Fusible Link | ||||
| 90982-08254 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08283 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08283 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08283 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08284 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08284 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08284 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08285 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08254 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08283 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08284 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-08285 note |
Fusible Link
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90080-82020 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90080-82021 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90080-82022 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90080-82023 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90080-82033 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-09008 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-09009 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-09010 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-09011 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-09012 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 90982-09013 note |
Fuse, Fuse Block
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 82602A — Block Sub-assy, Relay | ||||
| 82602-48010 |
Block Sub-assy, Relay
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 82671A — Block, Junction | ||||
| 82732-48021 |
Block, Junction
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 82730A — Block Assy, Driver Side Junction | ||||
| 82730-48090 |
Block Assy, Driver Side Junction
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-47020 |
Switch Assy, Stop Lamp
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-16060 |
Switch Assy, Parking Brake
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 85910X — Relay, Heater Mirror | ||||
| 90987-02009 note |
Relay, Heater Mirror
2005-03 → —
|
MHU2# | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02027 note |
Relay, Fog Lamp
2005-03 → —
|
MHU2# | — | |
| 85916N — Relay, Taillamp | ||||
| 90987-02027 |
Relay, Taillamp
2005-03 → —
|
MHU2# | — | |
| 85930G — Relay, Acc | ||||
| 90987-02009 |
Relay, Acc
2005-03 → —
|
MHU2# | — | |
| 86210A — Inverter Assy, Voltage | ||||
| 86210-48020 note |
Inverter Assy, Voltage
2005-03 → —
|
MHU2# | — | |
| 89111 — Computer, Network Gateway | ||||
| 89111-48060 |
Computer, Network Gateway
2005-03 → —
|
MHU2# | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89221-48260 note |
Computer, Multiplex Network Body
2005-03 → 2005-09
ended
|
MHU2# | — | |
| 89221-48260 |
Computer, Multiplex Network Body
2005-09 → —
|
MHU2# | — | |
| 89221-48270 |
Computer, Multiplex Network Body
2005-03 → 2005-09
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
