Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

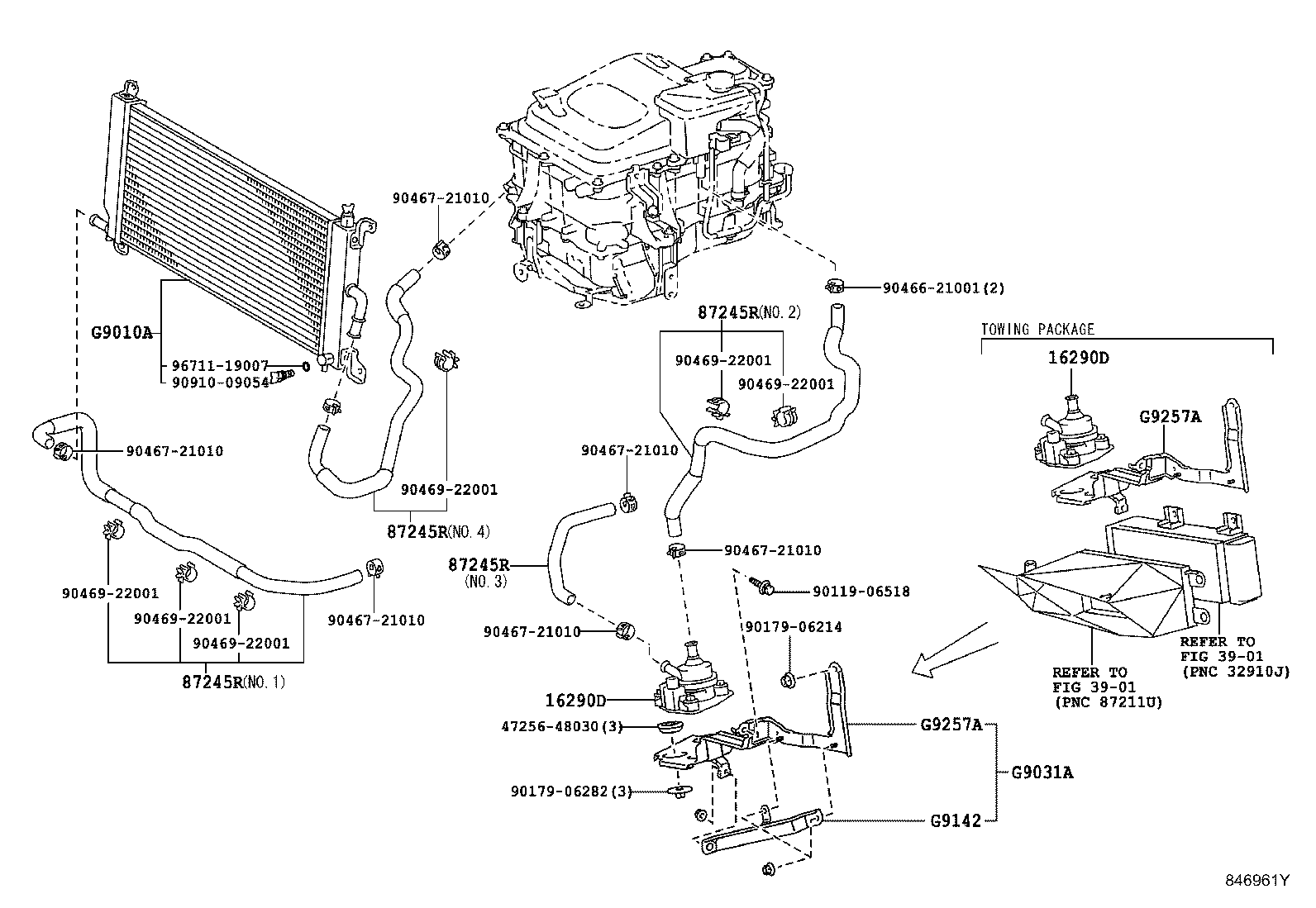

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16290D — Pump Assy, Water W/Motor | ||||
| G9040-48080 |
Pump Assy, Water W/Motor
2005-03 → 2007-05
ended
|
3MZFE MHU2# | — | |
| 87245R — Hose, Water | ||||
| 87245-48640 note |
Hose, Water
2005-03 → —
|
MHU2# | — | |
| 87245-48670 note |
Hose, Water
2005-03 → —
|
MHU2# | — | |
| 87245-48680 note |
Hose, Water
2005-03 → —
|
MHU2# | — | |
| 87245-48690 note |
Hose, Water
2005-03 → —
|
MHU2# | — | |
| G9010A — Radiator Assy | ||||
| G9010-48010 |
Radiator Assy
2005-03 → 2007-05
ended
|
MHU2# | — | |
| G9031A — Bracket Sub-assy, HV Water Pump | ||||
| G9257-48080 |
Bracket Sub-assy, HV Water Pump
2005-03 → 2007-05
ended
|
MHU2# | — | |
| G9142 — Bracket, Hybrid Water Pump, NO.2 | ||||
| G9257-48070 |
Bracket, Hybrid Water Pump, NO.2
2005-03 → 2007-05
ended
|
MHU2# | — | |
| G9257A — Bracket, Inverter, NO.5 | ||||
| G9257-48060 |
Bracket, Inverter, NO.5
2005-03 → 2007-03
ended
|
MHU2# | — | |
| G9257-48150 |
Bracket, Inverter, NO.5
2007-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
