Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

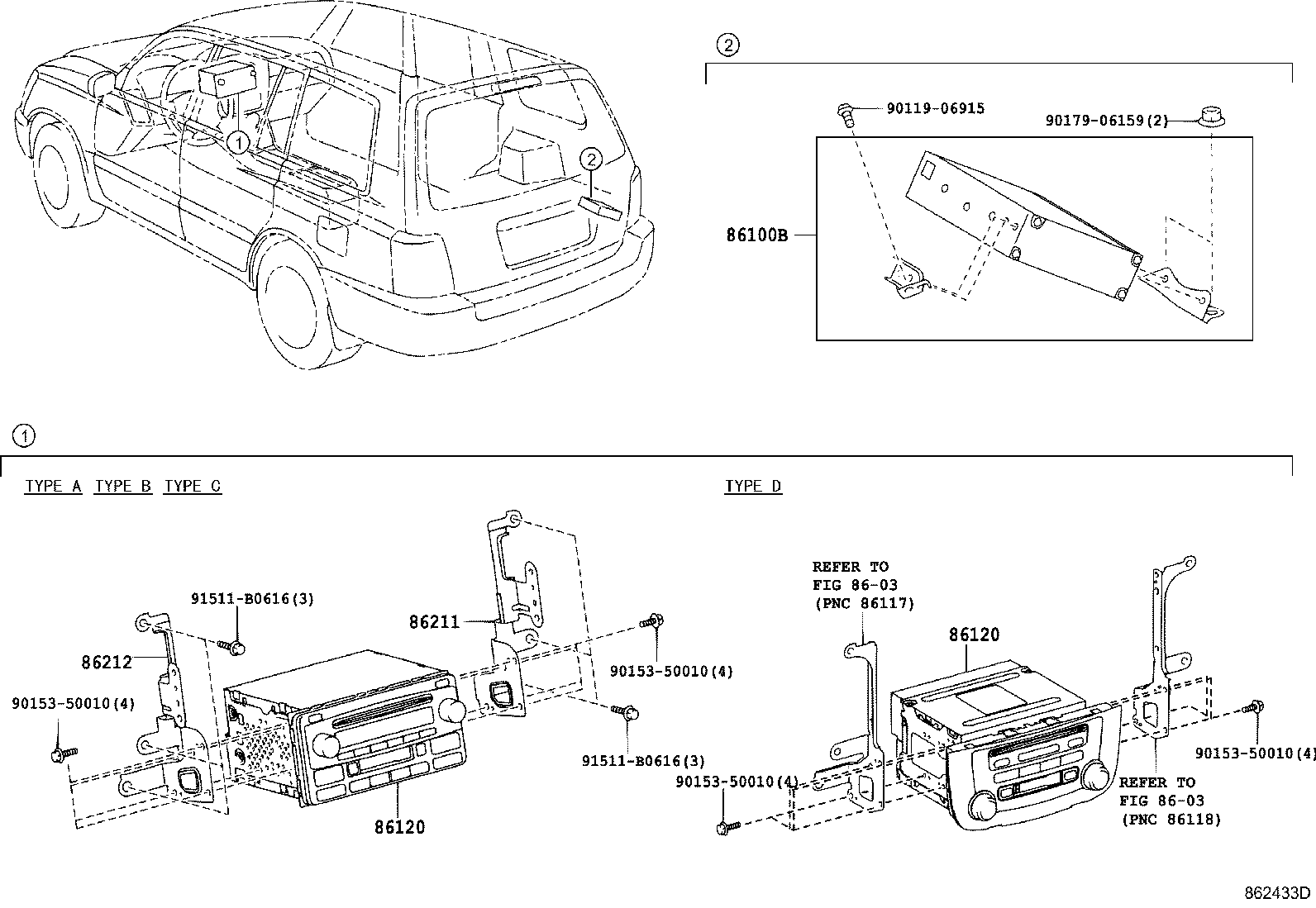

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86100B — Amplifier Assy | ||||
| 86100-0W040 note |
Amplifier Assy
2005-03 → —
|
MHU2# | — | |
| 86100-0W040 note |
Amplifier Assy
2005-03 → —
|
MHU2# | — | |
| 86100-0W050 note |
Amplifier Assy
2005-03 → —
|
MHU2# | — | |
| 86100-0W050 note |
Amplifier Assy
2005-03 → —
|
MHU2# | — | |
| 86120 — Receiver Assy, Radio | ||||
| 86120-48430 note |
Receiver Assy, Radio
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86120-48480 note |
Receiver Assy, Radio
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86120-48500 note |
Receiver Assy, Radio
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86120-52241 note |
Receiver Assy, Radio
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86120-48430 note |
Receiver Assy, Radio
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86120-48480 note |
Receiver Assy, Radio
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86120-48500 note |
Receiver Assy, Radio
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86120-52241 note |
Receiver Assy, Radio
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-48040 |
Bracket, Radio, NO.1
2005-03 → —
|
MHU2# | — | |
| 86211-48040 note |
Bracket, Radio, NO.1
2005-03 → —
|
MHU2# | — | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-48040 |
Bracket, Radio, NO.2
2005-03 → —
|
MHU2# | — | |
| 86212-48040 note |
Bracket, Radio, NO.2
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
