Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

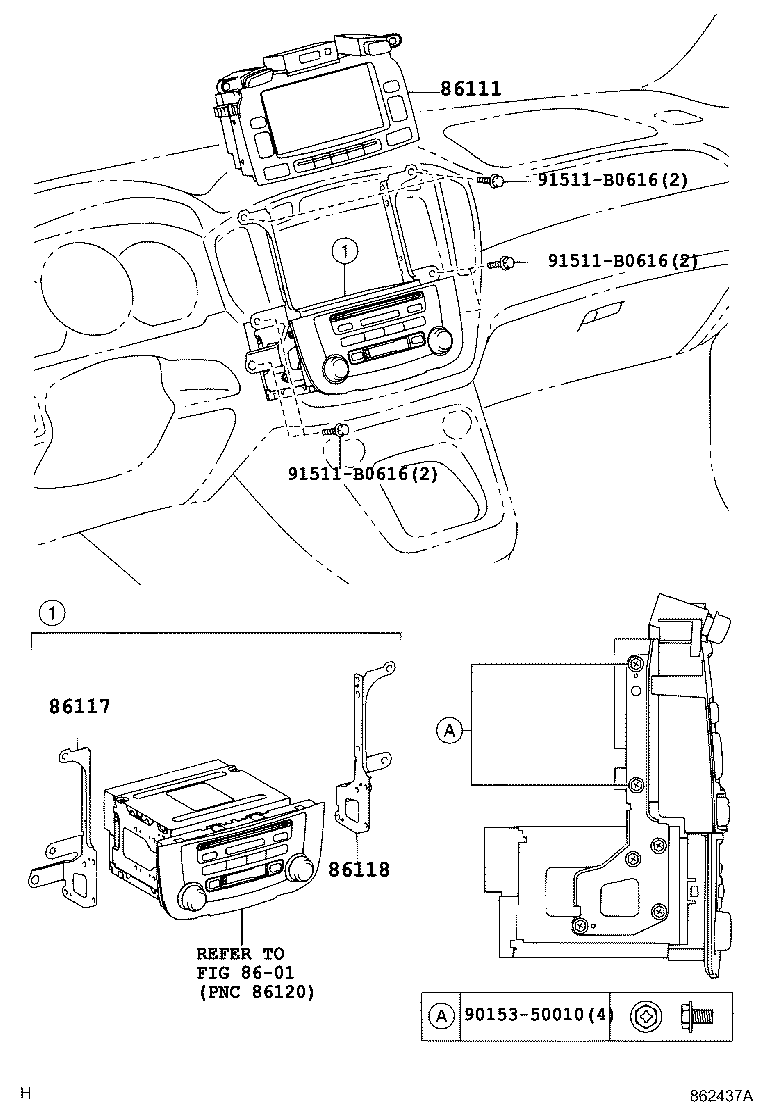

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86111 — Multi-display | ||||
| 86111-48090 note |
Multi-display
2005-03 → 2007-05
ended
|
MHU23 | — | |
| 86111-48100 note |
Multi-display
2005-03 → 2007-05
ended
|
MHU28 | — | |
| 86117 — Bracket, Multi-display Controller, A | ||||
| 86117-48050 note |
Bracket, Multi-display Controller, A
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86118 — Bracket, Multi-display Controler, B | ||||
| 86118-48040 note |
Bracket, Multi-display Controler, B
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
