Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

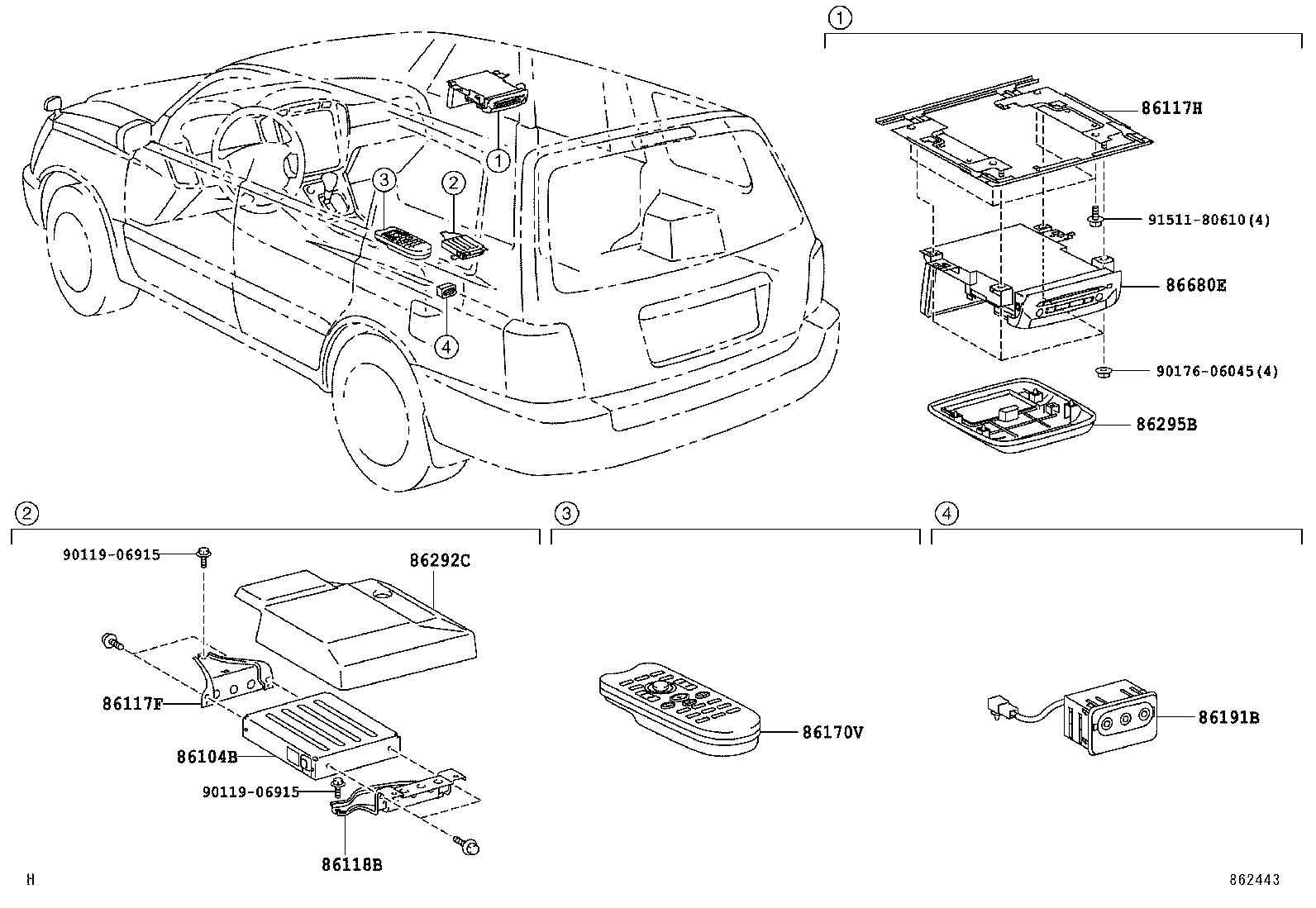

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86104B — Controller Sub-assy, Multi-display | ||||
| 86104-48010 note |
Controller Sub-assy, Multi-display
2005-03 → —
|
MHU2# | — | |
| 86117F — Bracket, Multi-display Controller, A | ||||
| 86117-48090 note |
Bracket, Multi-display Controller, A
2005-03 → —
|
MHU2# | — | |
| 86117H — Bracket, Multi-display Controller, A | ||||
| 86117-48040 note |
Bracket, Multi-display Controller, A
2005-03 → —
|
MHU2# | — | |
| 86118B — Bracket, Multi-display Controller, B | ||||
| 86118-48070 note |
Bracket, Multi-display Controller, B
2005-03 → —
|
MHU2# | — | |
| 86170V — Controller Assy, Remote | ||||
| 86170-45010 note |
Controller Assy, Remote
2005-03 → —
|
MHU2# | — | |
| 86191B — Terminal, Video(VIDEO ADAPTER) | ||||
| 86191-48020 note |
Terminal, Video(VIDEO ADAPTER)
2005-03 → —
|
MHU2# | — | |
| 86292C — Cover, Television Set | ||||
| 86292-48010-A0 note |
Cover, Television Set
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86292-48010-B0 note |
Cover, Television Set
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86295B — Base, Television | ||||
| 86295-48010-A0 note |
Base, Television
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86295-48010-B1 note |
Base, Television
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86680E — Display Assy, Television | ||||
| 86680-48020-A0 note |
Display Assy, Television
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86680-48020-B0 note |
Display Assy, Television
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
