Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

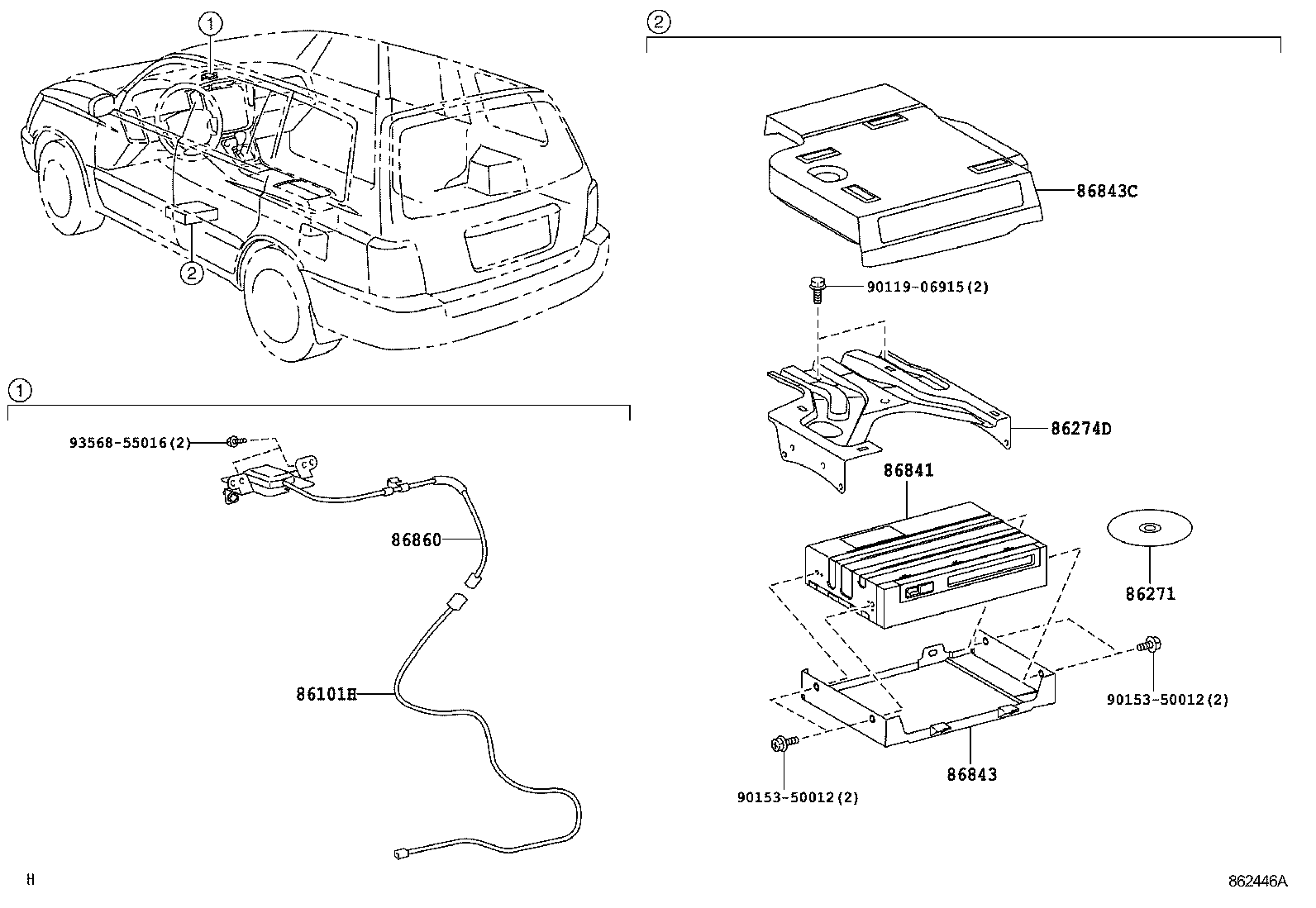

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101H — Cord Sub-assy, Antenna | ||||
| 86101-48530 note |
Cord Sub-assy, Antenna
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86271 — Disc, Disc Player | ||||
| 86271-33044 note |
Disc, Disc Player
2005-03 → 2005-06
ended
|
MHU2# | — | |
| 86271-33045 note |
Disc, Disc Player
2005-06 → 2006-08
ended
|
MHU2# | — | |
| 86271-33046 note |
Disc, Disc Player
2006-08 → —
|
MHU2# | — | |
| 86274D — Bracket, Disc Player | ||||
| 86274-48120 note |
Bracket, Disc Player
2005-03 → 2005-05
ended
|
MHU2# | — | |
| 86274-48120 note |
Bracket, Disc Player
2005-06 → 2006-07
ended
|
MHU2# | — | |
| 86274-48120 note |
Bracket, Disc Player
2006-08 → —
|
MHU2# | — | |
| 86841 — Computer, Navigation | ||||
| 86841-50090 note |
Computer, Navigation
2005-03 → —
|
MHU2# | — | |
| 86843 — Cover, Navigation Computer | ||||
| 86804-48020 note |
Cover, Navigation Computer
2005-03 → 2005-05
ended
|
MHU2# | — | |
| 86804-48020 note |
Cover, Navigation Computer
2005-06 → 2006-07
ended
|
MHU2# | — | |
| 86804-48020 note |
Cover, Navigation Computer
2006-08 → —
|
MHU2# | — | |
| 86843C — Cover, Navigation Computer | ||||
| 86804-48010-A0 note |
Cover, Navigation Computer
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86804-48010-B0 note |
Cover, Navigation Computer
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-48070 note |
Antenna Assy, Navigation
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
