Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

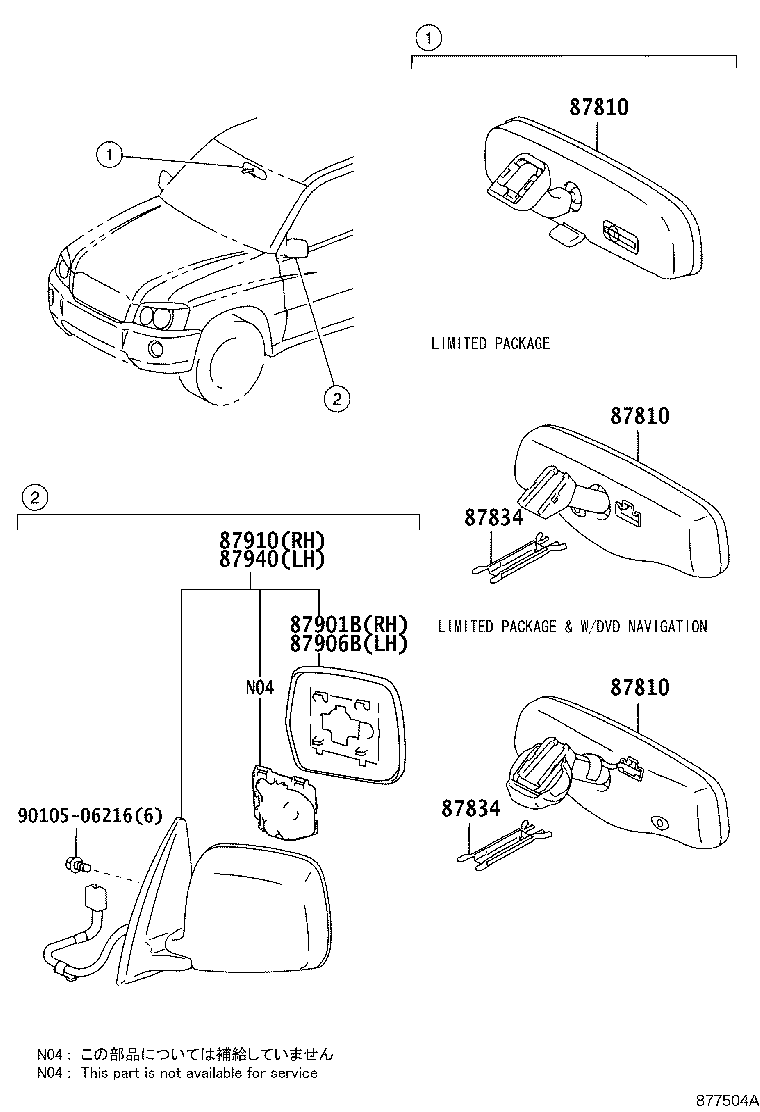

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-0E010 note |
Mirror Assy, Inner Rear View
2005-03 → 2005-11
ended
|
MHU2# 05S | — | |
| 87810-0E010 note |
Mirror Assy, Inner Rear View
2005-03 → 2006-07
ended
|
MHU2# 07S | — | |
| 87810-0E010 note |
Mirror Assy, Inner Rear View
2005-11 → 2006-07
ended
|
MHU2# 05S | — | |
| 87810-0W120 note |
Mirror Assy, Inner Rear View
2006-08 → 2006-09
ended
|
MHU2# | — | |
| 87810-0W121 note |
Mirror Assy, Inner Rear View
2006-10 → —
|
MHU2# | — | |
| 87810-0W130 note |
Mirror Assy, Inner Rear View
2006-08 → —
|
MHU2# | — | |
| 87810-60190 |
Mirror Assy, Inner Rear View
2005-03 → 2006-10
ended
|
MHU2# | — | |
| 87810-60191 |
Mirror Assy, Inner Rear View
2006-11 → —
|
MHU2# | — | |
| 87810-AE010 note |
Mirror Assy, Inner Rear View
2005-03 → 2005-11
ended
|
MHU2# 05S | — | |
| 87810-AE010 note |
Mirror Assy, Inner Rear View
2005-11 → 2006-07
ended
|
MHU2# 05S | — | |
| 87810-AE010 note |
Mirror Assy, Inner Rear View
2005-03 → 2006-07
ended
|
MHU2# 07S | — | |
| 87834 — Cover, Inner Rear View Mirror Stay Holder | ||||
| 87818-AC010 note |
Cover, Inner Rear View Mirror Stay Holder
2005-03 → 2005-11
ended
|
MHU2# 05S | — | |
| 87818-AC010 note |
Cover, Inner Rear View Mirror Stay Holder
2005-03 → 2005-11
ended
|
MHU2# 05S | — | |
| 87818-AC010 note |
Cover, Inner Rear View Mirror Stay Holder
2005-03 → —
|
MHU2# 07S | — | |
| 87818-AC010 note |
Cover, Inner Rear View Mirror Stay Holder
2005-03 → —
|
MHU2# 07S | — | |
| 87818-AC010 note |
Cover, Inner Rear View Mirror Stay Holder
2005-11 → —
|
MHU2# 05S | — | |
| 87818-AC010 note |
Cover, Inner Rear View Mirror Stay Holder
2005-11 → —
|
MHU2# 05S | — | |
| 87901B — Mirror Sub-assy, Outer Rear View, RH | ||||
| 87931-48150 |
Mirror Sub-assy, Outer Rear View, RH
2005-03 → —
|
MHU2# | — | |
| 87931-48160 note |
Mirror Sub-assy, Outer Rear View, RH
2005-03 → —
|
MHU2# | — | |
| 87906B — Mirror Sub-assy, Outer Rear View, LH | ||||
| 87961-48150 |
Mirror Sub-assy, Outer Rear View, LH
2005-03 → —
|
MHU2# | — | |
| 87961-48160 note |
Mirror Sub-assy, Outer Rear View, LH
2005-03 → —
|
MHU2# | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-48150-A0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48150-B0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48150-C0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48150-E0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48150-G1 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48150-J0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48160-A0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48160-B0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48160-C0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48160-E0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48160-G1 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87910-48160-J0 note |
Mirror Assy, Outer Rear View, RH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-48150-A0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48150-B0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48150-C0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48150-E0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48150-G1 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48150-J0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48160-A0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48160-B0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48160-C0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48160-E0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48160-G1 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 87940-48160-J0 note |
Mirror Assy, Outer Rear View, LH
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
