Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

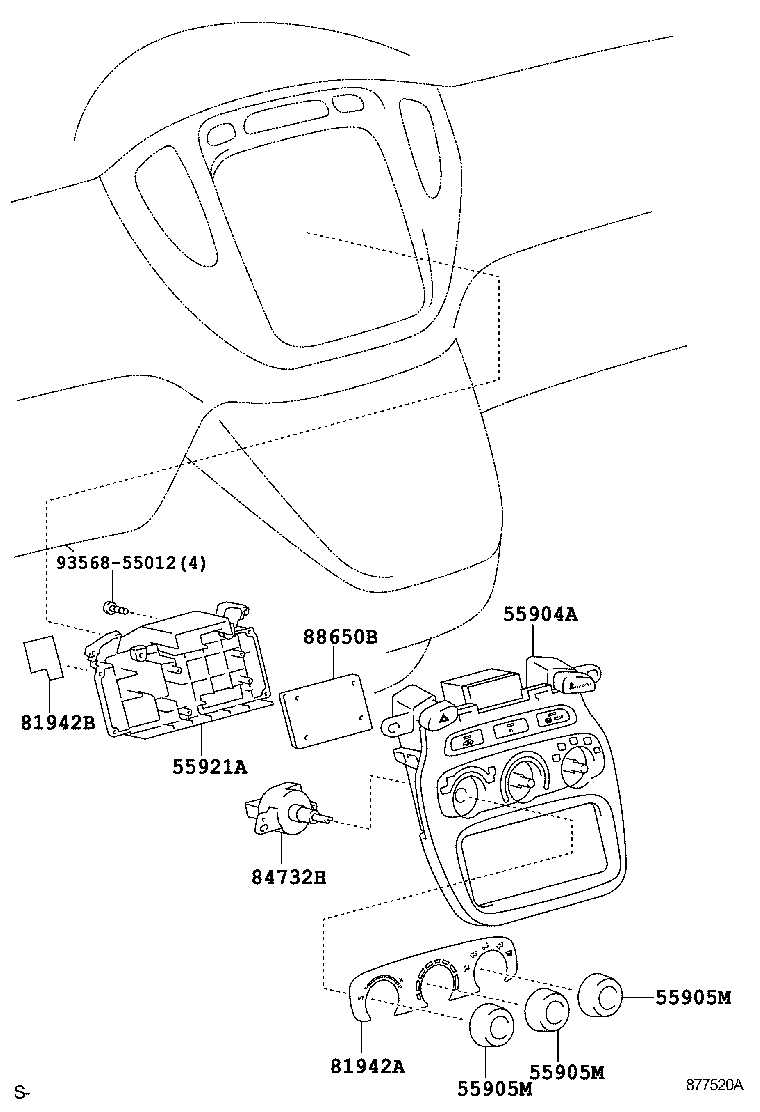

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55904A — Housing Sub-assy, Heater Control | ||||
| 55904-48110 |
Housing Sub-assy, Heater Control
2005-03 → —
|
MHU2# | — | |
| 55904-48180 note |
Housing Sub-assy, Heater Control
2005-03 → —
|
MHU2# | — | |
| 55905M — Knob Sub-assy, Control | ||||
| 55905-48010 note |
Knob Sub-assy, Control
2005-03 → —
|
MHU2# | — | |
| 55905-48020 |
Knob Sub-assy, Control
2005-03 → —
|
MHU2# | — | |
| 55921A — Retainer, Heater Control | ||||
| 55921-48011 note |
Retainer, Heater Control
2005-03 → —
|
MHU2# | — | |
| 55921-48021 |
Retainer, Heater Control
2005-03 → —
|
MHU2# | — | |
| 81942A — Sheet, Heater Control Name, NO.1 | ||||
| 81942-48010 |
Sheet, Heater Control Name, NO.1
2005-03 → —
|
MHU2# | — | |
| 81942B — Sheet, Heater Control Name, NO.2 | ||||
| 81941-48010 |
Sheet, Heater Control Name, NO.2
2005-03 → —
|
MHU2# | — | |
| 84732H — Switch, Heater Blower | ||||
| 84732-48010 |
Switch, Heater Blower
2005-03 → —
|
MHU2# | — | |
| 88650B — Amplifier Assy, Airconditioner | ||||
| 88650-48161 note |
Amplifier Assy, Airconditioner
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 88650-48171 |
Amplifier Assy, Airconditioner
2005-03 → 2007-05
ended
|
MHU2# | — | |
| 88650-48180 note |
Amplifier Assy, Airconditioner
2005-03 → 2007-05
ended
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
