Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

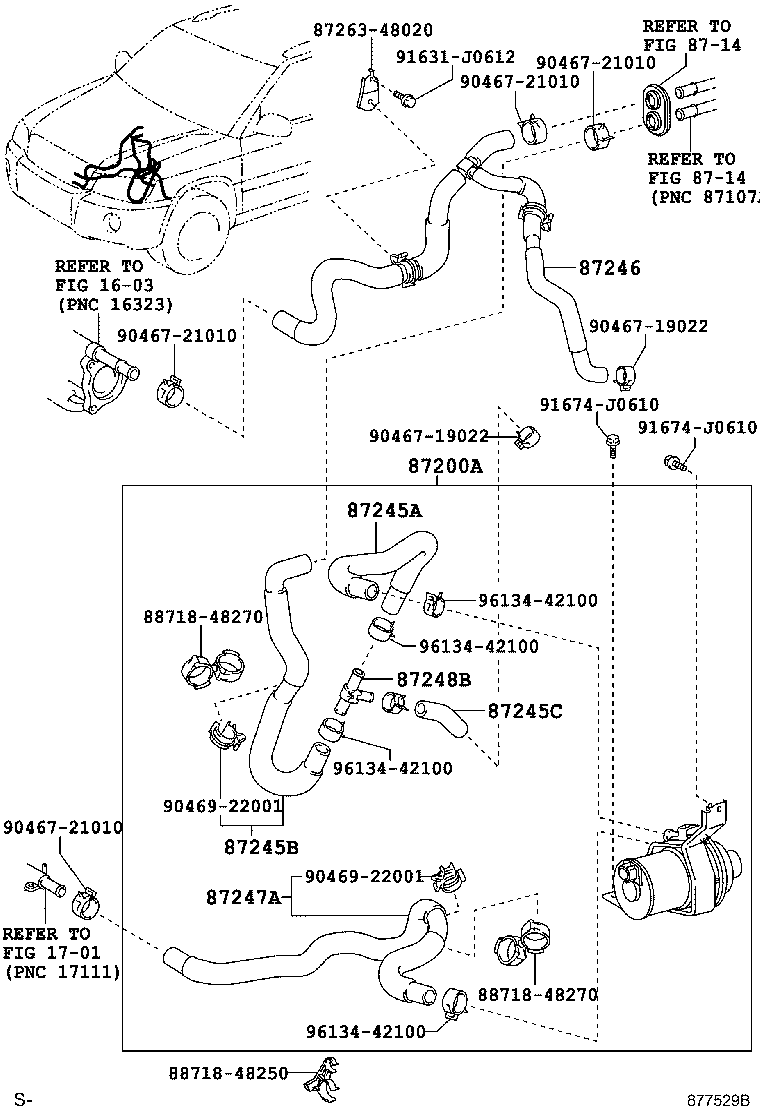

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87200A — Pump Assy, Water(FOR HEATER) | ||||
| 87200-48020 |
Pump Assy, Water(FOR HEATER)
2005-03 → —
|
MHU2# | — | |
| 87200-48050 note |
Pump Assy, Water(FOR HEATER)
2005-03 → —
|
MHU2# 07S | — | |
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87245-48870 note |
Hose, Heater Water, Inlet A
2005-03 → —
|
MHU2# 07S | — | |
| 87245B — Hose, Heater Water, Inlet B | ||||
| 87245-48860 note |
Hose, Heater Water, Inlet B
2005-03 → —
|
MHU2# 07S | — | |
| 87245C — Hose, Heater Water ,Inlet C | ||||
| 87245-48880 note |
Hose, Heater Water ,Inlet C
2005-03 → —
|
MHU2# 07S | — | |
| 87246 — Hose, Heater Water, Outlet | ||||
| 87209-48120 note |
Hose, Heater Water, Outlet
2005-03 → —
|
MHU2# 07S | — | |
| 87247A — Hose, Heater Water, A | ||||
| 87245-48A20 |
Hose, Heater Water, A
2005-03 → —
|
MHU2# | — | |
| 87245-48A20 note |
Hose, Heater Water, A
2005-03 → —
|
MHU2# 07S | — | |
| 87248B — Pipe, Heater Water Inlet, B | ||||
| 87248-28040 note |
Pipe, Heater Water Inlet, B
2005-03 → —
|
MHU2# 07S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
