Toyota Highlander HV
2005-03 → 2007-05 · chassis MHU2# · catalogue 525410 · United States
Supported model
Data version 2007-10

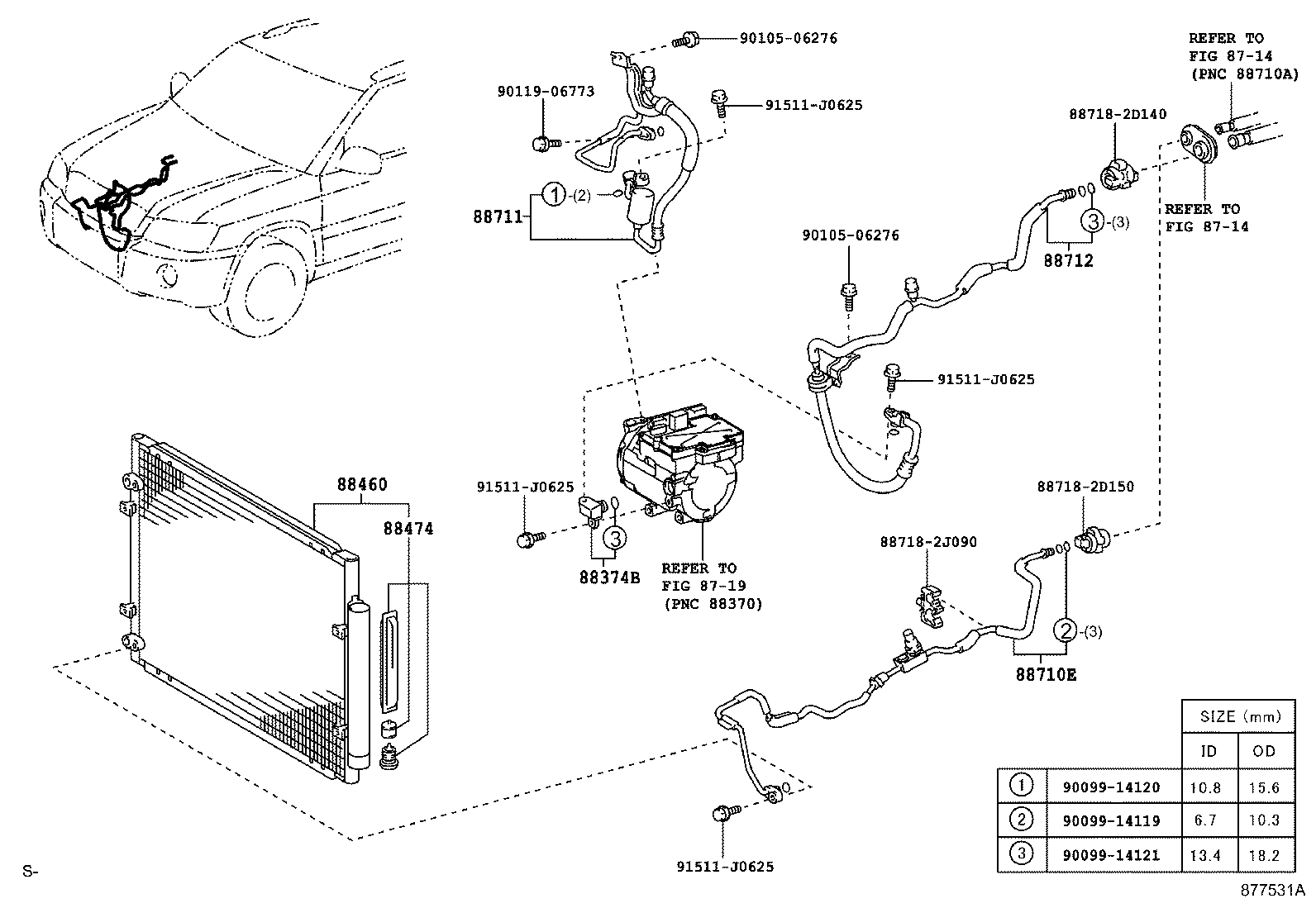

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-48010 |
Valve, Service, NO.1
2005-03 → —
|
MHU2# | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-48060 |
Condenser Assy, Cooler
2005-03 → 2006-09
ended
|
MHU2# | — | |
| 88460-48061 |
Condenser Assy, Cooler
2006-10 → 2007-05
ended
|
MHU2# | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-47020 |
Dryer, Cooler
2005-03 → —
|
MHU2# | — | |
| 88710E — Tube & Accessory Assy, Air Conditioner | ||||
| 88710-48190 |
Tube & Accessory Assy, Air Conditioner
2005-03 → —
|
MHU2# | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88703-48100 |
Hose, Cooler Refrigerant Discharge, NO.1
2005-03 → —
|
MHU2# | — | |
| 88712 — Hose, Cooler Refrigerant Suction, NO.1 | ||||
| 88704-48070 |
Hose, Cooler Refrigerant Suction, NO.1
2005-03 → —
|
MHU2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
