Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

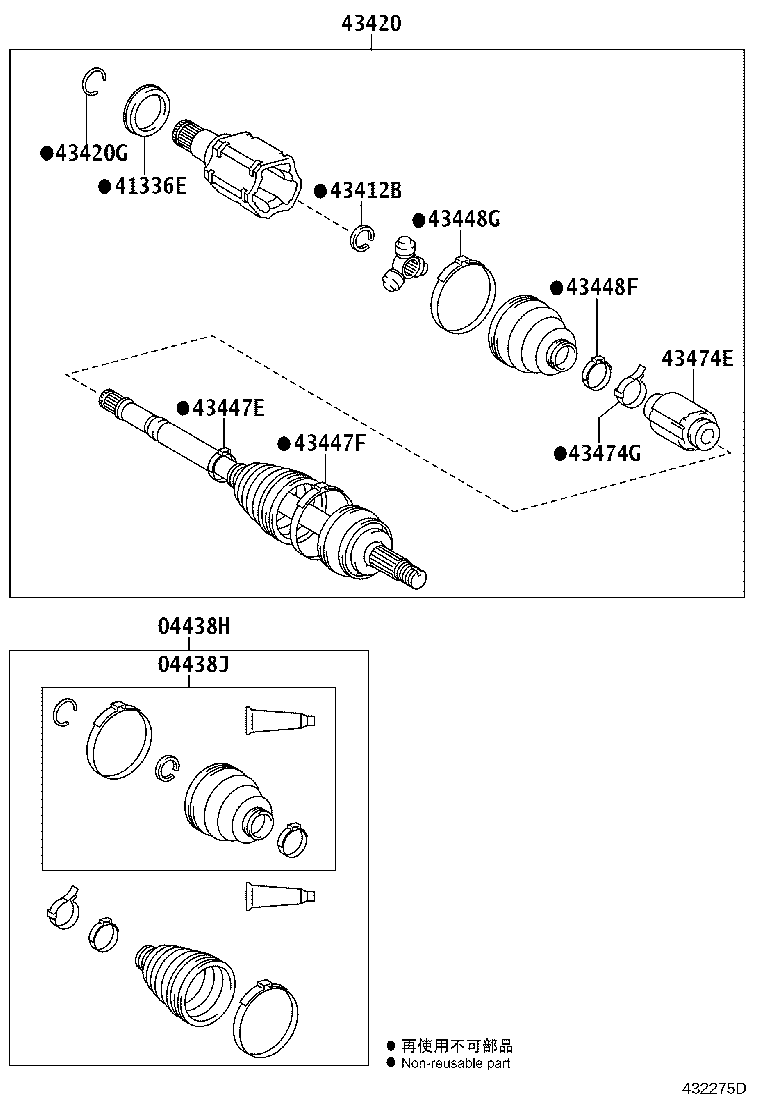

Exploded illustration 432275D 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (6 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (2 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (4 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (6 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (6 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (6 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (4 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (4 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (6 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (6 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (6 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (6 parts)
432275D · 12 callouts Full size ↗
62 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-0T030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-10 → 2010-08 ended
ASU40 —
04427-0W060 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-10 → 2010-08 ended
GSU45 —
04428-0E060 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-10 → 2010-08 ended
GSU40 —
04427-0T030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-08 → —
ASU40 —
04427-0W060 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-08 → —
GSU45 —
04428-0E060 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-08 → —
GSU40 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-0T030 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-10 → 2010-08 ended
ASU40 —
04437-0W060 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-10 → 2010-08 ended
GSU45 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-10 → 2010-08 ended
GSU40 —
04437-0T030 Boot Kit, Front Drive Shaft Inboard Joint, LH
2010-08 → —
ASU40 —
04437-0W060 Boot Kit, Front Drive Shaft Inboard Joint, LH
2010-08 → —
GSU45 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2010-08 → —
GSU40 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-06060 Cover, Front Drive Shaft Dust, LH
2009-10 → 2010-08 ended
ASU40 —
41336-07010 Cover, Front Drive Shaft Dust, LH
2009-10 → 2010-08 ended
GSU40 —
41336-08010 Cover, Front Drive Shaft Dust, LH
2009-10 → 2010-08 ended
GSU45 —
41336-06060 Cover, Front Drive Shaft Dust, LH
2010-08 → —
ASU40 —
41336-07010 Cover, Front Drive Shaft Dust, LH
2010-08 → —
GSU40 —
41336-08010 Cover, Front Drive Shaft Dust, LH
2010-08 → —
GSU45 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-02010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-10 → 2010-08 ended
GSU45 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-10 → 2010-08 ended
ASU40,GSU40 —
43425-02010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2010-08 → —
GSU45 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2010-08 → —
ASU40,GSU40 —
43420 — Shaft Assy, Front Drive, LH
43420-0E070 Shaft Assy, Front Drive, LH
2009-10 → 2010-08 ended
GSU40 —
43420-0E080 Shaft Assy, Front Drive, LH
2009-10 → 2010-08 ended
GSU45 —
43420-0T020 Shaft Assy, Front Drive, LH
2009-10 → 2010-08 ended
ASU40 —
43420-0E070 Shaft Assy, Front Drive, LH
2010-08 → —
GSU40 —
43420-0E080 Shaft Assy, Front Drive, LH
2010-08 → —
GSU45 —
43420-0T020 Shaft Assy, Front Drive, LH
2010-08 → —
ASU40 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43425-08060 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2009-10 → 2010-08 ended
GSU45 —
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2009-10 → 2010-08 ended
ASU40,GSU40 —
43425-08060 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2010-08 → —
GSU45 —
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2010-08 → —
ASU40,GSU40 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
GSU40 —
42345-06090 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
GSU45 —
42345-06250 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
ASU40 —
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-08 → —
GSU40 —
42345-06090 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-08 → —
GSU45 —
42345-06250 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-08 → —
ASU40 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-04030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
ASU40 —
42345-06040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
GSU45 —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
GSU40 —
42345-04030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-08 → —
ASU40 —
42345-06040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-08 → —
GSU45 —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2010-08 → —
GSU40 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-05100 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
GSU45 —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
GSU40 —
42345-0T060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
ASU40 —
42345-05100 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-08 → —
GSU45 —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-08 → —
GSU40 —
42345-0T060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-08 → —
ASU40 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-02040 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
GSU45 —
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
GSU40 —
42345-0T050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → 2010-08 ended
ASU40 —
42345-02040 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-08 → —
GSU45 —
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-08 → —
GSU40 —
42345-0T050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2010-08 → —
ASU40 —
43474E — Damper, Front Drive Shaft, LH
43474-06090 Damper, Front Drive Shaft, LH
2009-10 → 2010-08 ended
ASU40 —
43474-0W040 Damper, Front Drive Shaft, LH
2009-10 → 2010-08 ended
GSU4# —
43474-06090 Damper, Front Drive Shaft, LH
2010-08 → —
ASU40 —
43474-0W040 Damper, Front Drive Shaft, LH
2010-08 → —
GSU4# —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2009-10 → 2010-08 ended
ASU40,GSU4# —
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2010-08 → —
ASU40,GSU4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
