Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

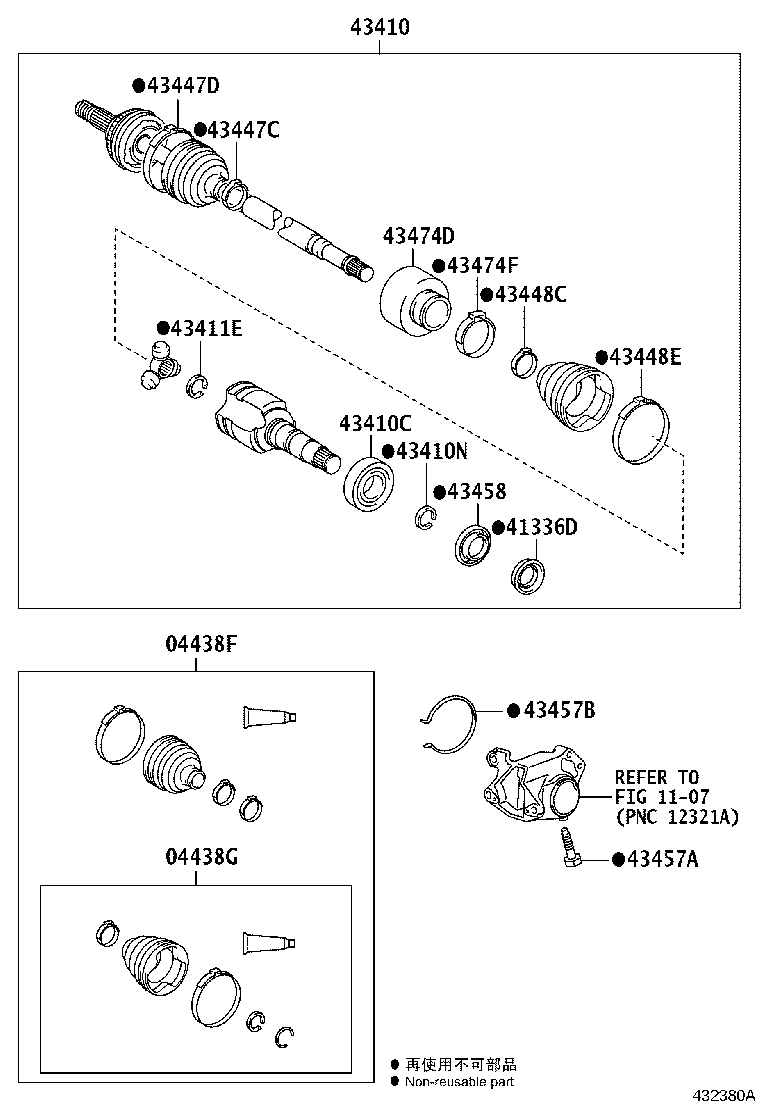

Exploded illustration 432380A 43410 — SHAFT ASSY, FRONT DRIVE, RH (6 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (6 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (4 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (6 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (6 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (6 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (2 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (2 parts) 1107 — not listed in this catalogue 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (2 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (2 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (2 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (4 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (4 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (2 parts)
432380A · 16 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-0T030 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-10 → 2010-08 ended
ASU40 —
04427-0W060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-10 → 2010-08 ended
GSU45 —
04428-0E060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-10 → 2010-08 ended
GSU40 —
04427-0T030 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-08 → —
ASU40 —
04427-0W060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-08 → —
GSU45 —
04428-0E060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-08 → —
GSU40 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-0T030 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-10 → 2010-08 ended
ASU40 —
04437-0W060 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-10 → 2010-08 ended
GSU45 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-10 → 2010-08 ended
GSU40 —
04437-0T030 Boot Kit, Front Drive Shaft Inboard Joint, RH
2010-08 → —
ASU40 —
04437-0W060 Boot Kit, Front Drive Shaft Inboard Joint, RH
2010-08 → —
GSU45 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RH
2010-08 → —
GSU40 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-06020 Cover, Front Drive Shaft Dust, RH
2009-10 → 2010-08 ended
ASU40,GSU40 —
41336-06020 Cover, Front Drive Shaft Dust, RH
2010-08 → —
ASU40,GSU40 —
43410 — Shaft Assy, Front Drive, RH
43410-0E080 Shaft Assy, Front Drive, RH
2009-10 → 2010-08 ended
GSU45 —
43410-0T010 Shaft Assy, Front Drive, RH
2009-10 → 2010-08 ended
GSU40 —
43410-0T020 Shaft Assy, Front Drive, RH
2009-10 → 2010-08 ended
ASU40 —
43410-0E080 Shaft Assy, Front Drive, RH
2010-08 → —
GSU45 —
43410-0T010 Shaft Assy, Front Drive, RH
2010-08 → —
GSU40 —
43410-0T020 Shaft Assy, Front Drive, RH
2010-08 → —
ASU40 —
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90080-36133 Bearing (FOR FRONT DRIVE SHAFT)
2009-10 → 2010-08 ended
ASU40,GSU40 —
90080-36133 Bearing (FOR FRONT DRIVE SHAFT)
2010-08 → —
ASU40,GSU40 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43425-08060 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2009-10 → 2010-08 ended
GSU45 —
90080-52013 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2009-10 → 2010-08 ended
ASU40,GSU40 —
43425-08060 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2010-08 → —
GSU45 —
90080-52013 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2010-08 → —
ASU40,GSU40 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-02010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2009-10 → 2010-08 ended
GSU45 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2009-10 → 2010-08 ended
ASU40,GSU40 —
43425-02010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2010-08 → —
GSU45 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2010-08 → —
ASU40,GSU40 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
ASU40,GSU40 —
42345-06090 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
GSU45 —
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-08 → —
ASU40,GSU40 —
42345-06090 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-08 → —
GSU45 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-06040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
GSU45 —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
ASU40,GSU40 —
42345-06040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-08 → —
GSU45 —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2010-08 → —
ASU40,GSU40 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-05100 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
GSU45 —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
GSU40 —
42345-0T060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
ASU40 —
42345-05100 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → —
GSU45 —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → —
GSU40 —
42345-0T060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → —
ASU40 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-02040 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
GSU45 —
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
GSU40 —
42345-0T050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-10 → 2010-08 ended
ASU40 —
42345-02040 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → —
GSU45 —
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → —
GSU40 —
42345-0T050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2010-08 → —
ASU40 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2009-10 → 2010-08 ended
ASU40,GSU40 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2010-08 → —
ASU40,GSU40 —
43457B — Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2009-10 → 2010-08 ended
ASU40,GSU40 —
90521-78002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2010-08 → —
ASU40,GSU40 —
43458 — Cover, Front Drive Shaft Dust
43458-06020 Cover, Front Drive Shaft Dust
2009-10 → 2010-08 ended
ASU40,GSU40 —
43458-08010 Cover, Front Drive Shaft Dust
2009-10 → 2010-08 ended
GSU45 —
43458-06020 Cover, Front Drive Shaft Dust
2010-08 → —
ASU40,GSU40 —
43458-08010 Cover, Front Drive Shaft Dust
2010-08 → —
GSU45 —
43474D — Damper, Front Drive Shaft, RH
43474-0W030 Damper, Front Drive Shaft, RH
2009-10 → 2010-08 ended
ASU40,GSU4# —
43474-0W030 Damper, Front Drive Shaft, RH
2010-08 → —
ASU40,GSU4# —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2009-10 → 2010-08 ended
ASU40,GSU4# —
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2010-08 → —
ASU40,GSU4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
