Toyota Highlander (NAP)
2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States
Supported model
Data version 2014-07

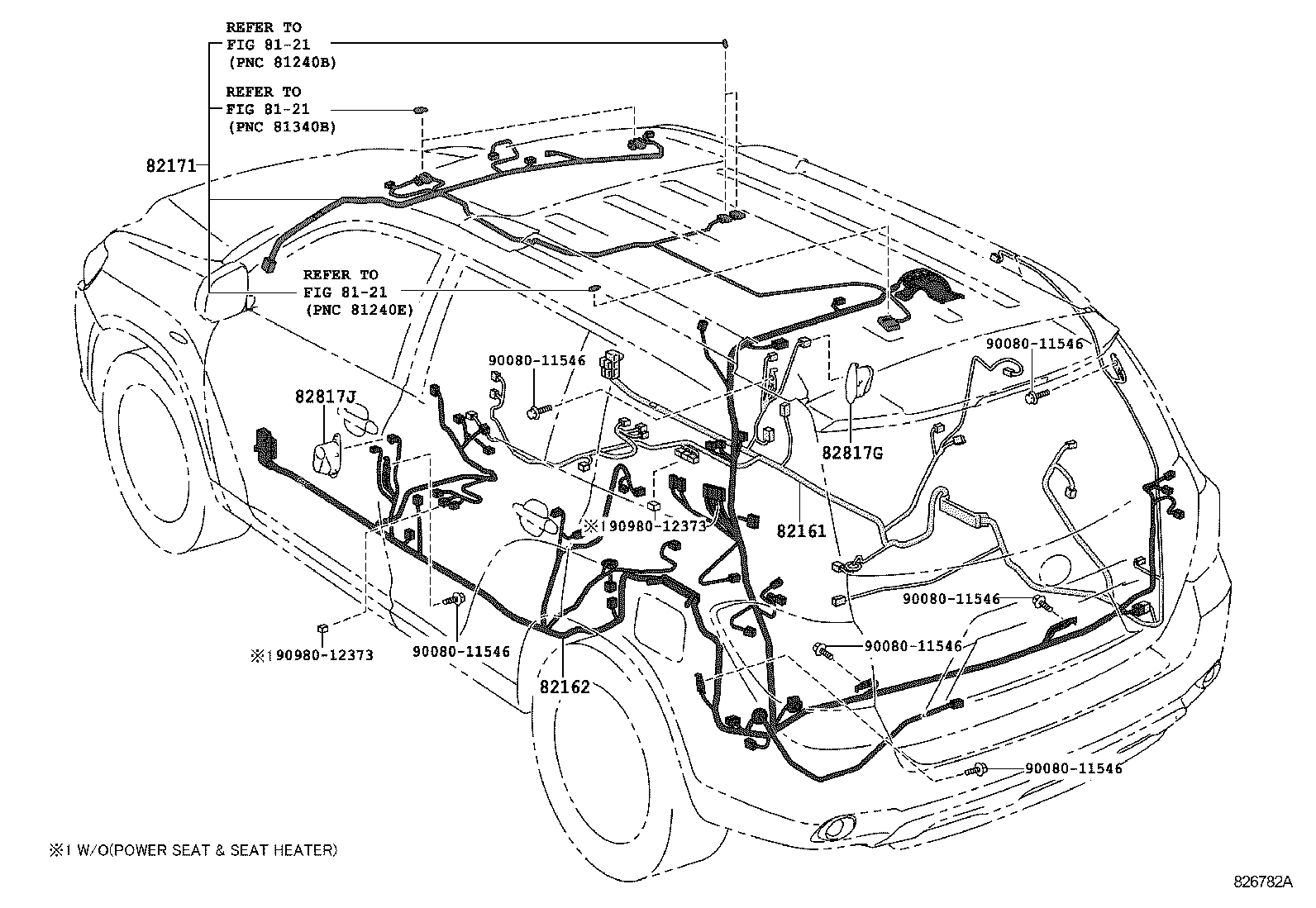

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82161 — Wire, Floor | ||||
| 82161-0E470 |
Wire, Floor
2009-10 → 2010-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E480 |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82161-0E480 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82161-0E490 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82161-0E490 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82161-0E490 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82161-0E500 note |
Wire, Floor
2009-10 → 2010-08
ended
|
ASU40,GSU4# M,SPO,STD | — | |
| 82161-0E500 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82161-0E500 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82161-0E510 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82161-0E510 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82161-0E510 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82161-0E510 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82161-0E510 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82161-0E520 |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82161-0E530 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82161-0E530 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82161-0E540 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82161-0E550 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82161-0E550 note |
Wire, Floor
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82161-0E580 |
Wire, Floor
2010-08 → —
|
ASU40,GSU4# STD | — | |
| 82161-0E590 note |
Wire, Floor
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E600 note |
Wire, Floor
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E600 note |
Wire, Floor
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E600 note |
Wire, Floor
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E600 note |
Wire, Floor
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82161-0E600 note |
Wire, Floor
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82161-0E610 note |
Wire, Floor
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E610 note |
Wire, Floor
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82161-0E610 note |
Wire, Floor
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82161-0E610 note |
Wire, Floor
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82161-0E610 note |
Wire, Floor
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82161-0E610 note |
Wire, Floor
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E610 note |
Wire, Floor
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E610 note |
Wire, Floor
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82161-0E620 |
Wire, Floor
2010-08 → 2012-08
ended
|
GSU4# LIMD | — | |
| 82161-0E620 note |
Wire, Floor
2012-08 → —
|
GSU4# LIMD | — | |
| 82161-0E630 note |
Wire, Floor
2010-08 → 2012-08
ended
|
GSU4# LIMD | — | |
| 82161-0E630 note |
Wire, Floor
2010-08 → 2012-08
ended
|
GSU4# LIMD | — | |
| 82161-0E630 |
Wire, Floor
2012-08 → —
|
GSU4# LIMD | — | |
| 82161-0EA90 note |
Wire, Floor
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82162 — Wire, Floor, NO.2 | ||||
| 82162-0E150 |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E160 note |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82162-0E160 note |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82162-0E160 |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82162-0E160 note |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E170 note |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82162-0E170 note |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82162-0E170 note |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82162-0E180 |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82162-0E190 note |
Wire, Floor, NO.2
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82162-0E210 |
Wire, Floor, NO.2
2010-08 → —
|
ASU40,GSU4# STD | — | |
| 82162-0E220 note |
Wire, Floor, NO.2
2011-01 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E220 note |
Wire, Floor, NO.2
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82162-0E220 note |
Wire, Floor, NO.2
2011-01 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E220 note |
Wire, Floor, NO.2
2011-01 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E220 note |
Wire, Floor, NO.2
2010-08 → 2011-01
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E220 note |
Wire, Floor, NO.2
2010-08 → 2011-01
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E220 note |
Wire, Floor, NO.2
2010-08 → 2011-01
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E230 note |
Wire, Floor, NO.2
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E230 note |
Wire, Floor, NO.2
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82162-0E230 note |
Wire, Floor, NO.2
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82162-0E230 note |
Wire, Floor, NO.2
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E230 note |
Wire, Floor, NO.2
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E230 note |
Wire, Floor, NO.2
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E240 note |
Wire, Floor, NO.2
2011-01 → 2012-08
ended
|
GSU4# LIMD | — | |
| 82162-0E240 note |
Wire, Floor, NO.2
2011-01 → 2012-08
ended
|
GSU4# LIMD | — | |
| 82162-0E240 |
Wire, Floor, NO.2
2010-08 → 2011-01
ended
|
GSU4# LIMD | — | |
| 82162-0E240 note |
Wire, Floor, NO.2
2011-01 → —
|
GSU4# LIMD | — | |
| 82162-0E240 note |
Wire, Floor, NO.2
2012-08 → —
|
GSU4# LIMD | — | |
| 82162-0E240 note |
Wire, Floor, NO.2
2012-08 → —
|
GSU4# LIMD | — | |
| 82162-0E300 note |
Wire, Floor, NO.2
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82162-0E300 note |
Wire, Floor, NO.2
2012-08 → —
|
ASU40,GSU4# STD | — | |
| 82162-0E300 note |
Wire, Floor, NO.2
2011-01 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E300 note |
Wire, Floor, NO.2
2011-01 → —
|
ASU40,GSU4# STD | — | |
| 82162-0E300 note |
Wire, Floor, NO.2
2011-01 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82162-0E310 |
Wire, Floor, NO.2
2011-01 → —
|
GSU4# LIMD | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-0E180 |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E190 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82171-0E190 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82171-0E190 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# M,SPO,STD | — | |
| 82171-0E200 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E200 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E210 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E220 |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82171-0E230 |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E240 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# M,SPO | — | |
| 82171-0E240 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82171-0E240 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# M,SPO,STD | — | |
| 82171-0E250 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82171-0E250 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# SPO | — | |
| 82171-0E250 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# SPO,STD | — | |
| 82171-0E260 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E260 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E270 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E270 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E280 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
ASU40,GSU4# M,SPO,STD | — | |
| 82171-0E280 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E290 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# STD | — | |
| 82171-0E290 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# SPO,STD | — | |
| 82171-0E300 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E310 note |
Wire, Roof, NO.1
2009-10 → 2010-08
ended
|
GSU4# LIMD | — | |
| 82171-0E340 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E340 |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E350 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E350 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E360 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E360 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E370 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E370 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E380 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E380 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E390 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E390 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E400 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E400 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E400 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E400 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E410 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E410 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E410 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E410 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E420 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E420 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E420 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E420 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2010-08 → 2013-12
ended
|
GSU4# LIMD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E430 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E440 note |
Wire, Roof, NO.1
2010-08 → 2012-07
ended
|
GSU4# LIMD | — | |
| 82171-0E440 note |
Wire, Roof, NO.1
2010-08 → 2012-07
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E440 note |
Wire, Roof, NO.1
2010-08 → 2012-07
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E441 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E441 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E441 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
GSU4# LIMD | — | |
| 82171-0E450 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E450 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 note |
Wire, Roof, NO.1
2010-08 → 2012-08
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E460 |
Wire, Roof, NO.1
2010-08 → 2013-12
ended
|
GSU4# LIMD | — | |
| 82171-0E470 note |
Wire, Roof, NO.1
2010-08 → 2012-07
ended
|
GSU4# LIMD | — | |
| 82171-0E470 note |
Wire, Roof, NO.1
2010-08 → 2012-07
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E470 note |
Wire, Roof, NO.1
2010-08 → 2012-07
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E471 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E471 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
GSU4# LIMD | — | |
| 82171-0E471 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E830 |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E840 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E850 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82171-0E860 note |
Wire, Roof, NO.1
2012-08 → 2013-12
ended
|
ASU40,GSU4# STD | — | |
| 82817G — Protector, Wiring Harness, NO.8 | ||||
| 82817-0E110 |
Protector, Wiring Harness, NO.8
2009-10 → 2010-08
ended
|
ASU40,GSU4# | — | |
| 82817-0E110 |
Protector, Wiring Harness, NO.8
2010-08 → —
|
ASU40,GSU4# | — | |
| 82817J — Protector, Wiring Harness, NO.9 | ||||
| 82817-0E110 |
Protector, Wiring Harness, NO.9
2009-10 → 2010-08
ended
|
ASU40,GSU4# | — | |
| 82817-0E110 |
Protector, Wiring Harness, NO.9
2010-08 → —
|
ASU40,GSU4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
