Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

8 part groups · 2 illustrations

Illustrations

Figure 164058D

164058D 2009-10 → —

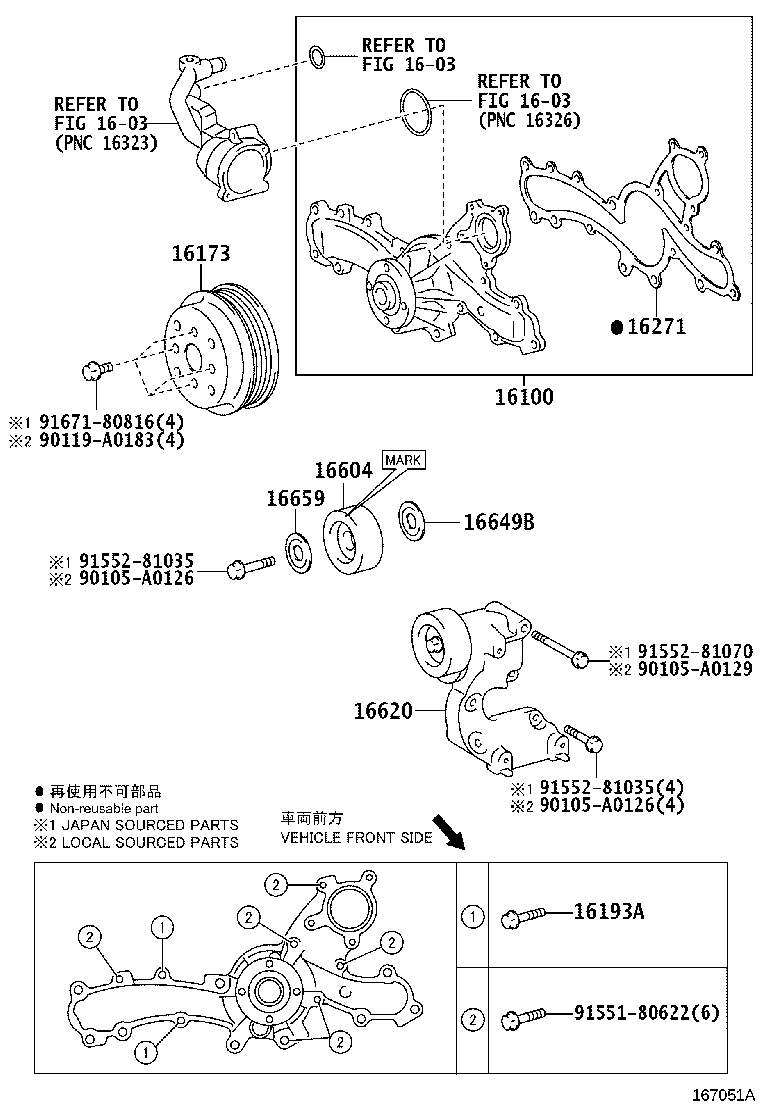

Figure 167051A

167051A 2009-10 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
