Toyota Highlander (NAP)
2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States
Supported model
Data version 2014-07

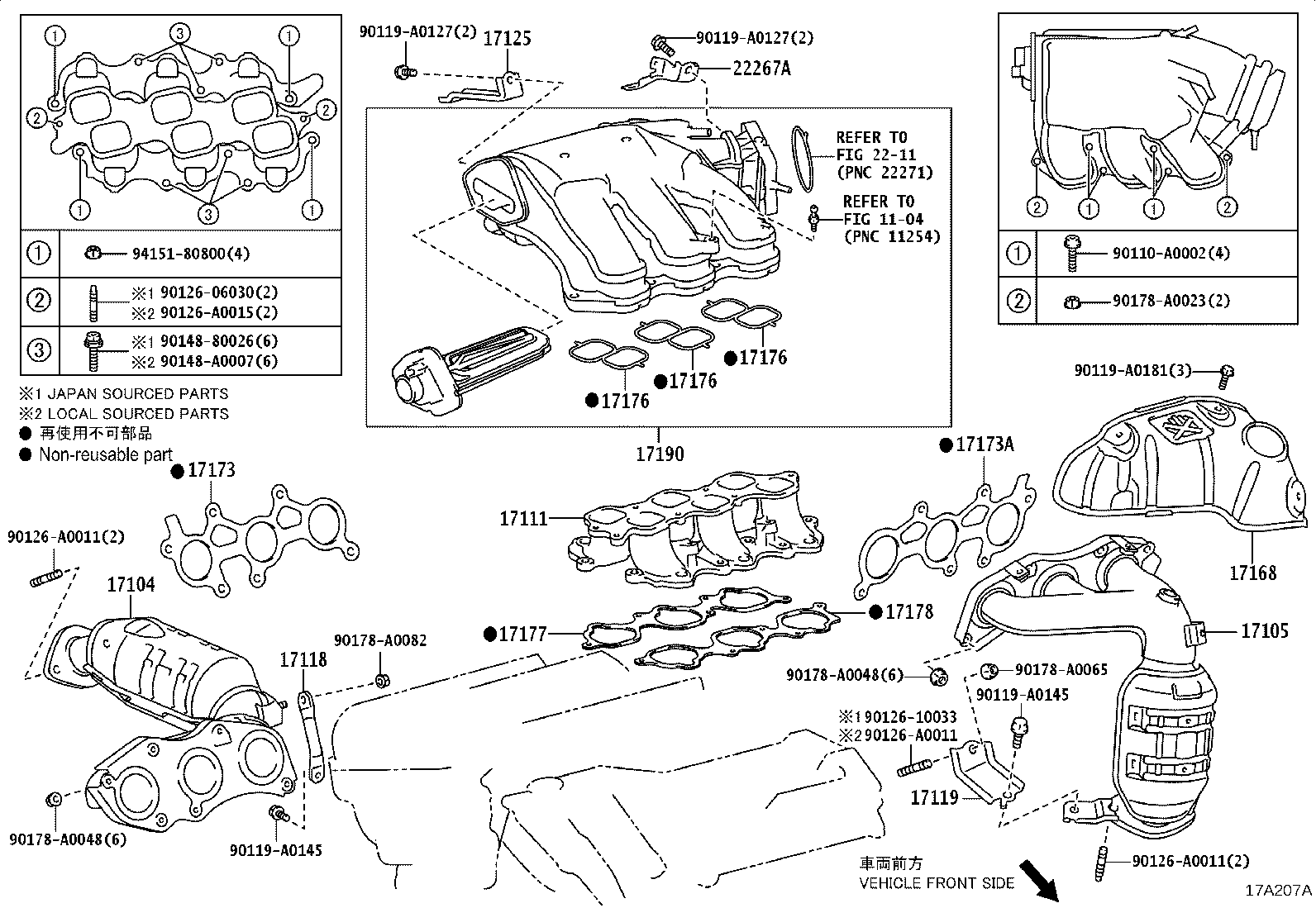

Manifold
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17104 | Manifold Sub-assy, Exhaust, RH |
| 17105 | Manifold Sub-assy, Exhaust, LH |
| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17139 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17148 | Plate, Exhaust Manifold(FOR EGR INLET) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17171 | Gasket, Intake TO Exhaust Manifold |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17173A | Gasket, Exhaust Manifold TO Head, LH |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17178 | Gasket, Intake Manifold TO Head, NO.2 |
| 17190 | Tank Assy, Intake Air Surge |
| 17335 | Actuator, Intake Air Control Valve |
| 22267A | Bracket, Throttle Body |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
