Toyota Highlander (NAP)
2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States
Supported model
Data version 2014-07

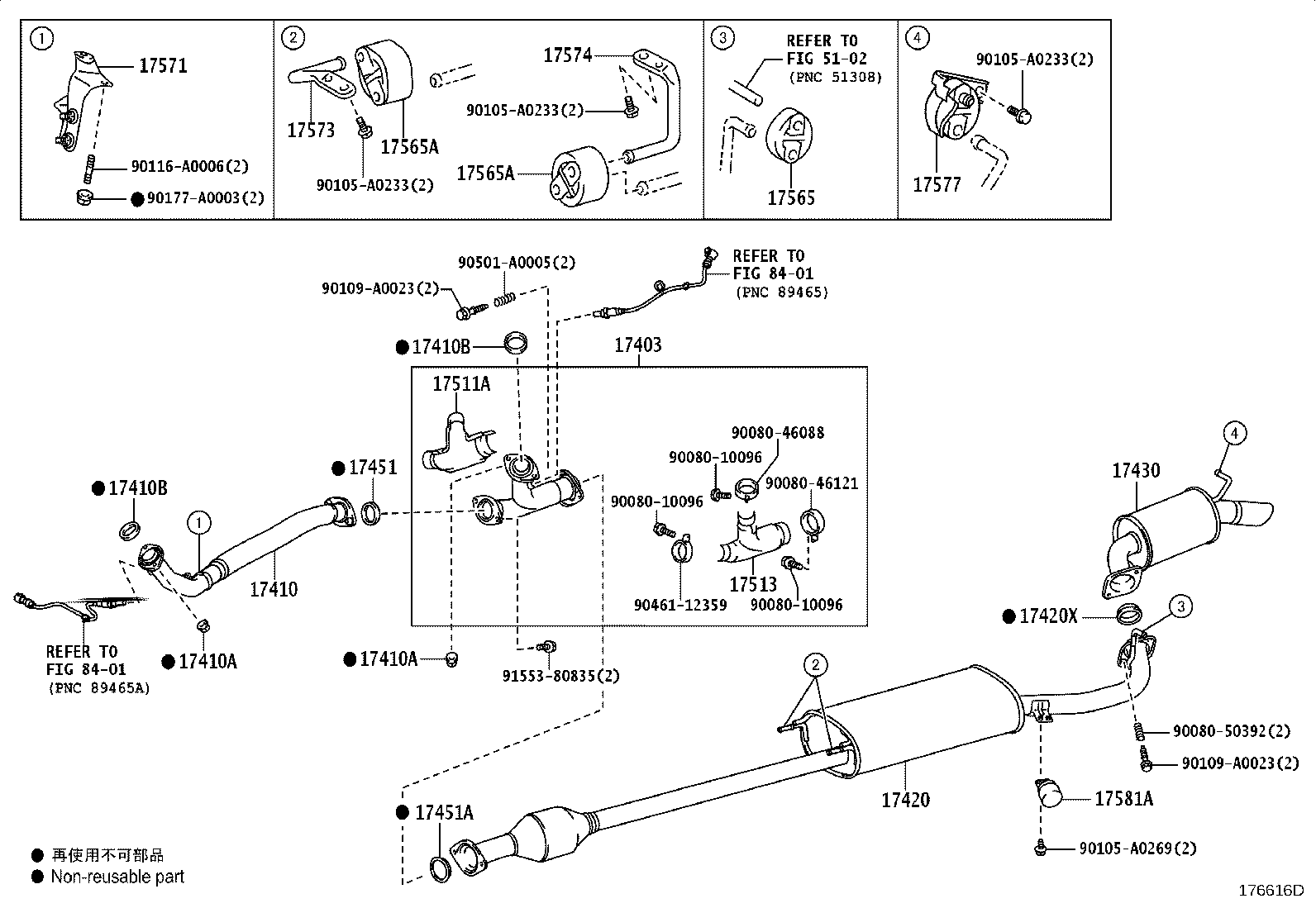

Exhaust Pipe
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17403 | Pipe Sub-assy, Exhaust, Front NO.3 |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17511A | Insulator, Exhaust Pipe, Upper NO.1 |
| 17513 | Insulator, Exhaust Pipe, Lower NO.1 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17573 | Bracket, Exhaust Pipe NO.1 Support, Lower |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17577 | Bracket, Exhaust Pipe Support, NO.7 |
| 17581A | Damper, Exhaust Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
