Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

19 part groups · 2 illustrations

Illustrations

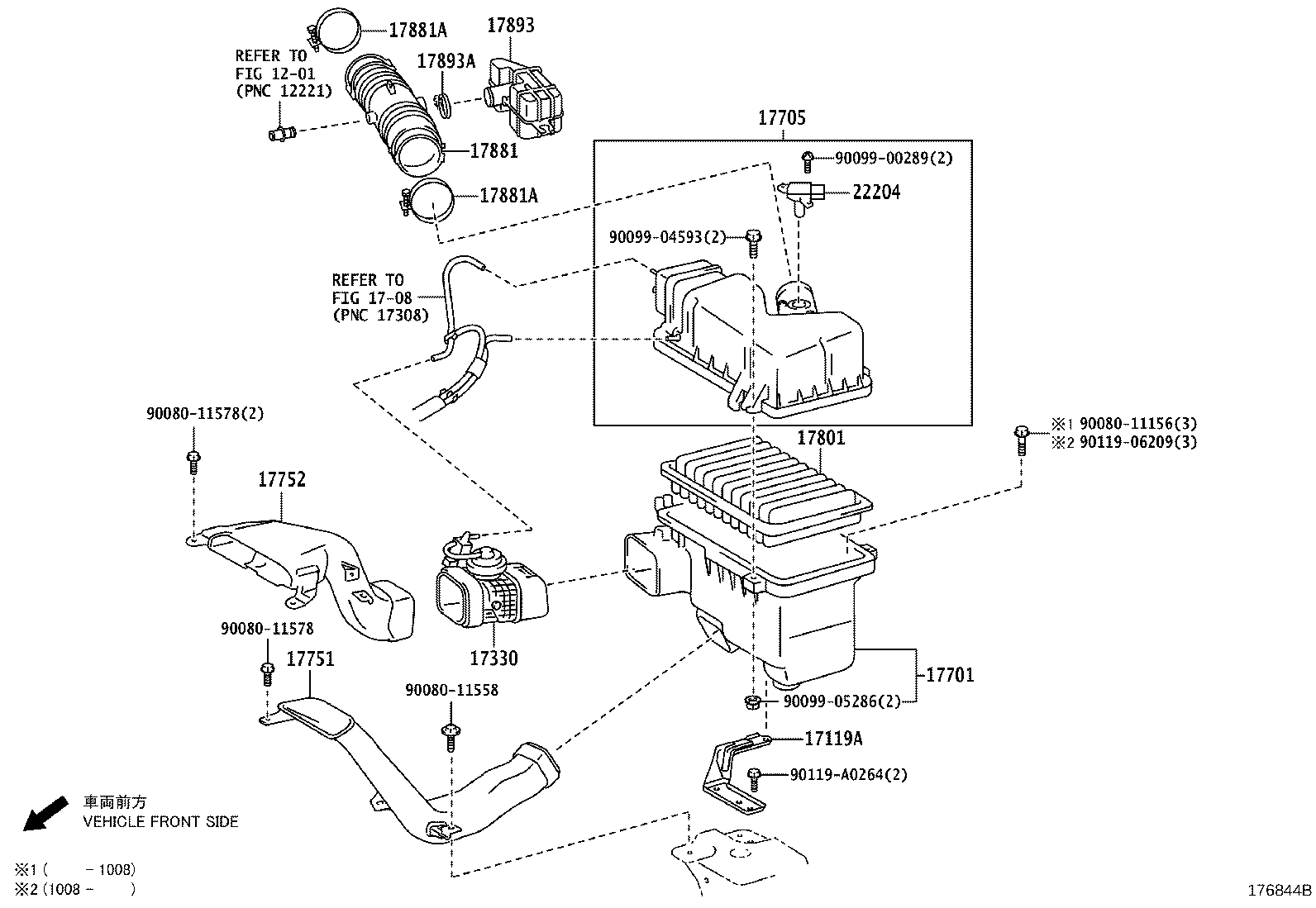

Figure 176634H 176634H 2009-10 → — Figure 176844B 176844B 2009-10 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17330 Valve Assy, Intake Air Control, NO.3
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17878B Tube, Ventilation
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
