Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

14 part groups · 6 illustrations

Illustrations

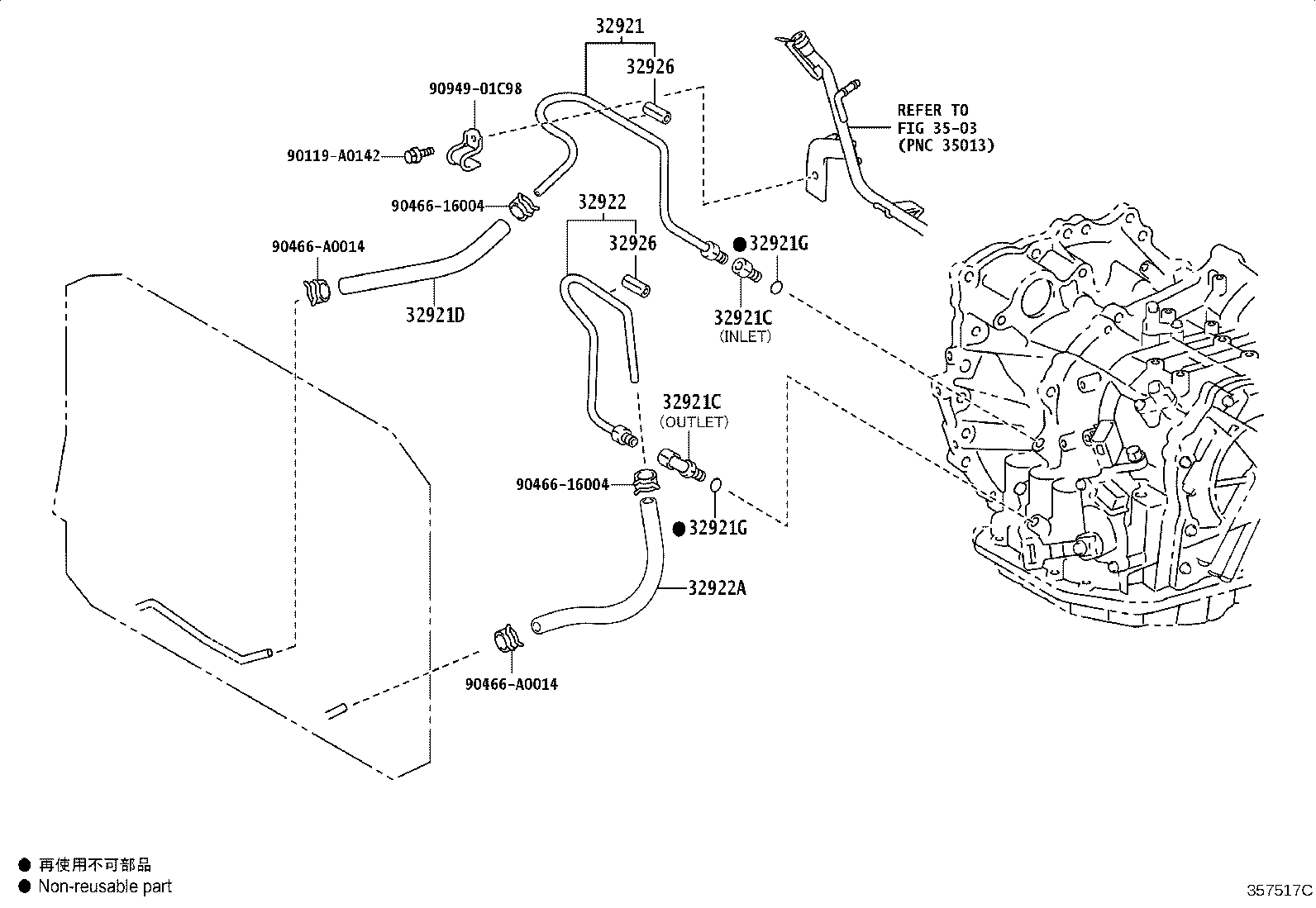

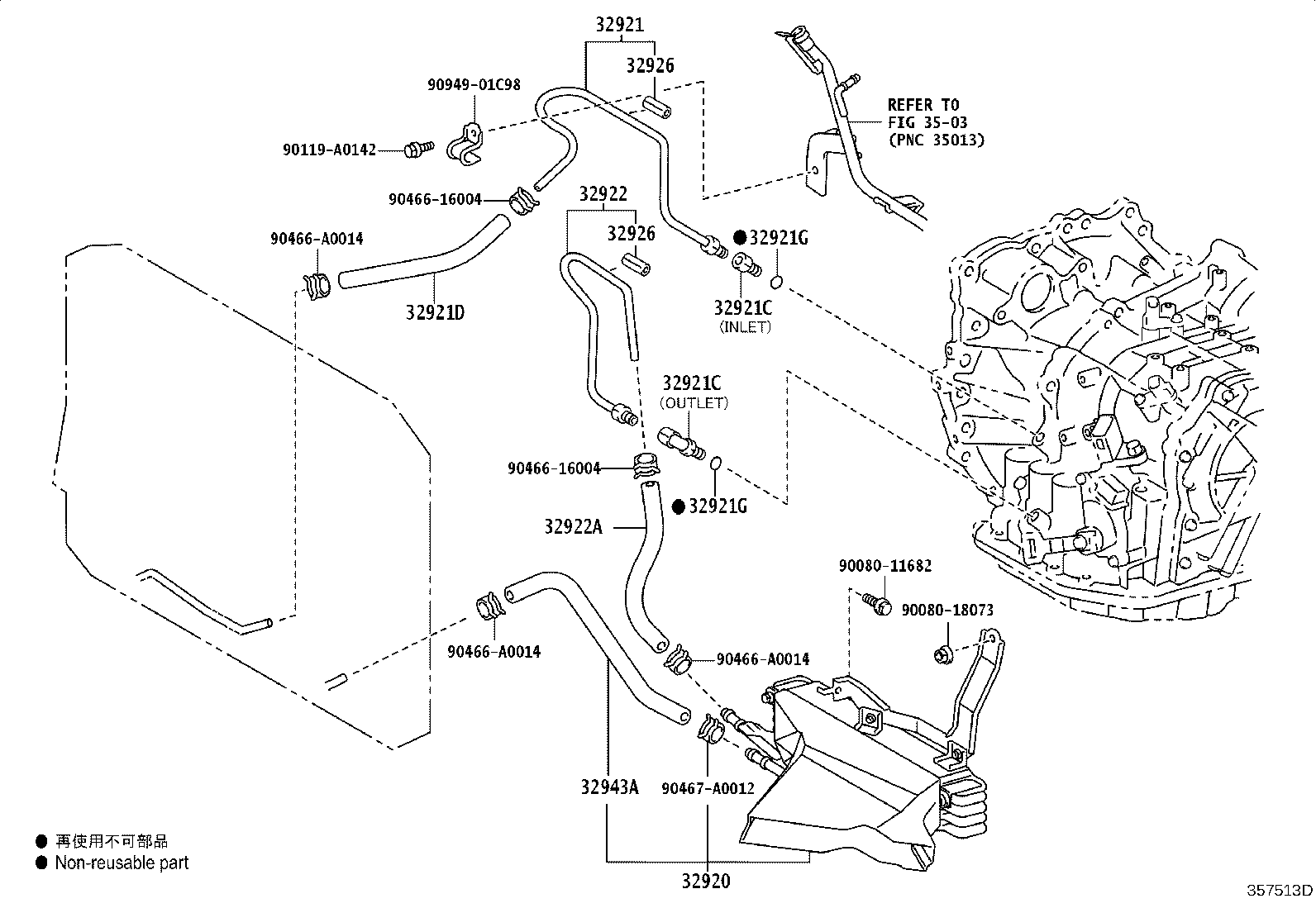

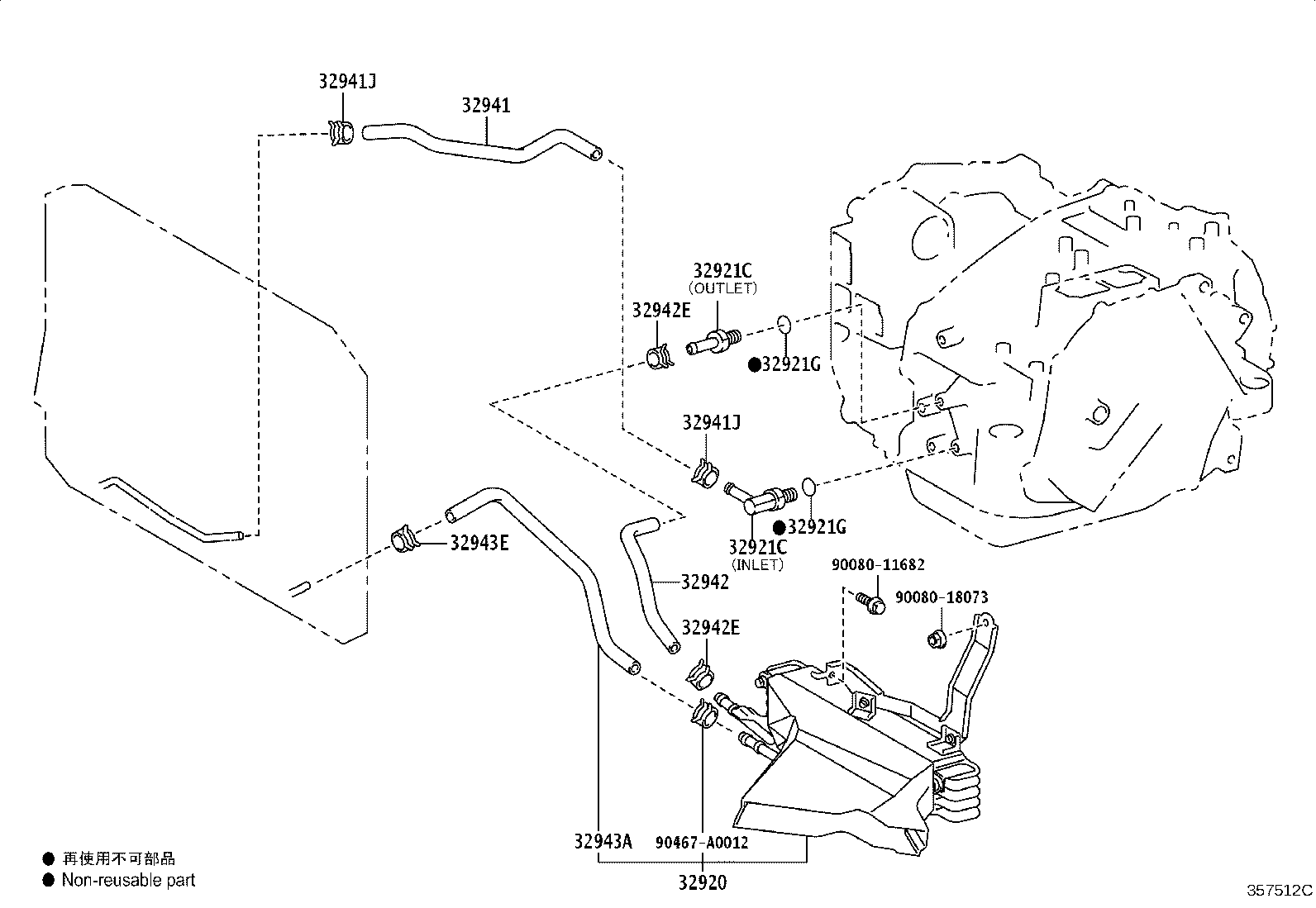

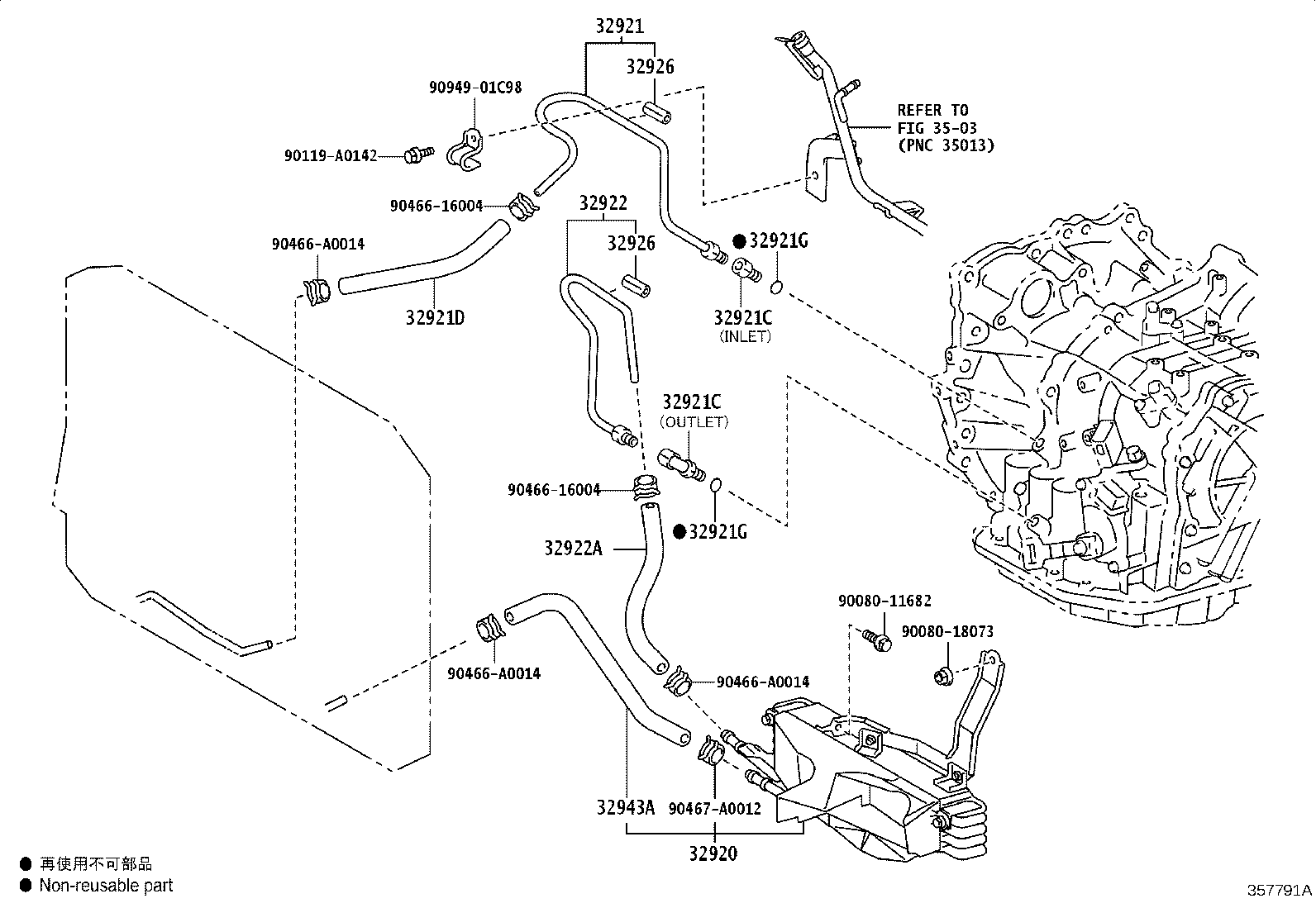

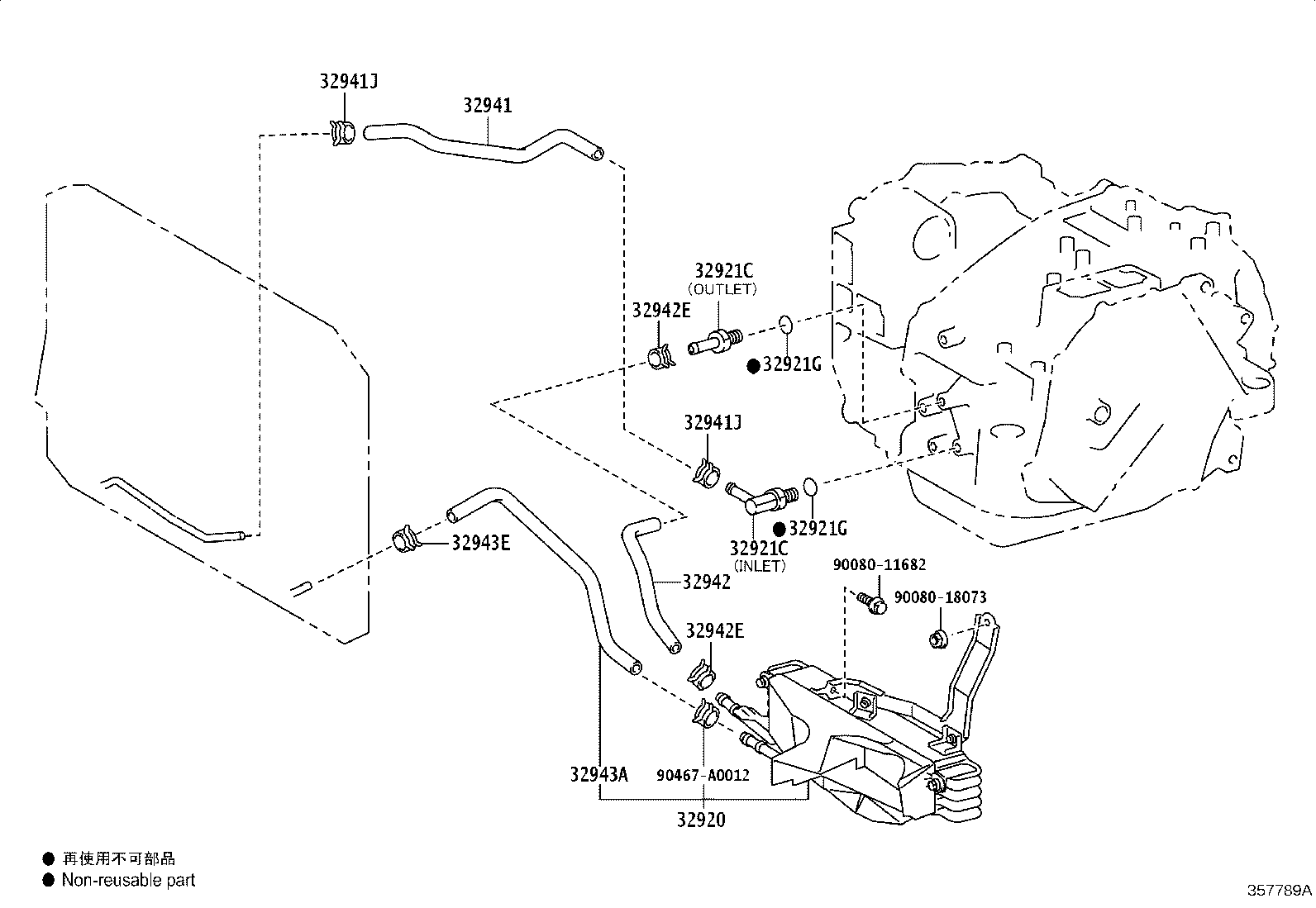

Figure 357516B 357516B 2009-10 → — Figure 357789B 357789B 2009-10 → 2010-08 Figure 357512C 357512C 2010-08 → — Figure 357517C 357517C 2009-10 → — Figure 357791A 357791A 2009-10 → 2010-08 Figure 357513D 357513D 2010-08 → —

Part groups

PNCDescription
32920 Cooler Assy, Oil W/Hose
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943A Hose, Transmission Oil Cooler, NO.2
32943E Clip, NO.3(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
