Side Member

83 part groups · 4 illustrations

Illustrations

614160A 2009-10 → 2011-12

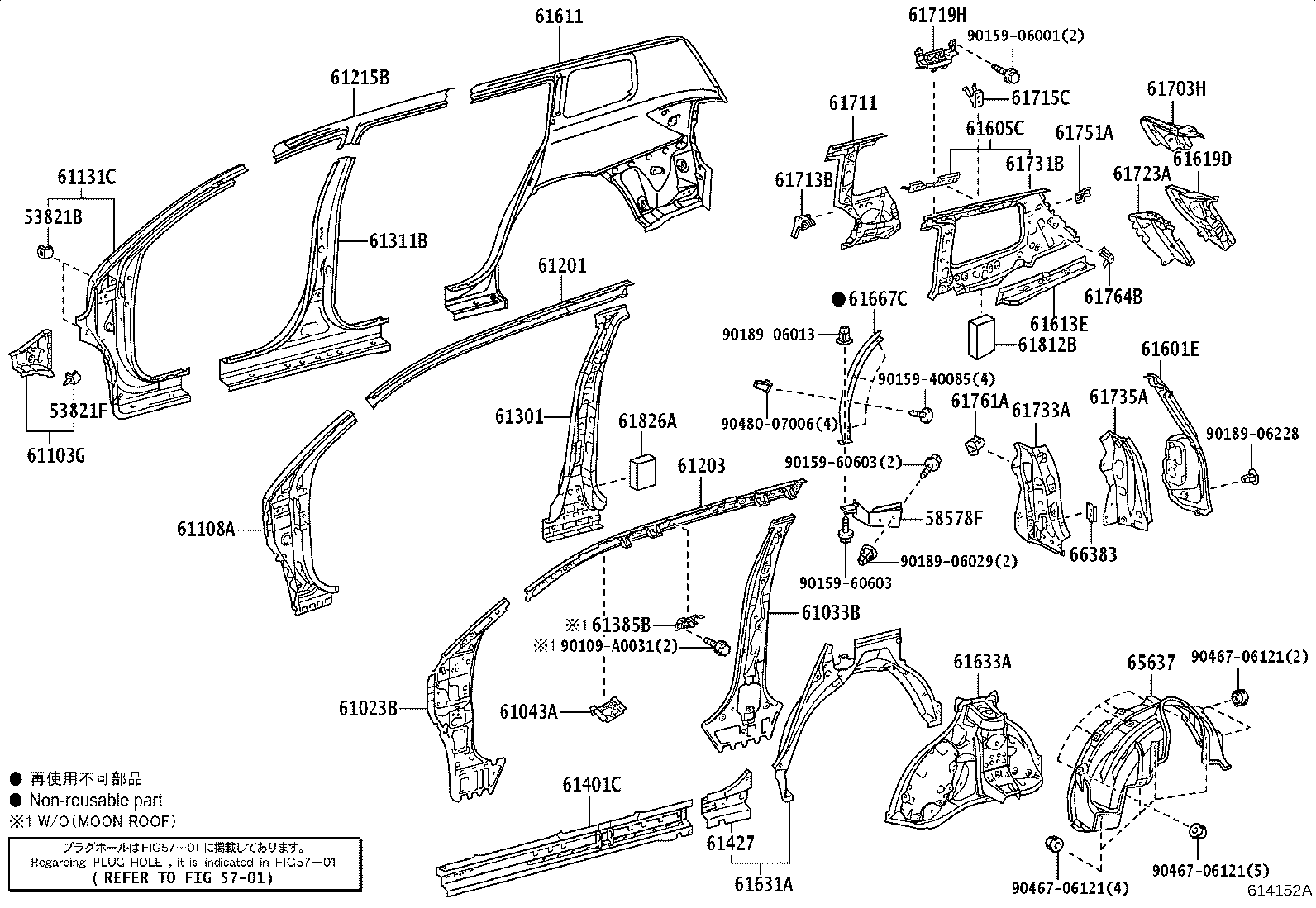

614152A 2011-12 → —

614161A 2009-10 → 2011-12

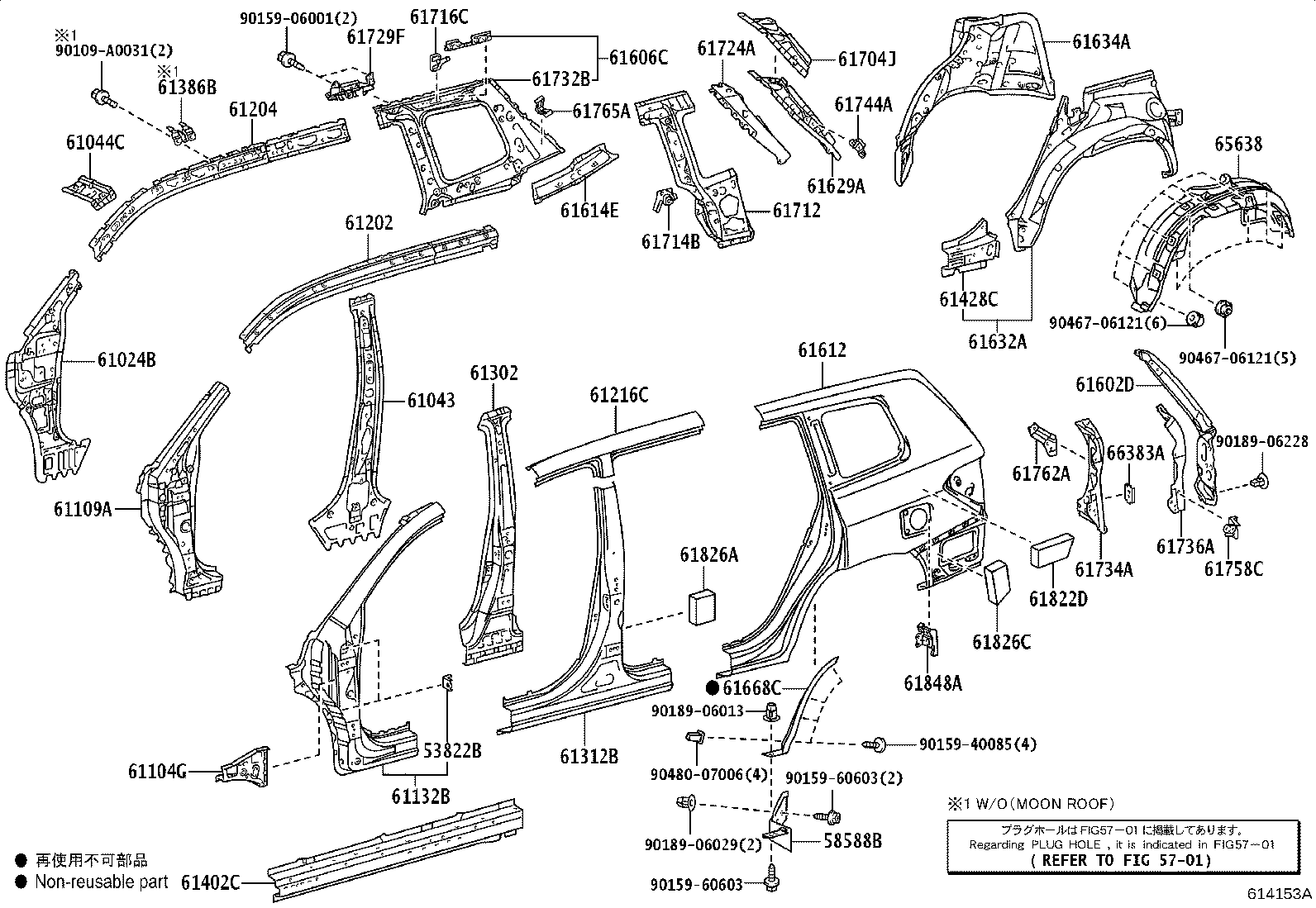

614153A 2011-12 → —

Part groups

PNC	Description
53821B	Bracket, Front Fender, Rear RH
53821F	Bracket, Front Fender, Rear NO.2 RH
53822B	Bracket, Front Fender, Rear LH
58578F	Pad, Rear Wheel House, RH
58588B	Pad, Rear Wheel House, LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61033B	Pillar Sub-assy, NO.2 Inner, RH
61043	Pillar Sub-assy, NO.2 Inner, LH
61043A	Extension Sub-assy, Front Body Pillar, Outer RH
61044C	Extension Sub-assy, Front Body Pillar, Outer LH
61103G	Gusset Sub-assy, Front Body Pillar, Lower RH
61104G	Gusset Sub-assy, Front Body Pillar, Lower LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131C	Pillar, Front Body, Outer RH
61132B	Pillar, Front Body, Outer LH
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61215B	Rail, Roof Side, Outer NO.3 RH
61216C	Rail, Roof Side, Outer NO.3 LH
61301	Pillar Sub-assy, Center Body, RH
61302	Pillar Sub-assy, Center Body, LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61385B	Extension, Center Body Pillar, Inner RH
61386B	Extension, Center Body Pillar, Inner LH
61401C	Panel Sub-assy, Rocker, Outer RH
61402C	Panel Sub-assy, Rocker, Outer LH
61427	Reinforcement, Rocker Panel, NO.5 RH
61428C	Reinforcement, Rocker Panel, NO.5 LH
61601E	Panel Sub-assy, Quarter, Outer RH
61602D	Panel Sub-assy, Quarter, Outer LH
61605C	Panel Sub-assy, Quater, Rear Inner RH
61606C	Panel Sub-assy, Quater, Rear Inner LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613E	Panel, Quarter, Inner RH
61614E	Panel, Quarter, Inner LH
61619D	Reinforcement, Quarter Panel, RH
61629A	Reinforcement, Quarter Panel, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61667C	Seal, Qaurter Panel, NO.1
61668C	Seal, Quarter Panel, NO.2
61703H	Reinforcement Sub-assy, Roof Side, Inner RH
61704J	Reinforcement Sub-assy, Roof Side, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713B	Reinforce, Roof Side, Outer RH
61714B	Reinforce, Roof Side, Outer LH
61715C	Bracket, Roof Side, RH
61716C	Bracket, Roof Side, LH
61719H	Bracket Sub-assy, Roof Side Rail, RH
61723A	Reinforcement, Quarter Window Opening, RH NO.1
61724A	Reinforcement, Quarter Window Opening, LH NO.1
61729F	Bracket Sub-assy, Roof Side Rail, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61744A	Reinforcement, Back Door Opening Side, LH
61751A	Retainer, Quarter Trim, RH
61758C	Bracket, Quarter Inner Panel
61761A	Reinforce, Seat Belt Anchor, NO.1 Upper RH
61762A	Reinforce, Seat Belt Anchor, NO.1 Upper LH
61764B	Reinforcement, Seat Belt Anchor, NO.2 RH
61765A	Reinforcement, Seat Belt Anchor, NO.2 LH
61812B	Plate, Noise Control, RH
61822D	Plate, Noise Control, LH
61826A	Plate, Noise Control, NO.3
61826C	Pad, Noise Shutter, NO.3
61848A	Retainer, Quarter Panel, LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
66383	Bracket, Rope Hook Bar, NO.1 RH
66383A	Bracket, Rope Hook Bar, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
