Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 3 illustrations

Illustrations

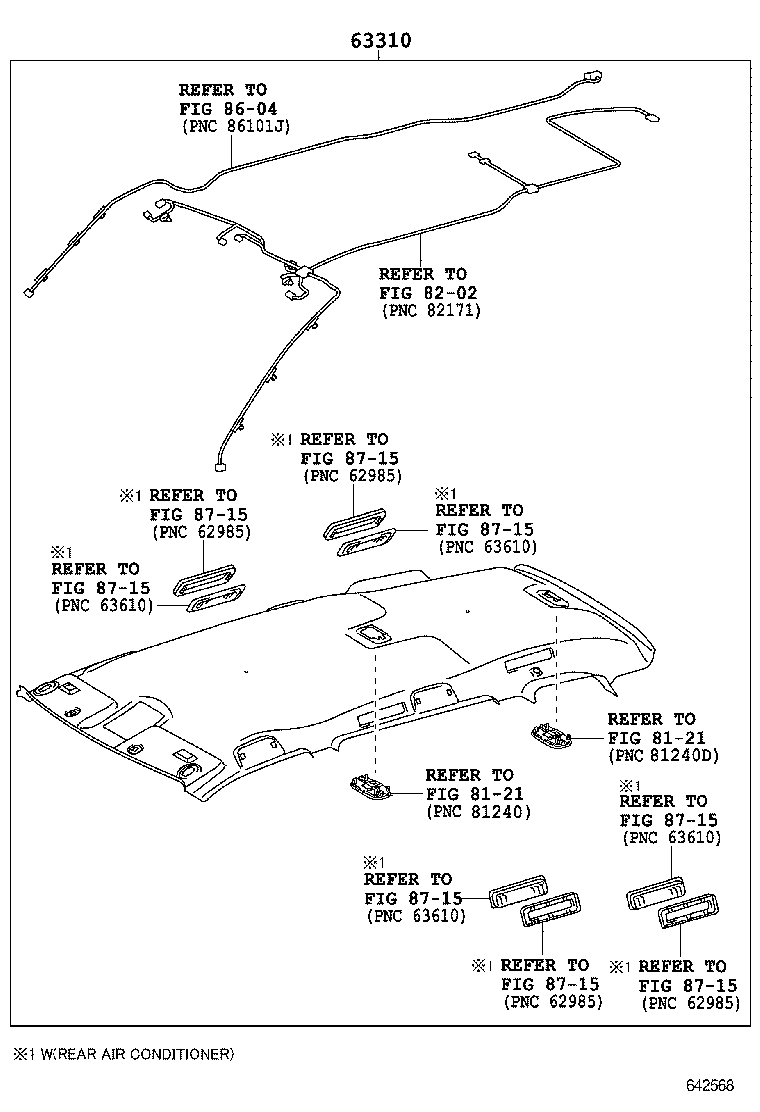

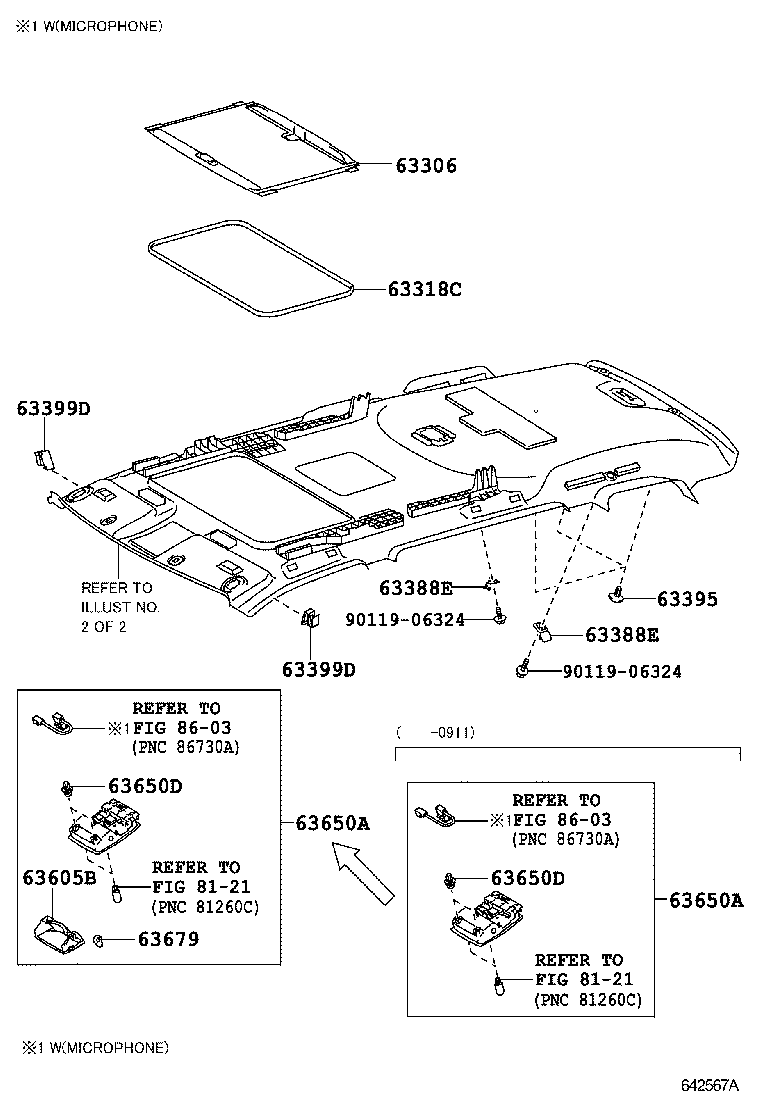

Figure 642566A 642566A 2009-10 → — Figure 642567A 642567A 2009-10 → — Figure 642568 642568 2009-10 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63318C Moulding, Sun Roof Opening Trim
63388E Stopper, Roof Headlining Trim Clip
63395 Clip, Roof Headlining Trim
63399D Clip, Roof Headlining
63412B Retainer, Roof Console
63605B Box Sub-assy, Roof Console
63650A Box Assy, Roof Console
63650D Clip(FOR ROOF CONSOLE BOX)
63679 Retainer, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
