Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07

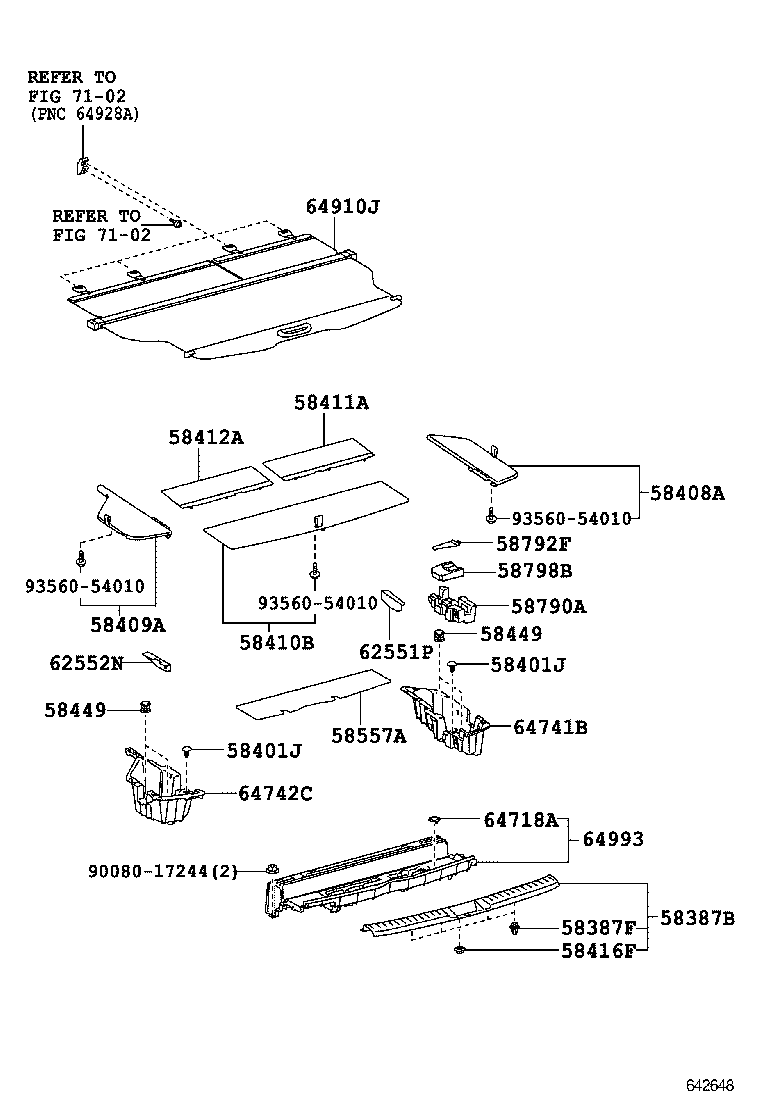

Deck Board & Deck Trim Cover

45 part groups · 3 illustrations

PNC	Description
58387B	Plate, Rear Floor Finish
58387F	Clip, Rear Floor Finish Plate
58401J	Clip(FOR DECK BOAD)
58408A	Board Sub-assy, Deck, NO.2
58409A	Board Sub-assy, Deck, NO.3
58410B	Board Assy, Deck
58411A	Board, Deck, NO.1
58412A	Board, Deck, NO.2
58415E	Board, Rear Floor, NO.1
58416F	Bracket, Deck Board, NO.1
58423B	Spacer, Rear Floor Board, NO.2
58424F	Spacer, Rear Floor Board, NO.3
58449	Clip, Deck Board
58557A	Mat, Rear
58790A	Carrier Assy, Jack
58792F	Support, Jack Carrier
58798B	Cushion, Jack Carrier
62551P	Cover, Rear Seat Side, RH
62552N	Cover, Rear Seat Side, LH
62556F	Cap, Rear Seat Side Garnish
62627D	Cover, Side Trim, RH
62628A	Cover, Side Trim, LH
64712F	Cover, Deck Side Trim, Front RH
64713F	Cover, Deck Side Trim, Front LH
64714C	Cover, Deck Side Trim, RH
64714E	Clip(FOR DECK TRIM SIDE COVER)
64714H	Cover, Deck Side Trim, NO.1
64715C	Cover, Deck Side Trim, LH
64715E	Cover, Deck Side Trim, NO.2
64716D	Cover, Deck Trim, Rear
64718A	Cover, Deck Trim Service Hole
64725F	Hook, Luggage Compartment Trim, NO.1
64726H	Hook, Deck Side Trim, NO.2
64730B	Panel Assy, Deck Trim Side, RH
64740C	Panel Assy, Deck Trim Side, LH
64741B	Box, Deck Side Trim, RH
64742C	Box, Deck Side Trim, LH
64745	Cover, Rear Combination Lamp Service, RH
64746	Cover, Rear Combination Lamp Service, LH
64750F	Clip(FOR DECK SIDE TRIM PANEL)
64910J	Cover Assy, Tonneau
64993	Box, Deck Floor, Rear
66310H	Hook Assy, Rope
66991B	Holder, Cup, NO.1
72598B	Bezel, Reclining Remote Control Lever, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
