Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

18 part groups · 3 illustrations

Illustrations

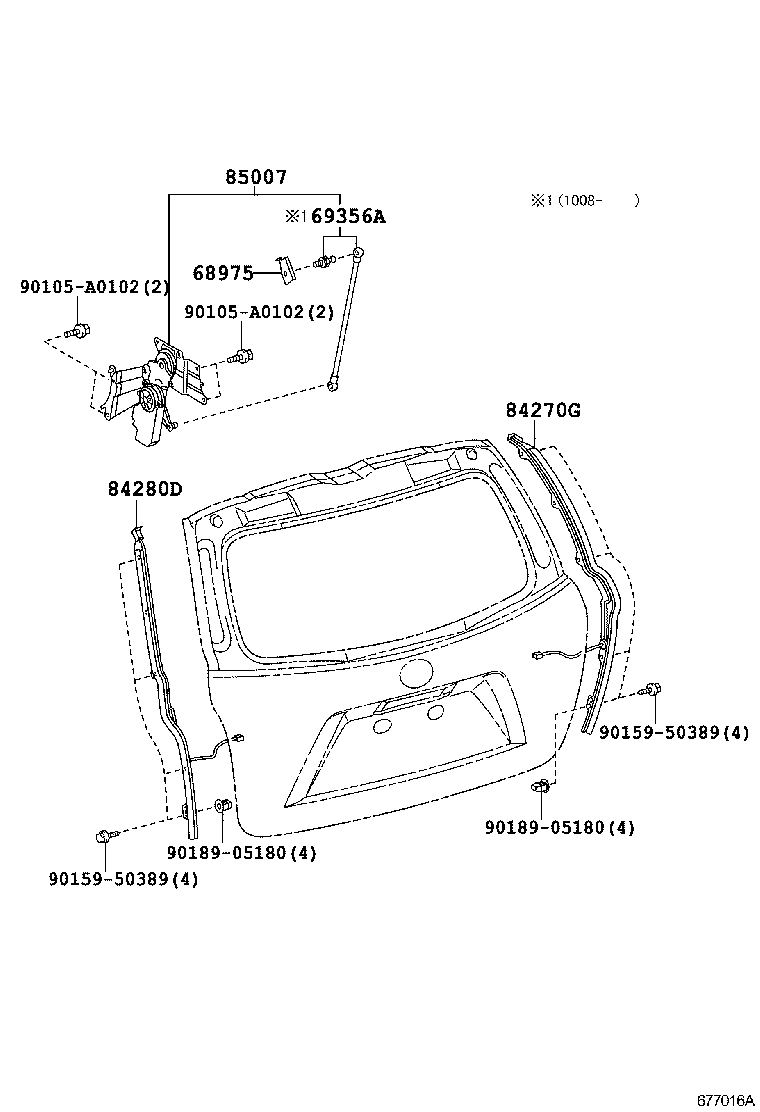

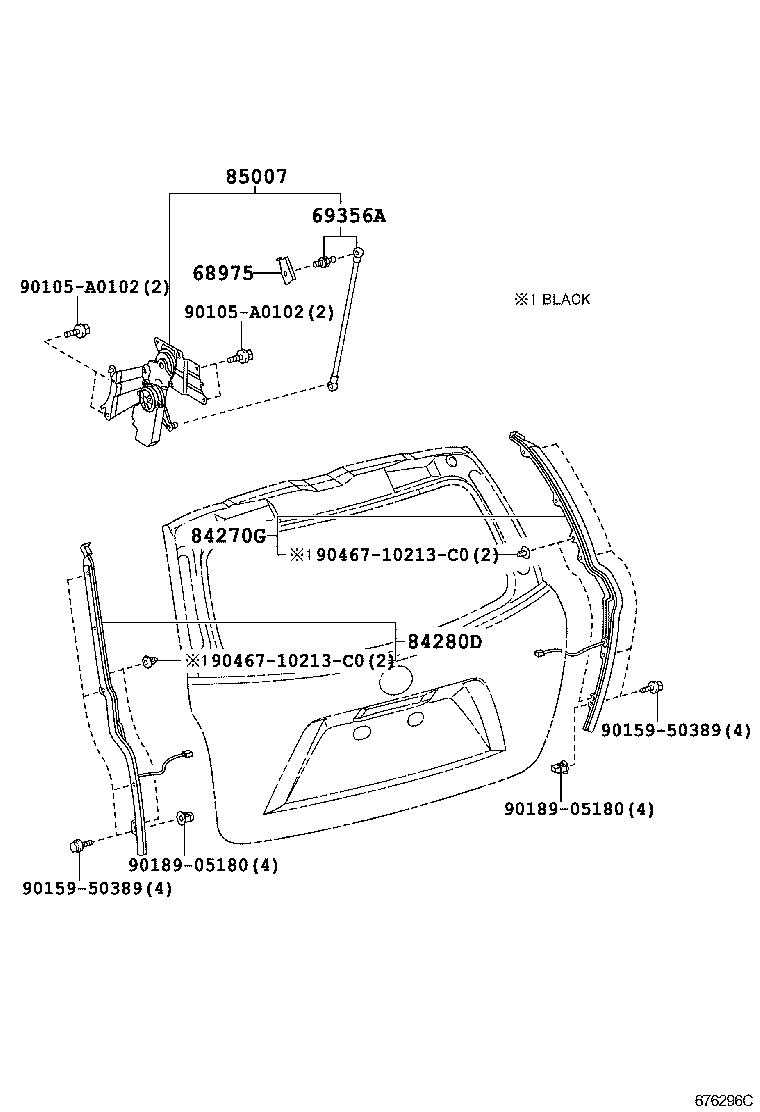

Figure 676295A 676295A 2009-10 → — Figure 677016A 677016A 2009-10 → 2011-06 Figure 676296C 676296C 2011-06 → —

Part groups

PNCDescription
68810C Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68930 Stay Assy, Back Window, RH
68940 Stay Assy, Back Window, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68950C Stay Assy, Back Door, RH
68957B Bracket, Back Door Stay, Lower
68960 Stay Assy, Back Door, LH
68961J Bolt, Back Window Stay
68975 Plate, Back Door Stay
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69356A Rod, Back Door, Upper
69370E Lock Assy, Back Window
69430C Striker Assy, Back Door Lock
84270G Sensor Assy, Power Back Door, RH
84280D Sensor Assy, Power Back Door, LH
85007 Motor Unit, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
