Toyota Highlander (NAP)
2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States
Supported model
Data version 2014-07

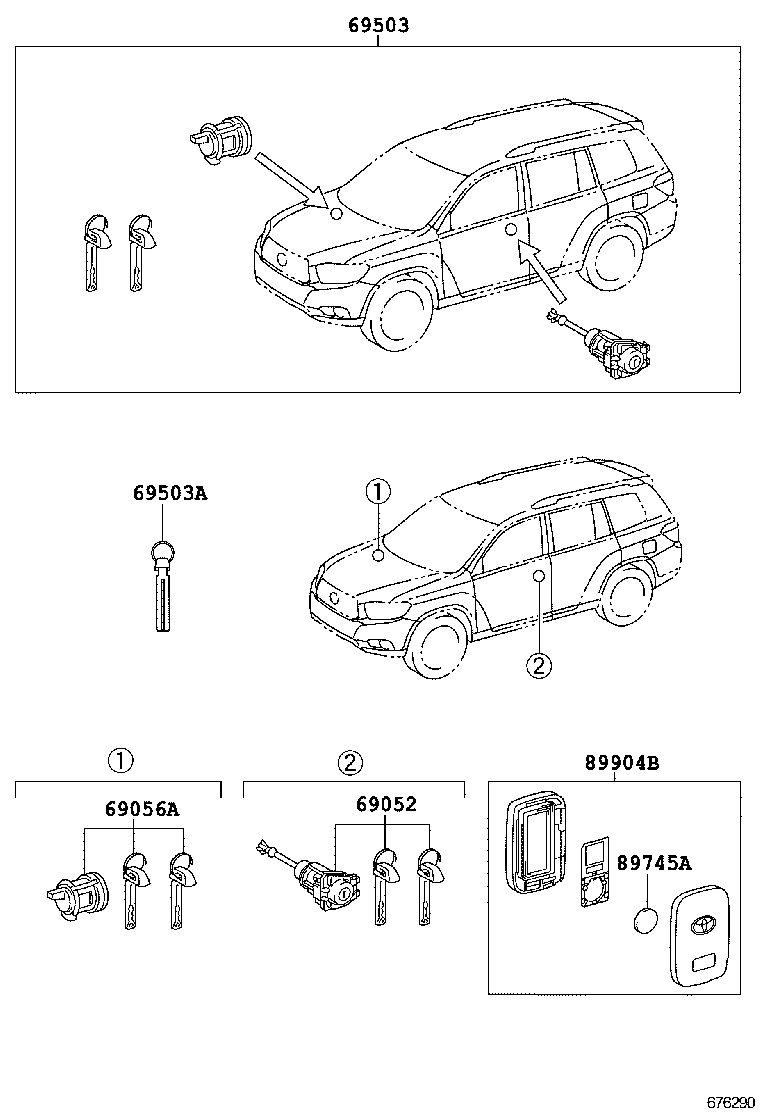

Lock Cylinder Set
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 89742A | Transmitter, Door Control |
| 89745A | Battery, Transmitter |
| 89785B | Transmitter, Transponder Key Master |
| 89786B | Transmitter, Transponder Key Sub |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
