Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

164 part groups · 7 illustrations

Illustrations

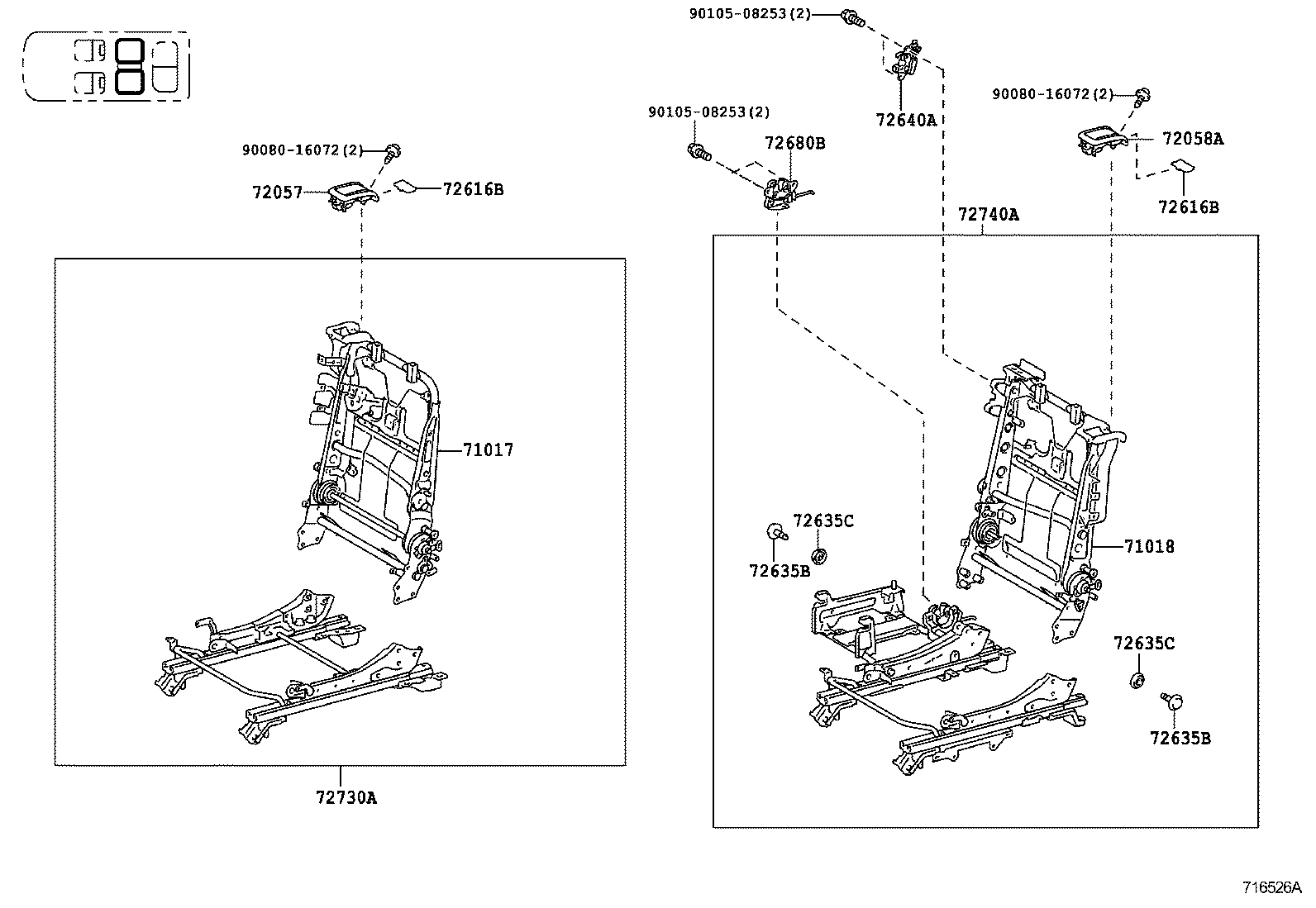

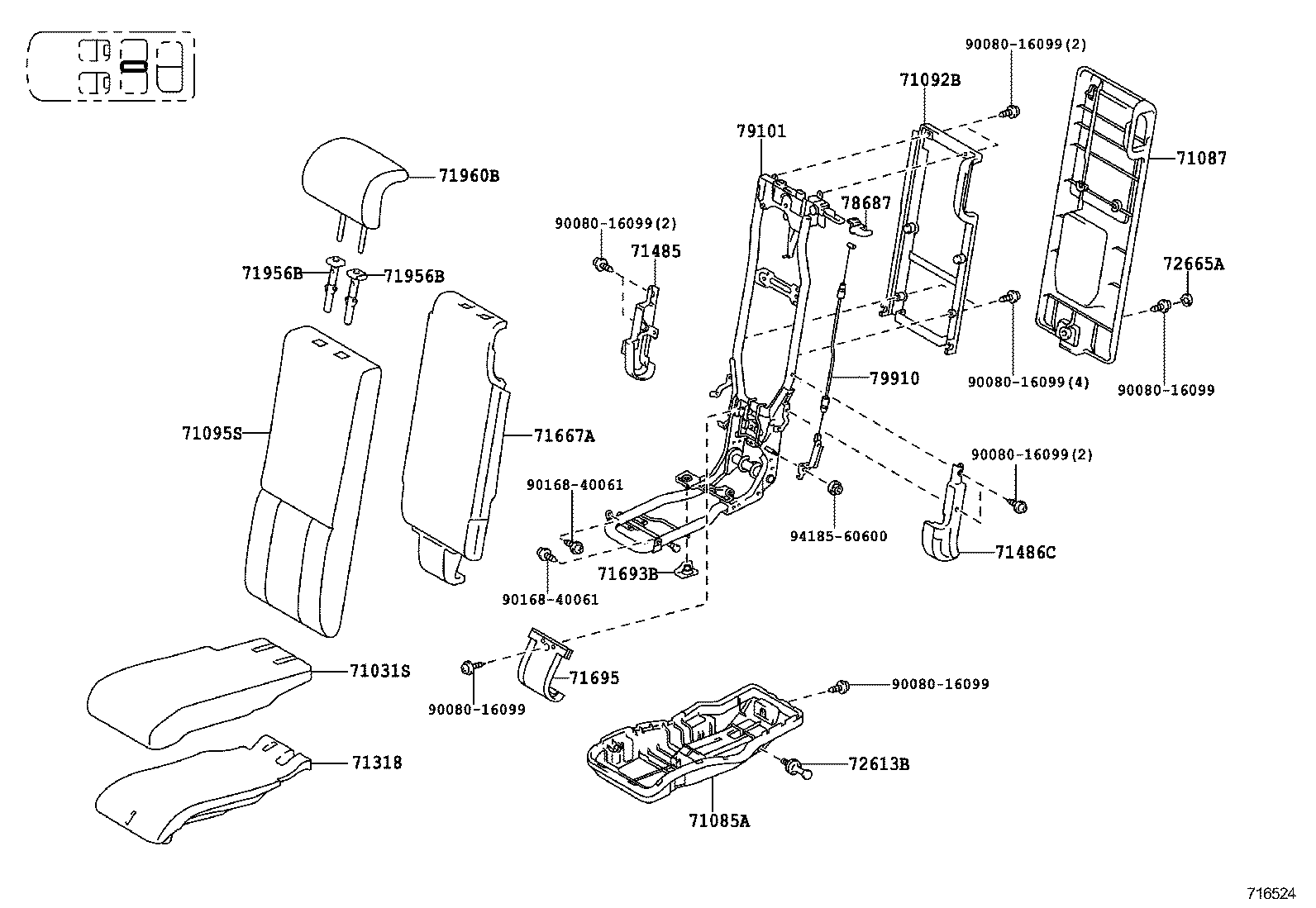

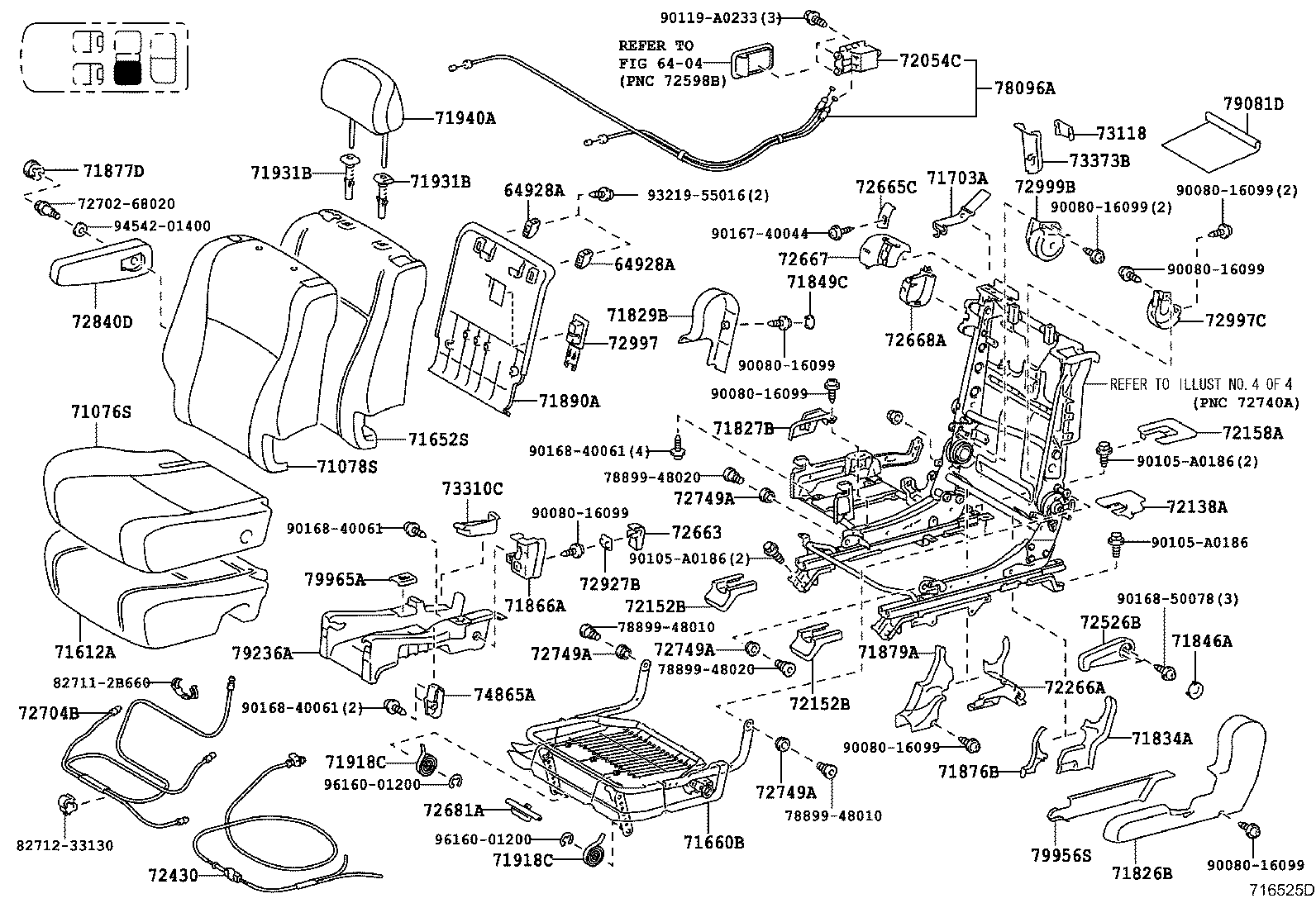

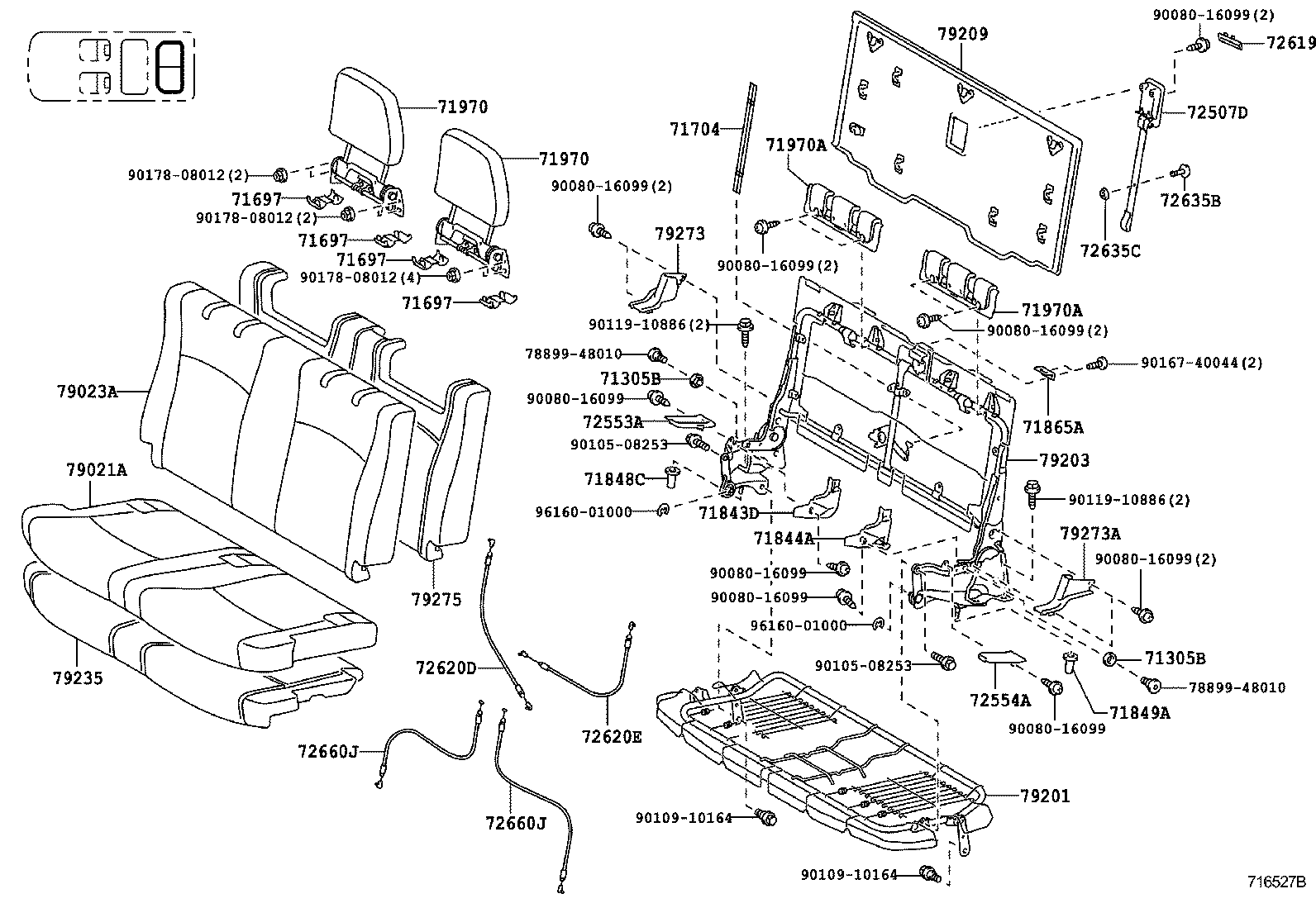

716527B 2009-10 → 2010-08

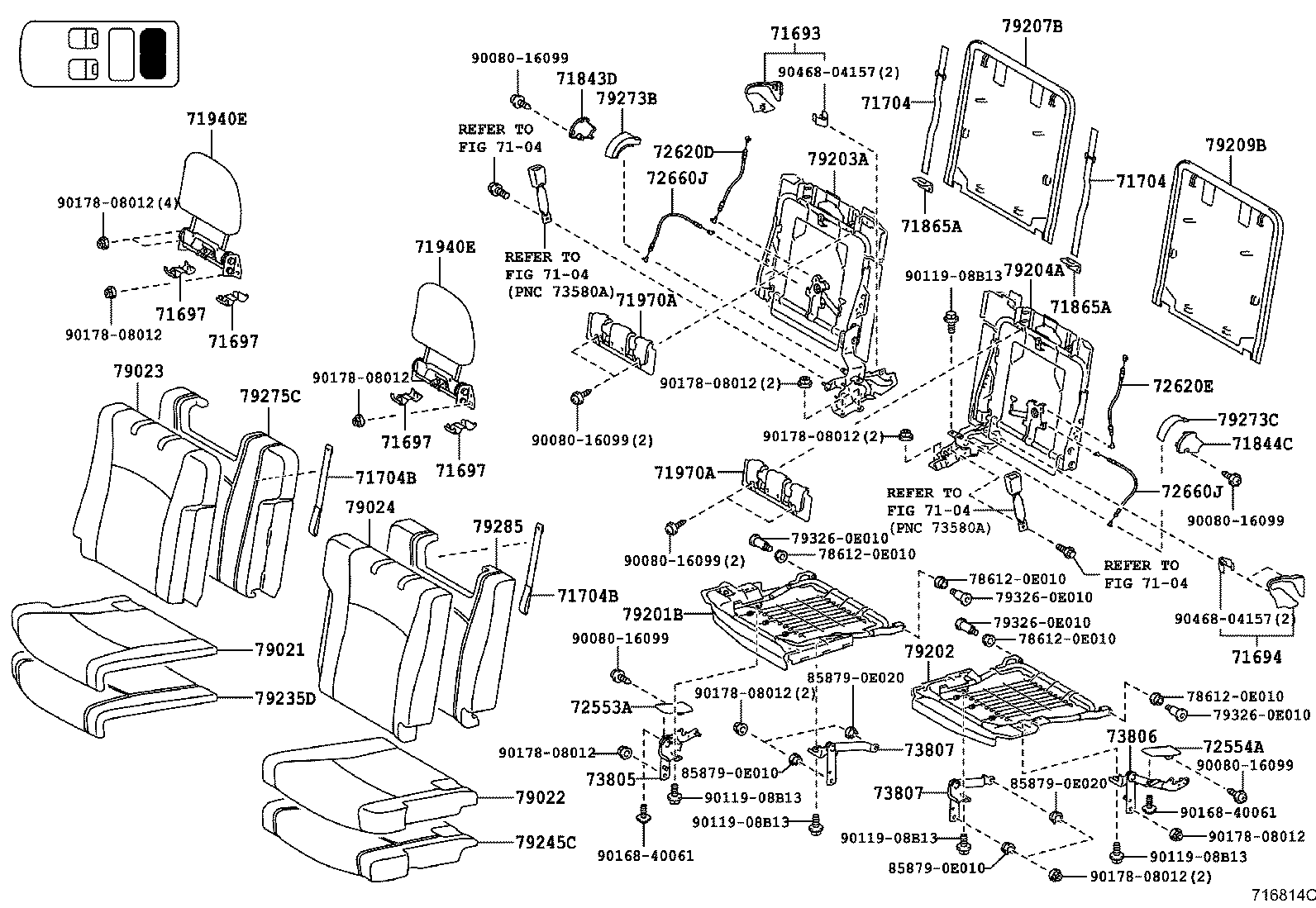

716814C 2010-08 → —

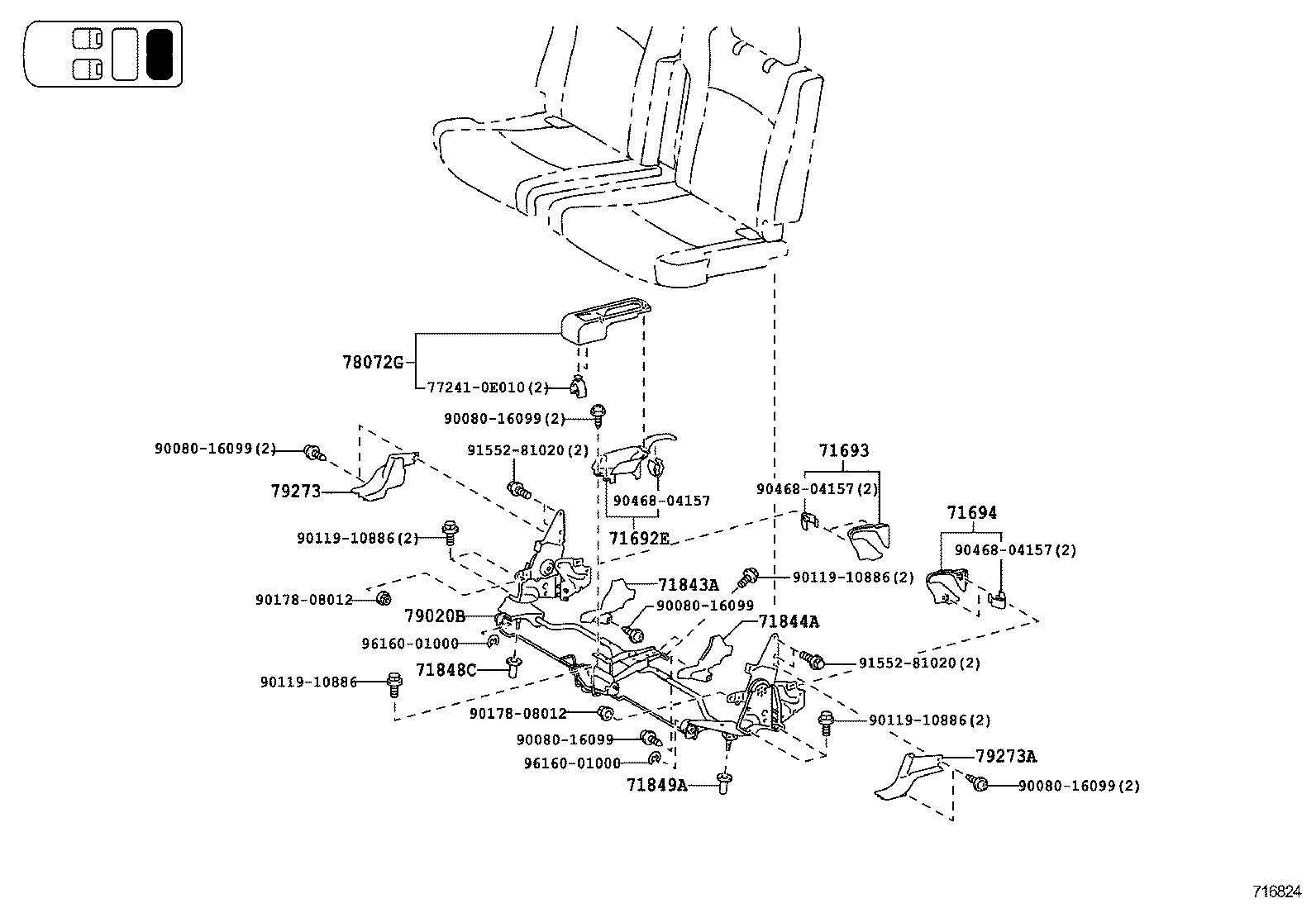

716824 2010-08 → —

Part groups

PNC	Description
64928A	Holder, Tonneau Cover Hook
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71031S	Cover Sub-assy, Center Seat Cushion
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71085A	Cover Sub-assy, Rear Seat Cushion, NO.2
71087	Board Sub-assy, Rear Seatback
71092B	Cover Sub-assy, NO.2 Seatback
71095S	Cover Sub-assy, Center Seatback
71305B	Spacer, Rear Seatback Hinge
71318	Pad, Center Seat Cushion
71409	Stopper Sub-assy, Rear Seatback
71485	Cover, Rear Seat Hinge
71486C	Cover, Rear Seat Hinge, LH
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71650B	Spring Assy, Rear Seat Cushion, RH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B	Spring Assy, Rear Seat Cushion, LH
71667A	Pad, Rear Seatback, Center A
71692E	Cover, Rear Seat Cushion Hinge, NO.2
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71693B	Cap, Rear Seat Cushion Hinge
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71695	Protector, Rear Seatback
71697	Protector, Rear Seatback Edge
71703A	Band Sub-assy, Rear Side Seat, NO.1
71704	Band Sub-assy, Rear Side Seat
71704B	Band Sub-assy, Rear Side Seat, NO.2
71825B	Moulding, Rear Seat Cushion, RH
71826B	Moulding, Rear Seat Cushion, LH
71827B	Moulding, Rear Seat Cushion, Front
71828B	Moulding, Rear Seat Cushion, Rear RH
71829B	Moulding, Rear Seat Cushion, Rear LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71843D	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71844C	Cover, Rear Seat Reclining, NO.2 LH
71845A	Cover, Rear Seat Reclining, Upper RH
71846A	Cover, Rear Seat Reclining, Upper LH
71848B	Cap, Seat Adjuster Cover, RH
71848C	Cap, Seat Adjuster Cover, RH
71849A	Cap, Seat Adjuster Cover, LH
71849C	Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71865	Bezel, Rear Seat Cover, NO.1
71865A	Bezel, Rear Seat Cover, NO.1
71866A	Bezel, Rear Seat Cover, NO.2
71875C	Cover, Reclining Adjuster Inside, RH
71876B	Cover, Reclining Adjuster Inside, LH
71877D	Cover, Rear Seat Armrest Hole
71878A	Cover, Rear Seat Reclining, Inner RH
71878C	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71880A	Carpet Assy, Rear Seatback Board, RH
71890A	Carpet Assy, Rear Seatback Board, LH
71918C	Spring, Center Seat Cushion Catch
71931B	Support Assy, Rear NO.1 Seat Headrest
71940A	Headrest Assy, Rear Seat
71940E	Headrest Assy, NO.2 Seat
71956B	Support, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
71970	Headrest Assy, Rear Seat
71970A	Cover, Rear Seat Headrest
72054C	Lever Sub-assy, Reclining Remote Control, LH
72057	Lever Sub-assy, Rear Seat Lock Control, RH
72058A	Lever Sub-assy, Rear Seat Lock Control, LH
72067	Lever Sub-assy, Rear Back Lock Control, RH
72137D	Cover, Rear Seat Track, RH
72138A	Cover, Rear Seat Track, LH
72152A	Cover, Rear Seat Track Bracket, Inner
72152B	Cover, Rear Seat Track Bracket, Inner
72157B	Cover, Rear Seat Track Bracket, Inner RH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72210F	Cable Assy, Seat Track Control
72266A	Cover, Seat Track Upper Rail, LH
72380A	Cable Assy, Seat Adjuster Control, NO.2
72430	Cable Assy, Seat Adjust Drive, NO.3
72507D	Handle Sub-assy, NO.2 Seat Reclining Release
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72551E	Cover, Reclining Hinge, RH
72553A	Protector, Reclining Cover, RH
72554A	Protector, Reclining Cover, LH
72593C	Knob, Reclining Remote Control Lever, NO.2
72613B	Striker, Rear Seat Lock
72615B	Cover, Rear Seat Lock Striker, RH
72615H	Cover, Rear Seatback Lock Striker, NO.1
72616B	Cover, Rear Seat Lock Striker
72619	Cover, Rear Seatback Lock Striker
72620D	Cable Assy, Rear NO.1 Seat Lock
72620E	Cable Assy, Rear NO.1 Seat Lock
72635B	Hook, Rear Seatback Lock(MALE)
72635C	Hook, Rear Seatback Lock(FEMALE)
72640A	Lock Assy, Rear Seatback, LH
72660J	Cable Assy, Rear NO.2 Seat Cushion Lock
72663	Lever, Rear Seat Lock Control, NO.1
72665A	Cap(FOR REAR SEATBACK LOCK COVER)
72665C	Cover, Rear Seat Lock, RH
72667	Bezel, Rear Seatback Lock, Upper
72668A	Bezel, Rear Seatback Lock, Lower
72680B	Lock Assy, Rear Seat Cushion, LH
72681A	Hook, Rear Seat
72704A	Cable, Rear Seat Reclining Control
72704B	Cable, Rear Seat Reclining Control, NO.2
72730A	Adjuster Assy, Rear Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72749A	Spacer, Rear Seat Reclining
72830D	Armrest Assy, Rear Seat, RH
72840D	Armrest Assy, Rear Seat, LH
72927B	Cover, Rear Seat Cushion Under
72996A	Cover, Rear Seatback
72996B	Cover, Rear Seatback, Inner RH
72997	Cover, Rear Seatback, LH
72997C	Cover, Rear NO.2 Seatback, LH
72999B	Cover, Rear Seat Cushion Side, LH
73118	Plate, Belt Support
73310C	Cover Assy, Rear Seat 3 Point Type
73373B	Cover, Rear NO.1 Seat Shoulder Belt
73805	Link Sub-assy, Rear Seat Suspension, Outer RH
73806	Link Sub-assy, Rear Seat Suspension, Outer LH
73807	Link Sub-assy, Rear Seat Suspension, Inner
74865A	Cover, Center Protector
78072G	Cover Sub-assy, Center Sub Seat Cushion
78096A	Lever Sub-assy, Fold Seat Lock, LH
78687	Cover, Rear Seat Legrest Lock
79020B	Leg Assy, NO.2 Seat
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79021A	Cover Sub-assy, NO.2 Seat Cushion
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79023A	Cover Sub-assy, NO.2 Seatback
79024	Cover Sub-assy, NO.2 Seatback, LH
79081C	Cover, Rear Seat, NO.1
79081D	Cover, Rear Seat, NO.2
79101	Frame Sub-assy, NO.1 Seat Cushion
79201	Frame Sub-assy, NO.2 Seat Cushion
79201B	Frame Sub-assy, NO.2 Seat Cushion, RH
79202	Frame Sub-assy, NO.2 Seat Cushion, LH
79203	Frame Sub-assy, NO.2 Seatback
79203A	Frame Sub-assy, NO.2 Seatback, RH
79204A	Frame Sub-assy, NO.2 Seatback, LH
79207B	Board Sub-assy, NO.2 Seatback, RH
79209	Board Sub-assy, NO.2 Seatback
79209B	Board Sub-assy, NO.2 Seatback, LH
79235	Pad, NO.2 Seat Cushion
79235D	Pad, NO.2 Seat Cushion, RH
79236A	Cover, NO.2 Seat Leg
79245C	Pad, NO.2 Seat Cushion, LH
79273	Cover, NO.2 Seat Hinge
79273A	Cover, NO.2 Seat Hinge, NO.2
79273B	Cover, NO.2 Seat Hinge, NO.3
79273C	Cover, NO.2 Seat Hinge, NO.4
79275	Pad, NO.2 Seatback
79275C	Pad, NO.2 Seatback, RH
79285	Pad, NO.2 Seatback, LH
79910	Cable Assy, Rear Seat Turn, NO.1
79956S	Cover, Rear Seat Leg Side
79965A	Cover, Rear Seat Leg Side, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
