Toyota Highlander (NAP)
2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States
Supported model
Data version 2014-07
Interior Lamp
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81249 | Switch, Room Lamp |
| 81260 | Lamp Assy, Glove Box |

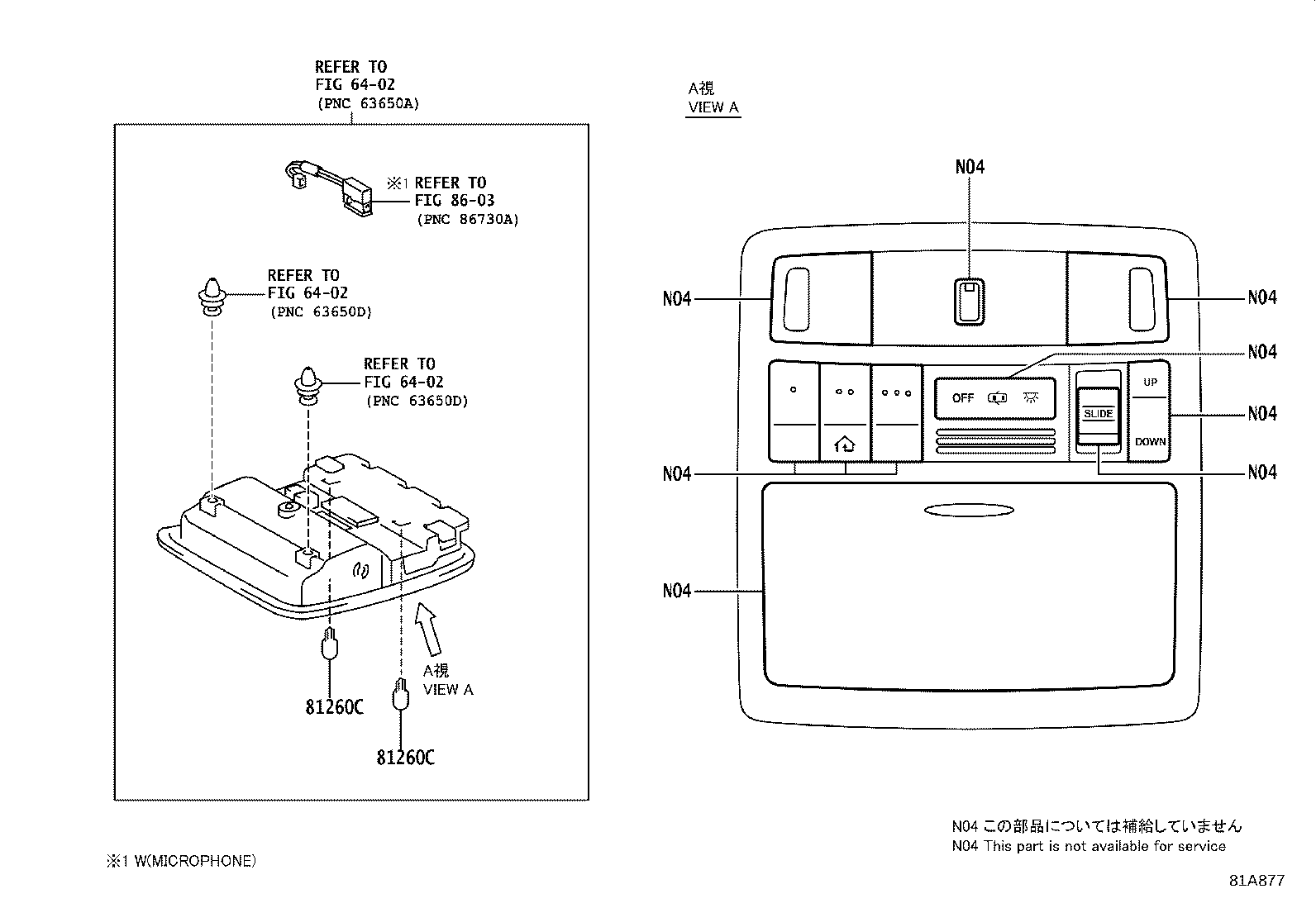

| 81260C | Bulb(FOR MAP LAMP) |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81870D | Lamp Assy, Key Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
