Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

74 part groups · 18 illustrations

Illustrations

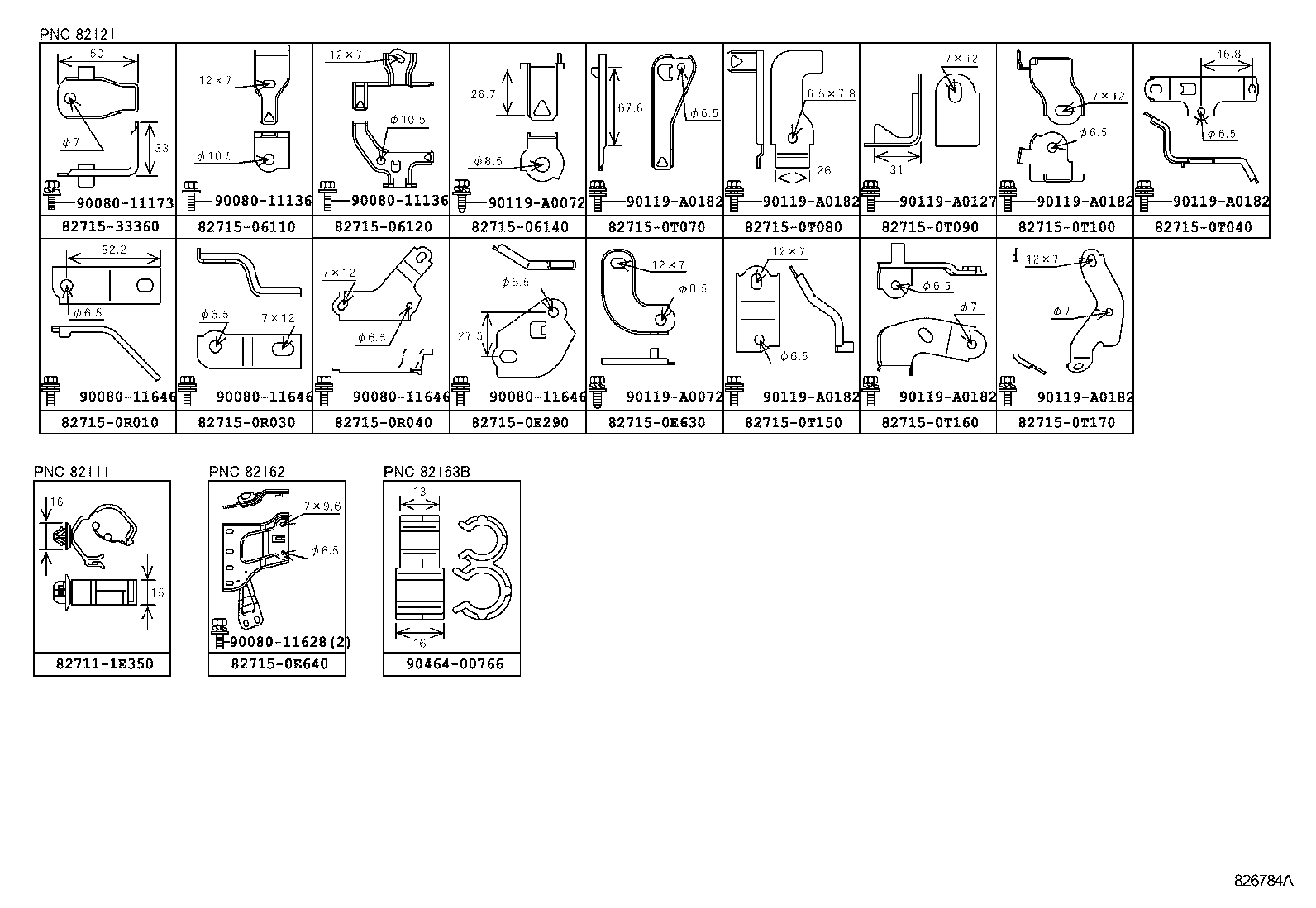

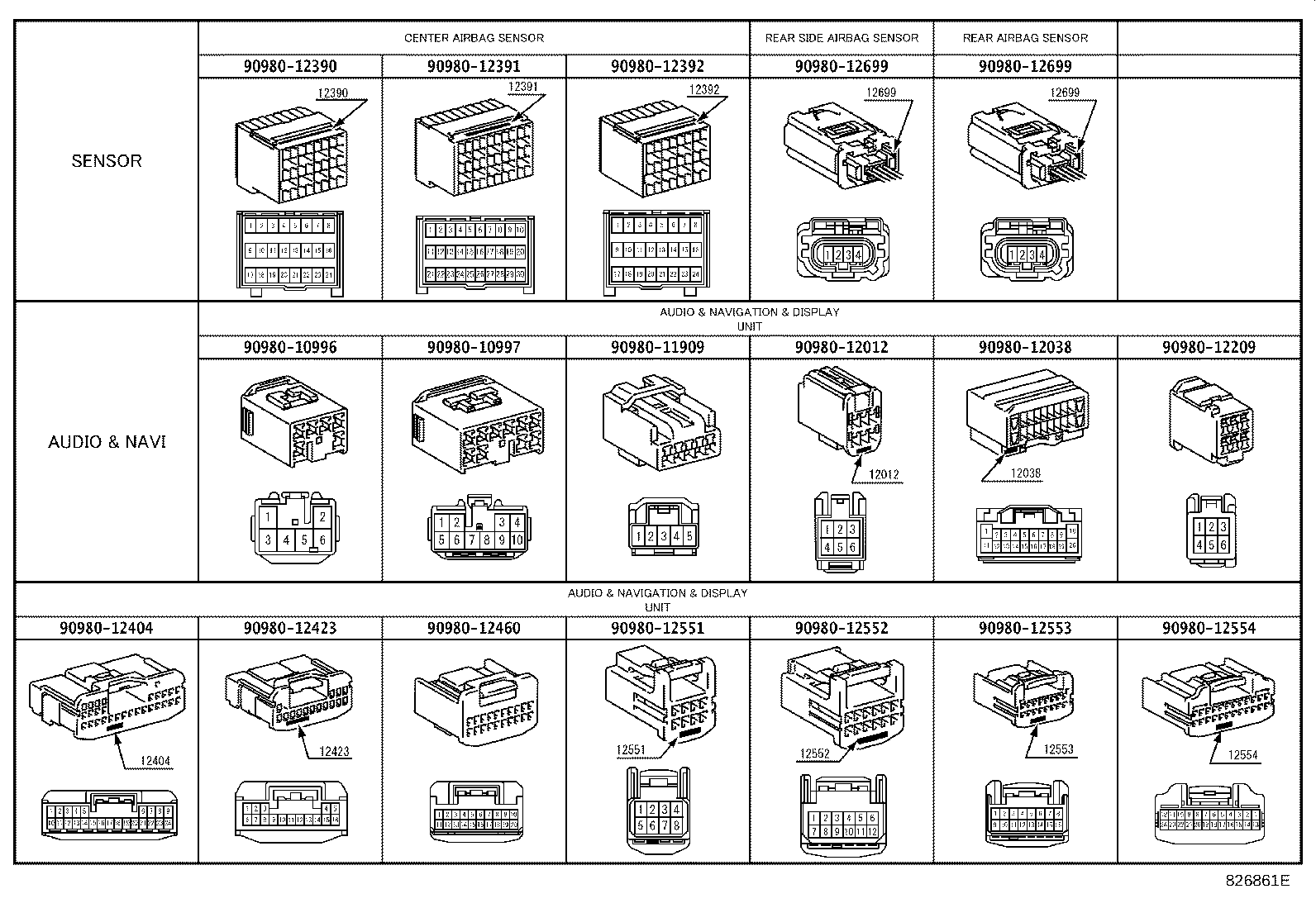

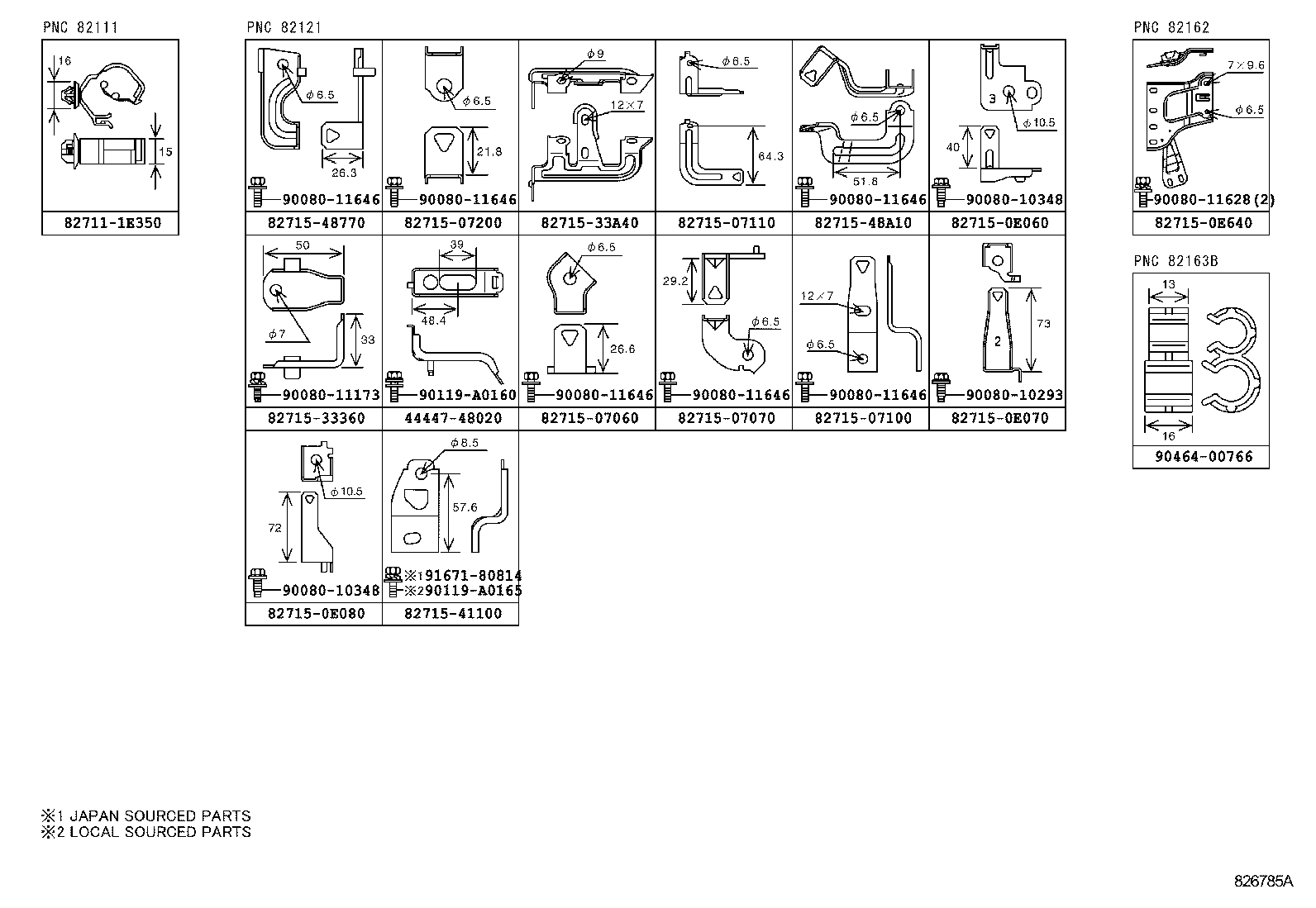

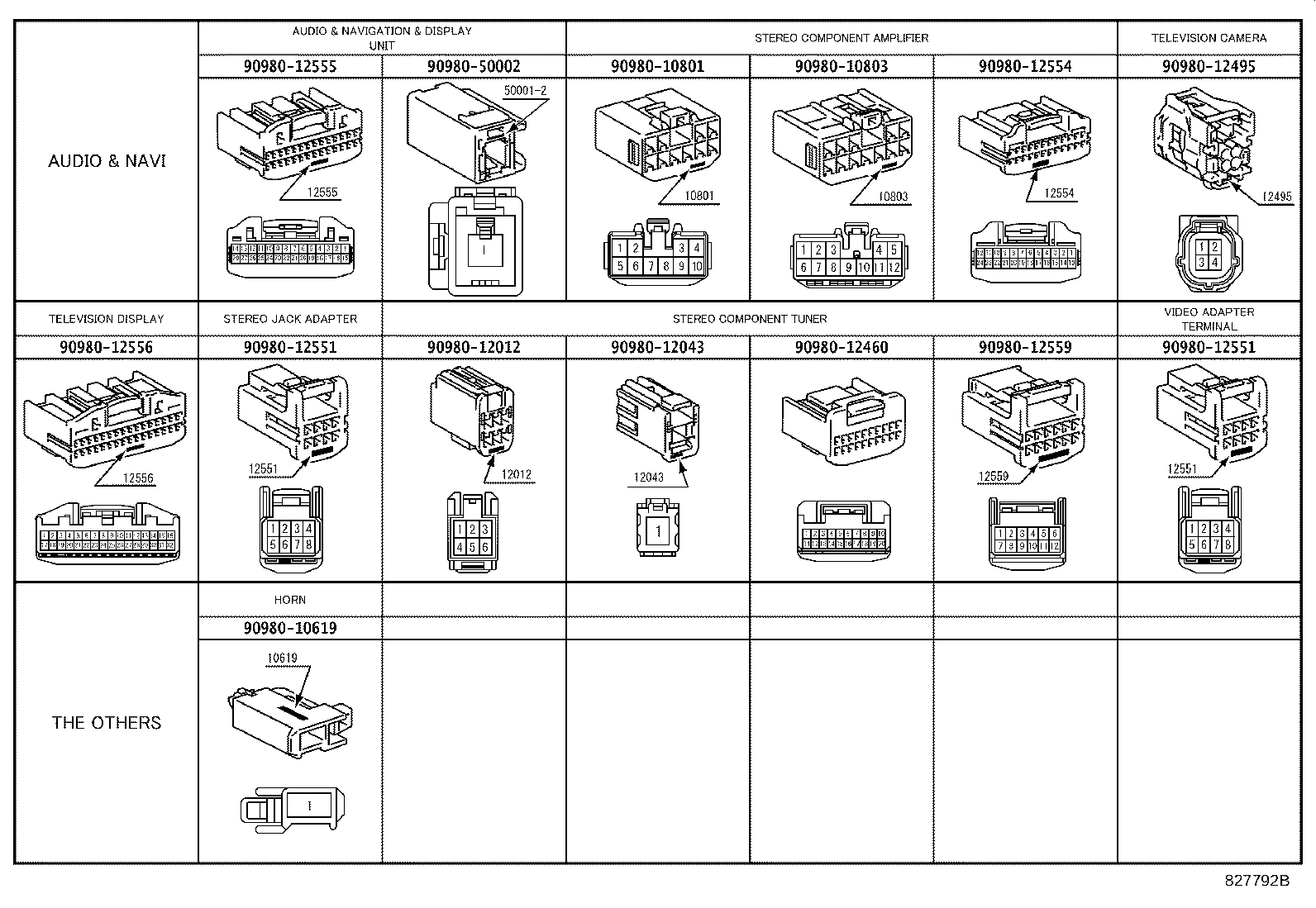

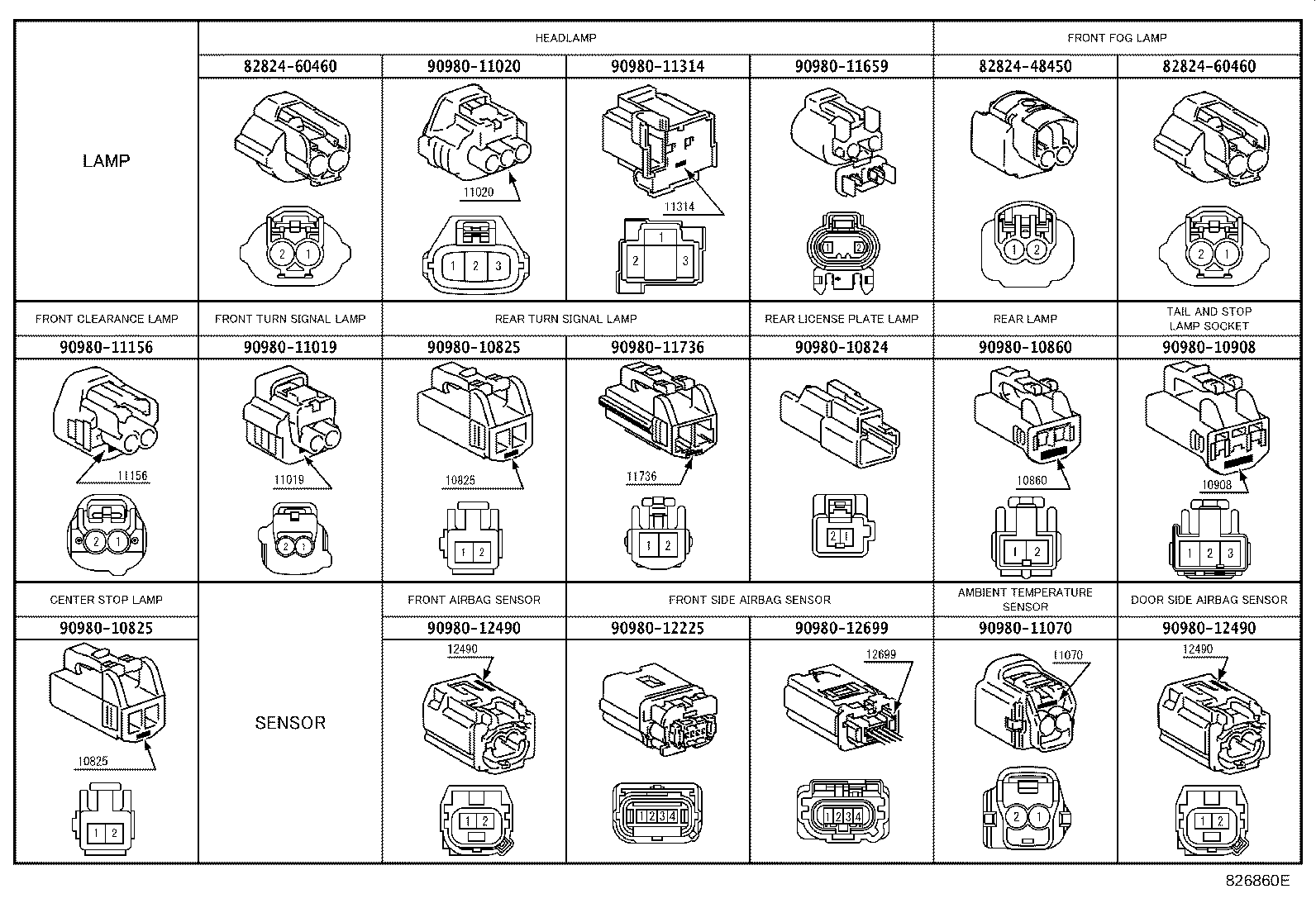

Figure 826777A 826777A 2009-10 → 2010-08 Figure 827136A 827136A 2010-08 → — Figure 826778D 826778D 2009-10 → — Figure 826779A 826779A 2009-10 → 2010-08 Figure 827137A 827137A 2010-08 → — Figure 826780A 826780A 2009-10 → 2010-08 Figure 827138 827138 2010-08 → — Figure 826781B 826781B 2009-10 → 2010-08 Figure 827140 827140 2010-08 → — Figure 826782A 826782A 2009-10 → 2010-08 Figure 827141 827141 2010-08 → — Figure 826783A 826783A 2009-10 → — Figure 826784A 826784A 2009-10 → — Figure 826785A 826785A 2009-10 → — Figure 826786 826786 2009-10 → — Figure 826860E 826860E 2009-10 → — Figure 826861E 826861E 2009-10 → — Figure 827792B 827792B 2009-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82184A Wire, Luggage Room, NO.4
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345 Diode
82345A Diode
82345B Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
82825C Connector, Wiring Harness
82825D Connector, Wiring Harness
82825E Connector, Wiring Harness
82825F Connector, Wiring Harness
82825G Connector, Wiring Harness
82825H Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
