Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

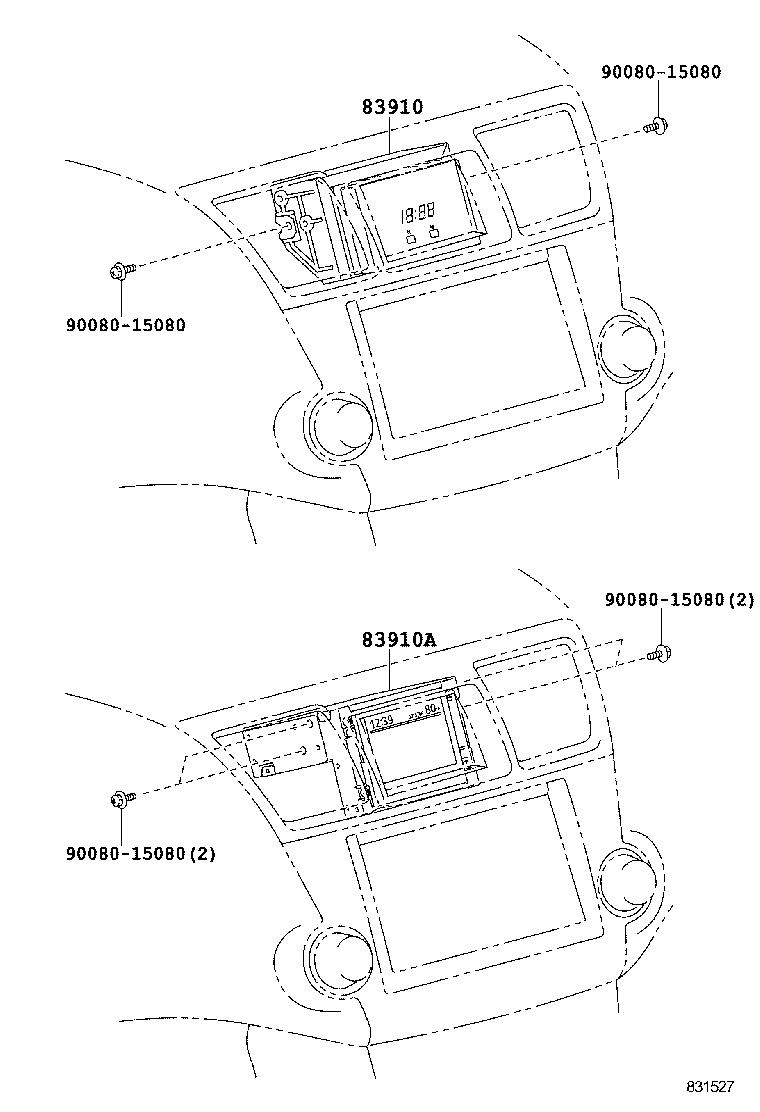

Figure 831526 831526 2009-10 → — Figure 831527 831527 2009-10 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83138G Glass, Combination Meter
83910 Clock Assy
83910A Clock Assy, W/Multi Information Display
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
