Toyota Highlander (NAP)
2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States
Supported model
Data version 2014-07

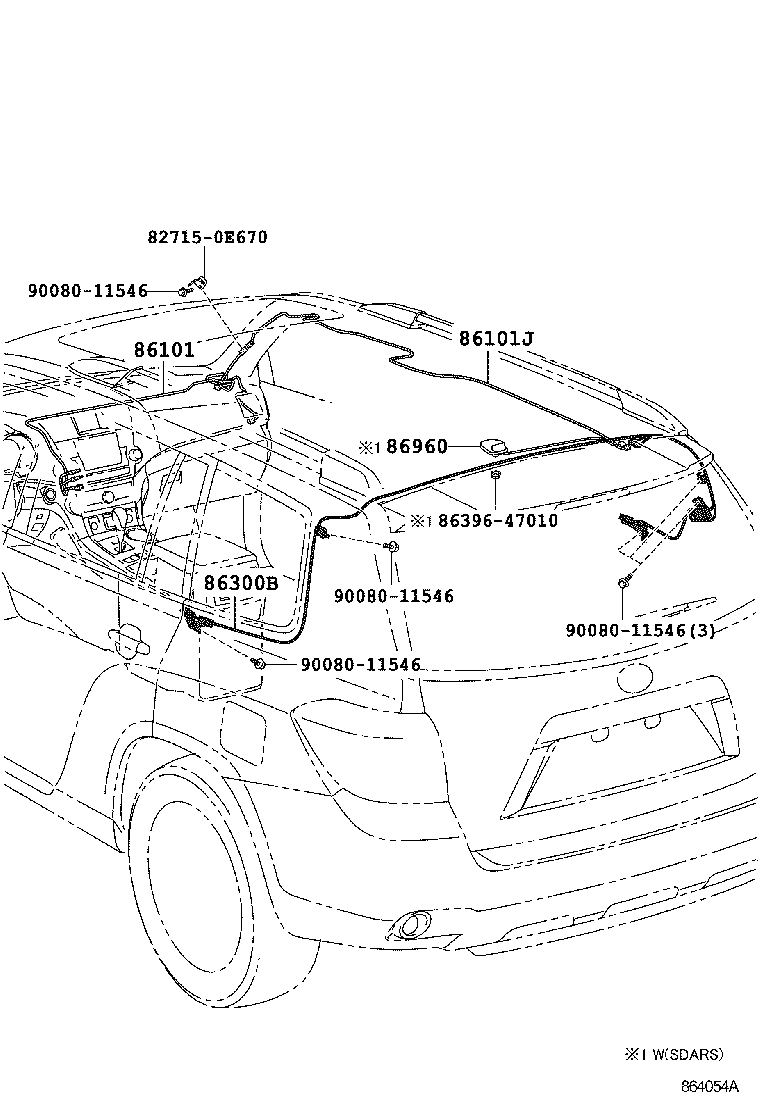

Antenna
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300 | Antenna Assy, W/Holder |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86309B | Pole Sub-assy, Pull Top Antenna |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
| 863A2 | Tool, Pole Antenna |
| 86960 | Antenna Assy, Satellite Radio |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
