Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

14 part groups · 6 illustrations

Illustrations

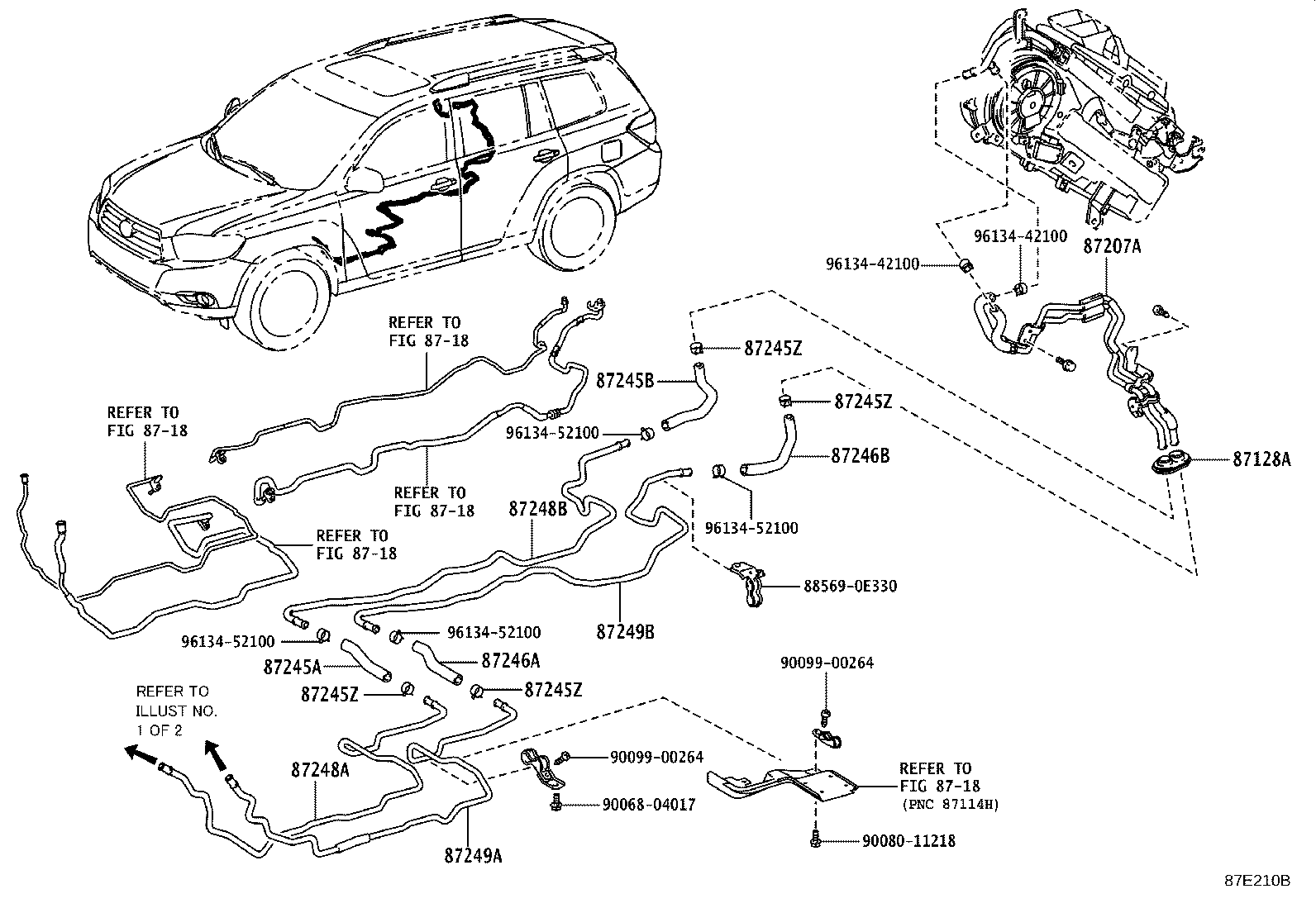

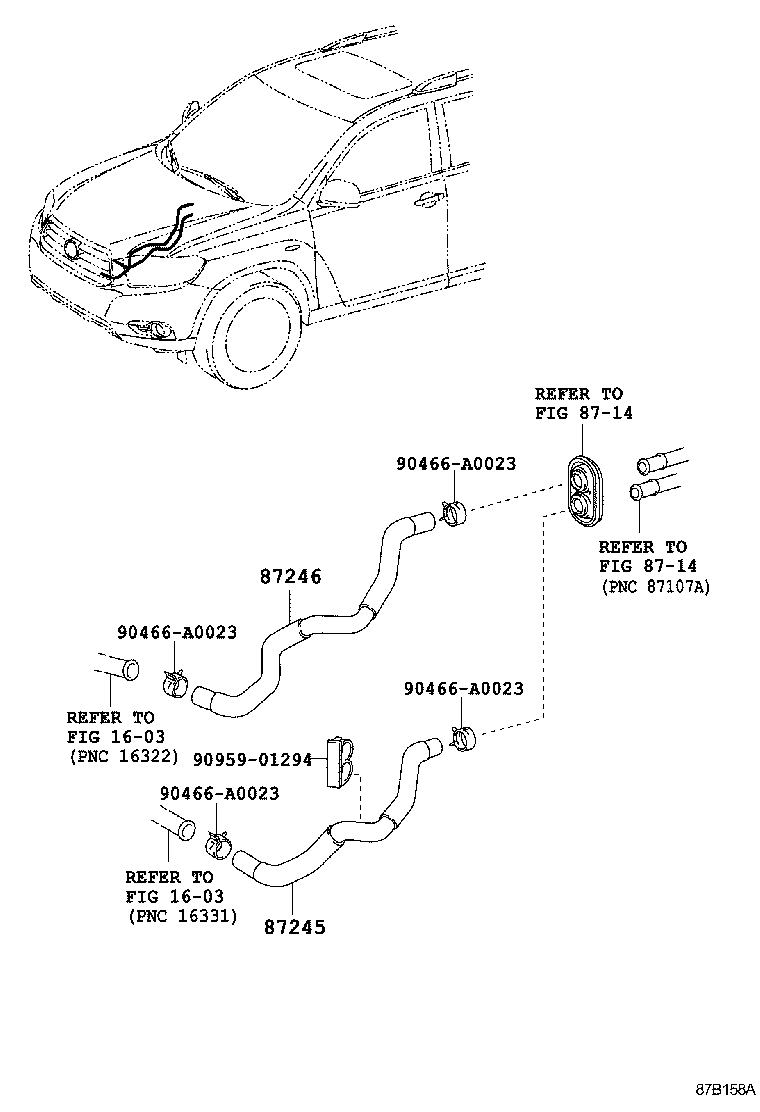

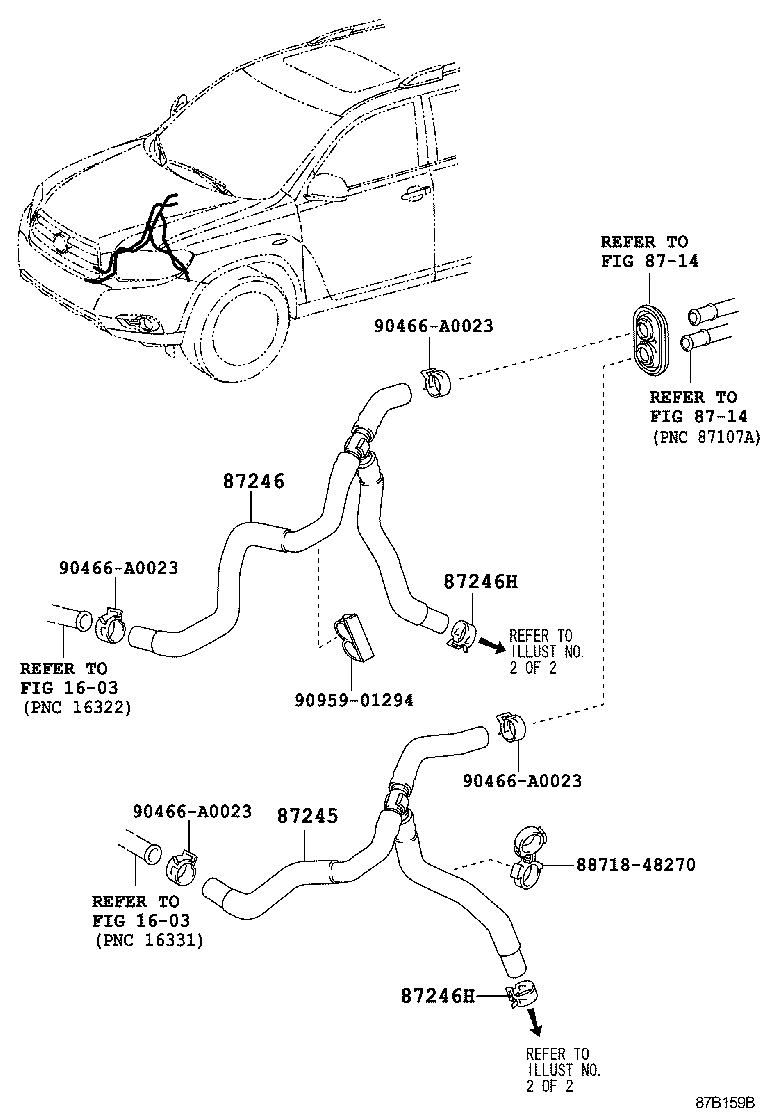

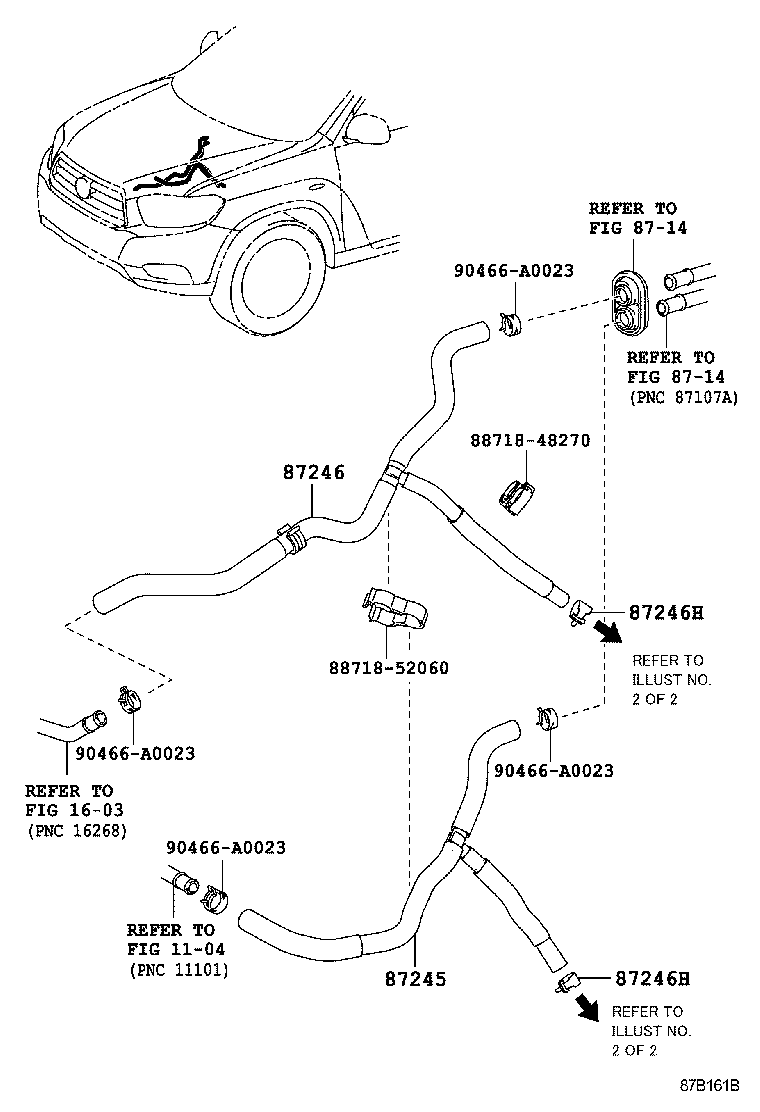

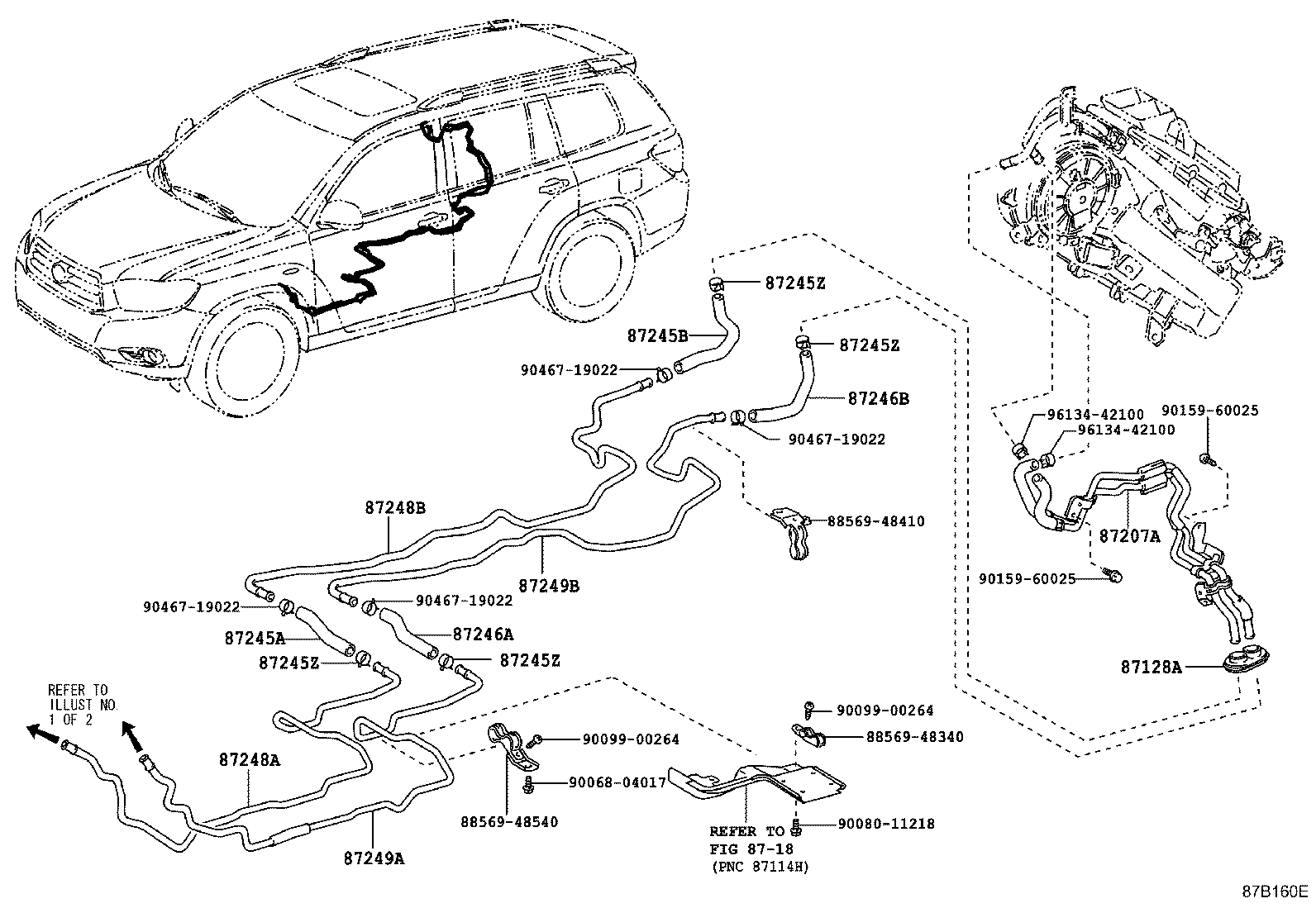

Figure 87B156A 87B156A 2009-10 → — Figure 87B161B 87B161B 2009-10 → — Figure 87B158A 87B158A 2009-10 → — Figure 87B159B 87B159B 2009-10 → — Figure 87B160E 87B160E 2009-10 → 2012-10 Figure 87E210B 87E210B 2012-10 → —

Part groups

PNCDescription
87128A Grommet, Heater
87207A Pipe & Hose Sub-assy, Water A
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
