Toyota Highlander (NAP)

2009-10 → 2013-12 · chassis ASU40,GSU4# · catalogue 526410 · United States

Supported model Data version 2014-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 12 illustrations

Illustrations

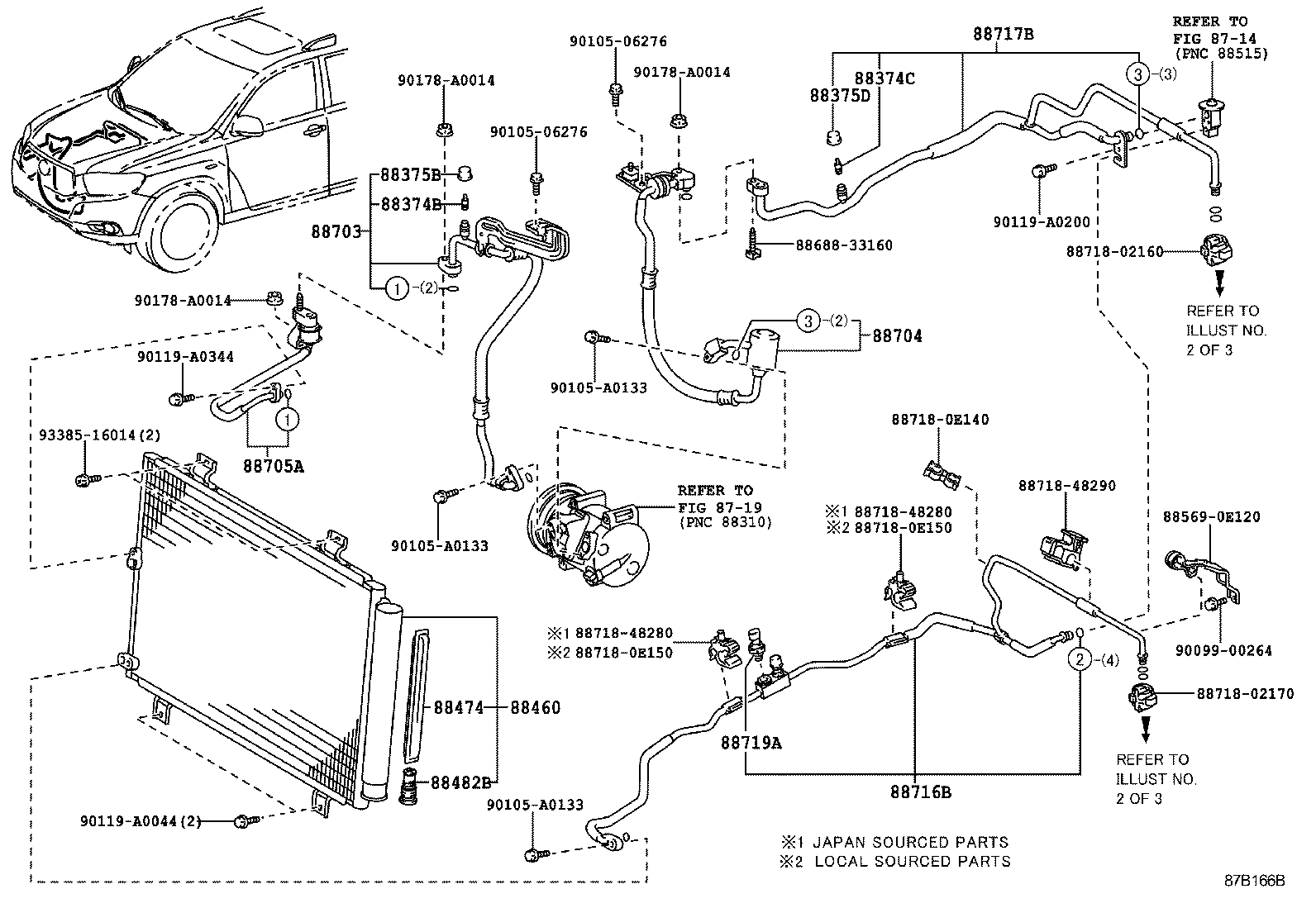

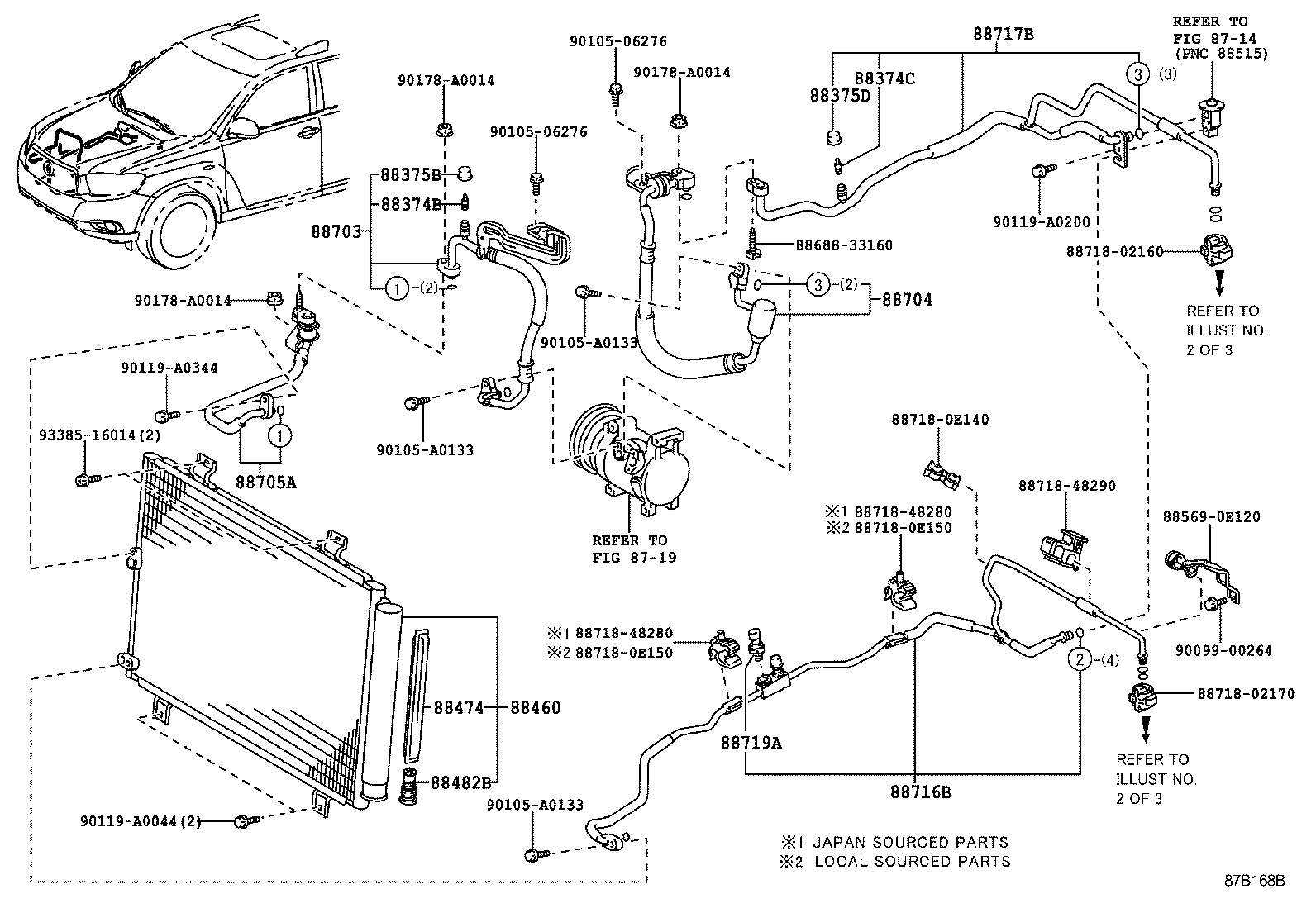

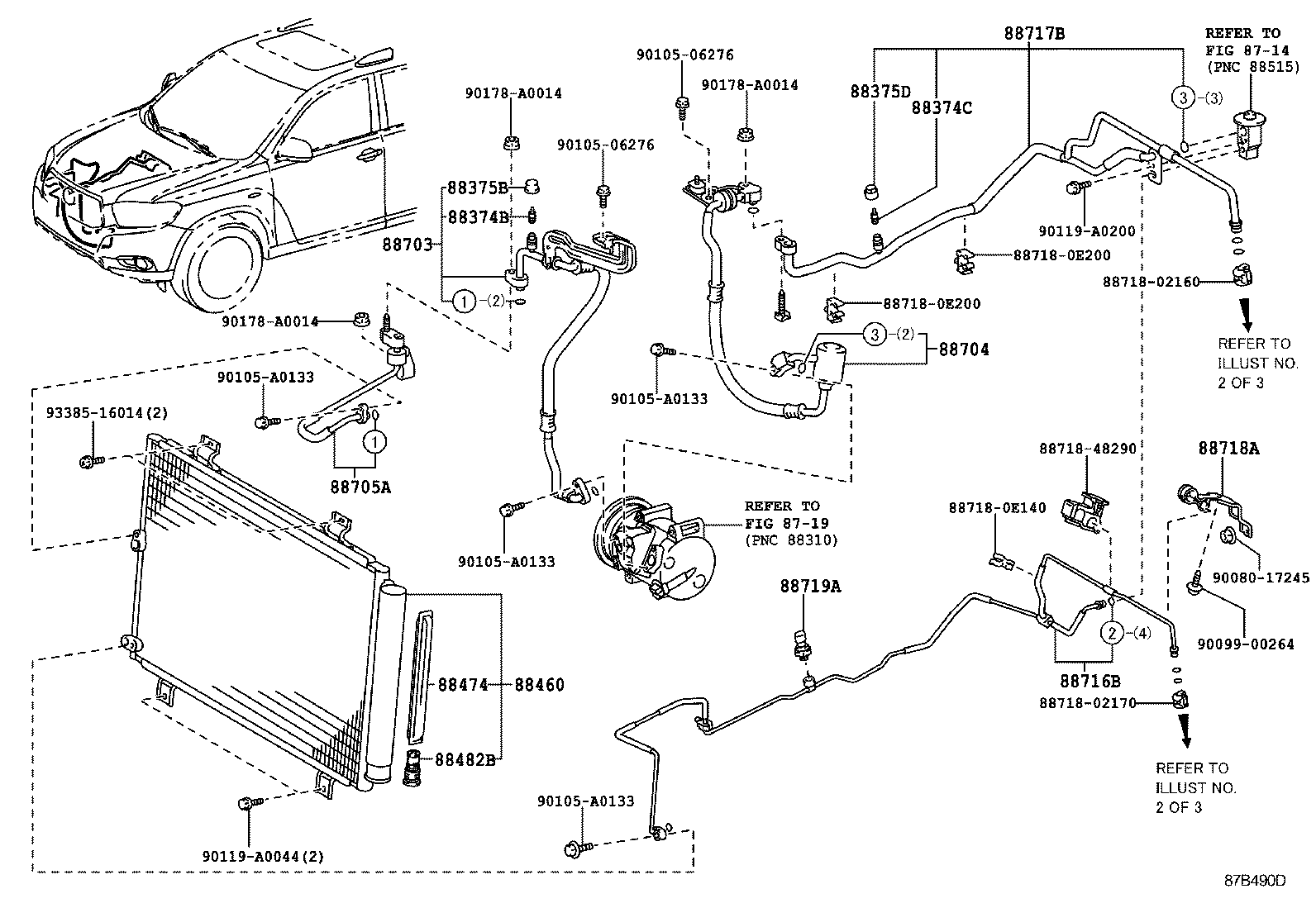

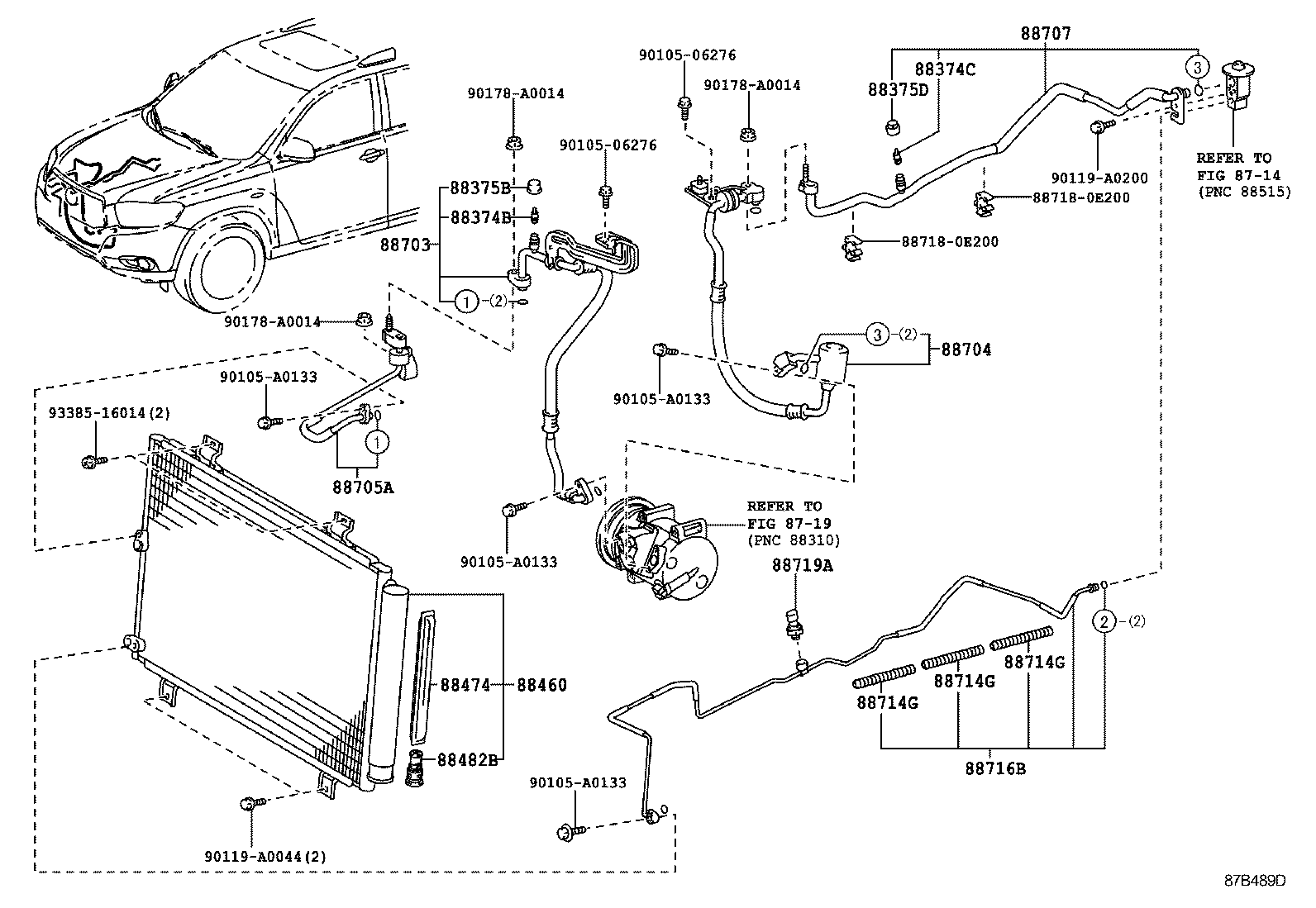

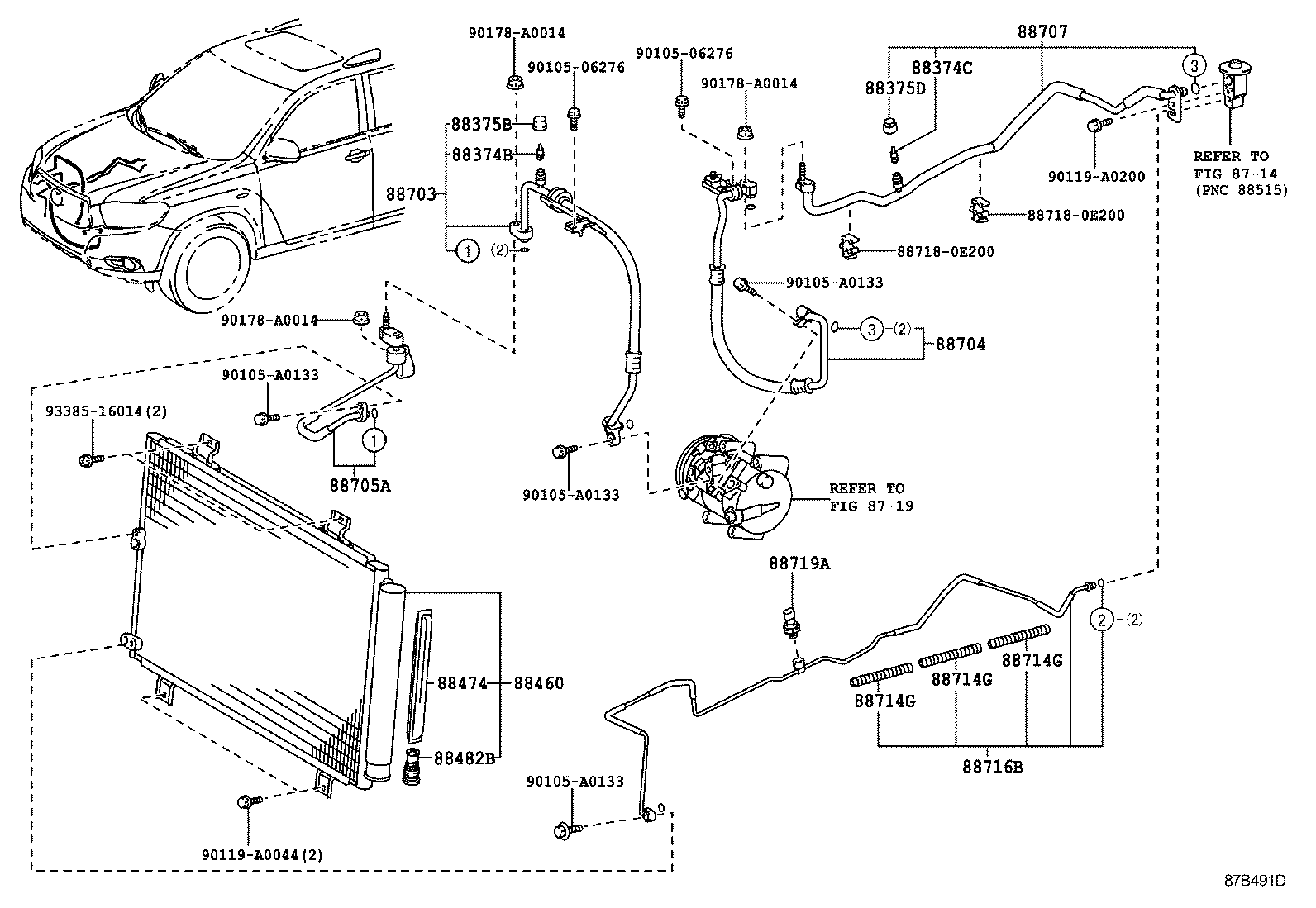

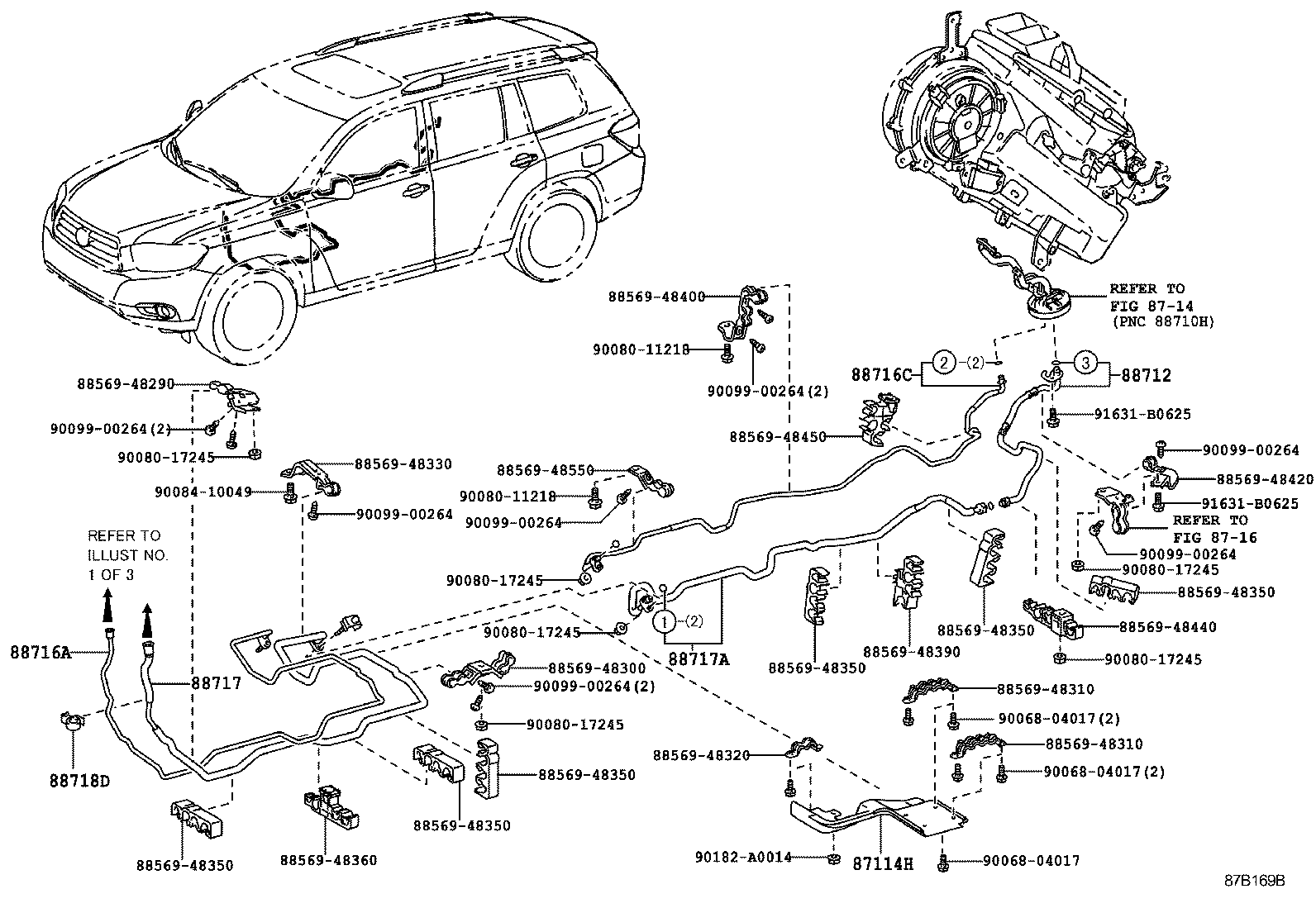

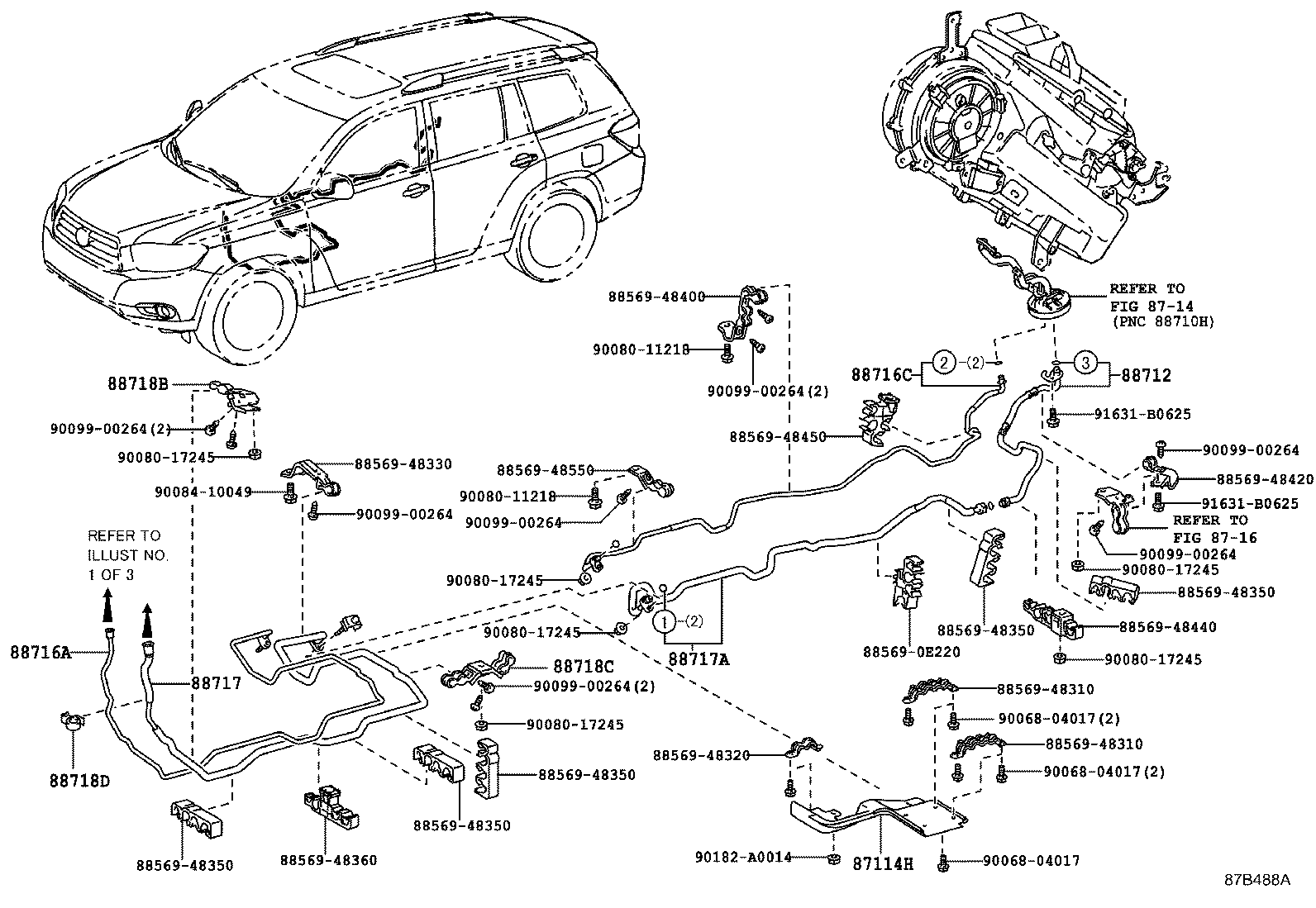

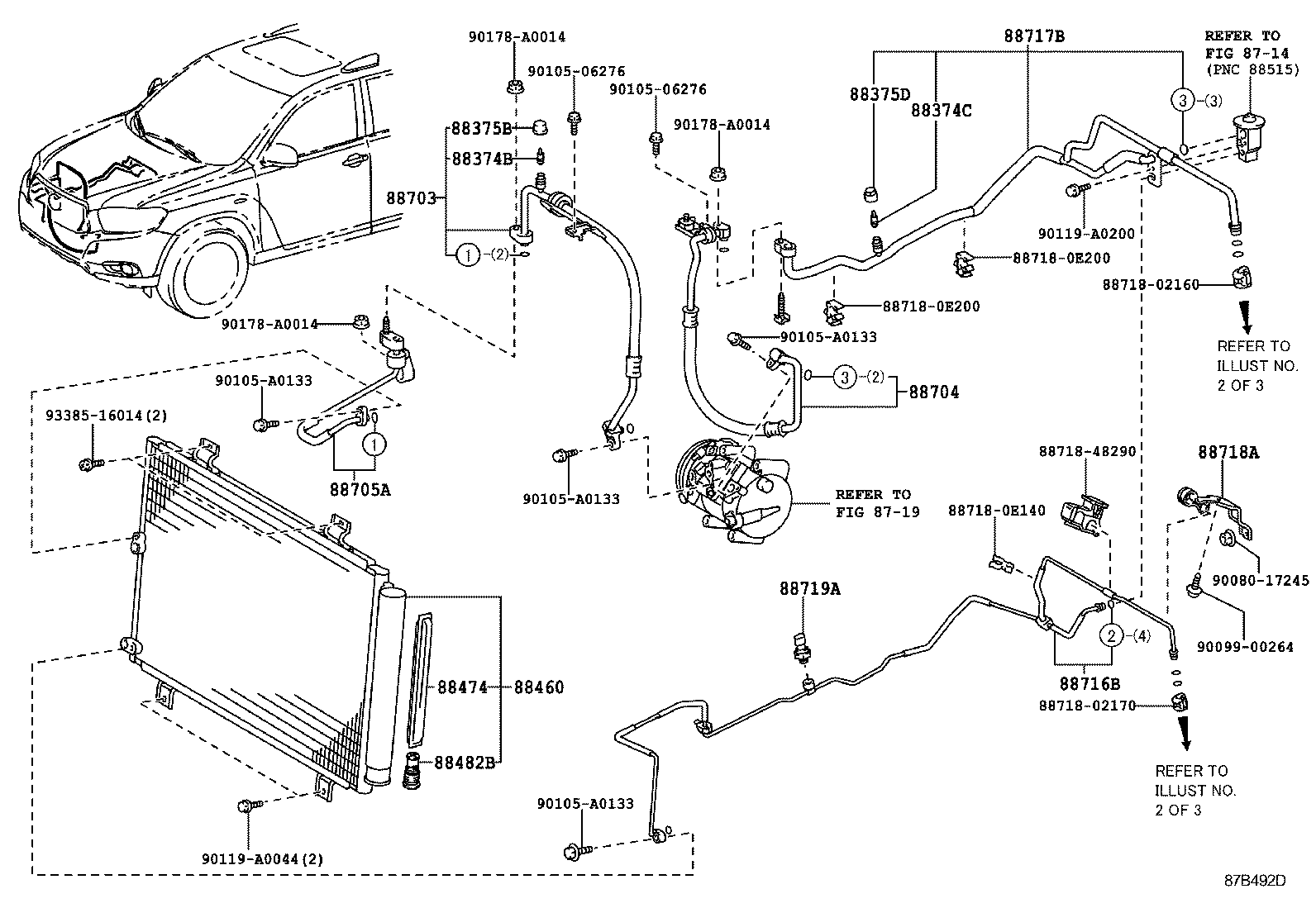

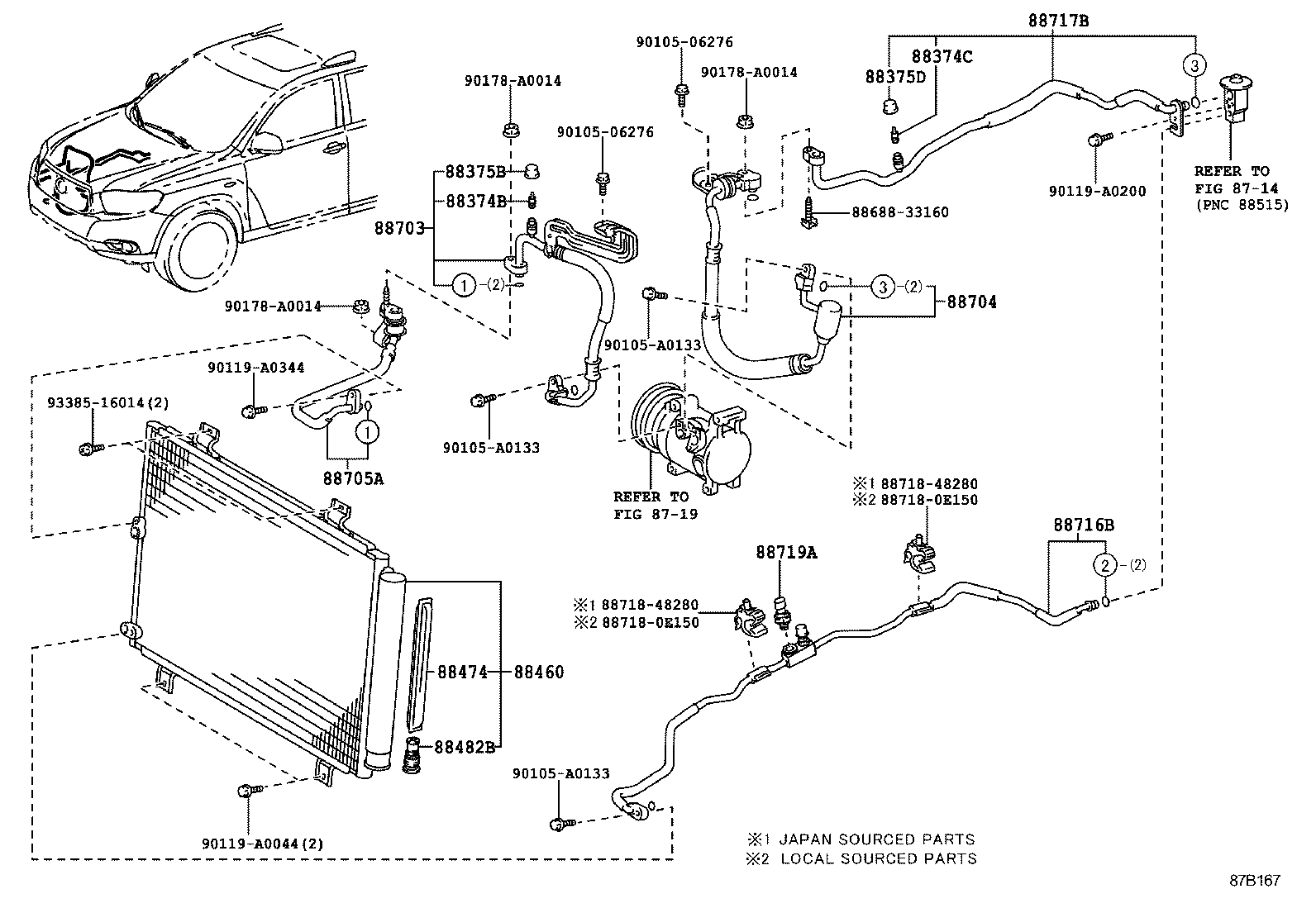

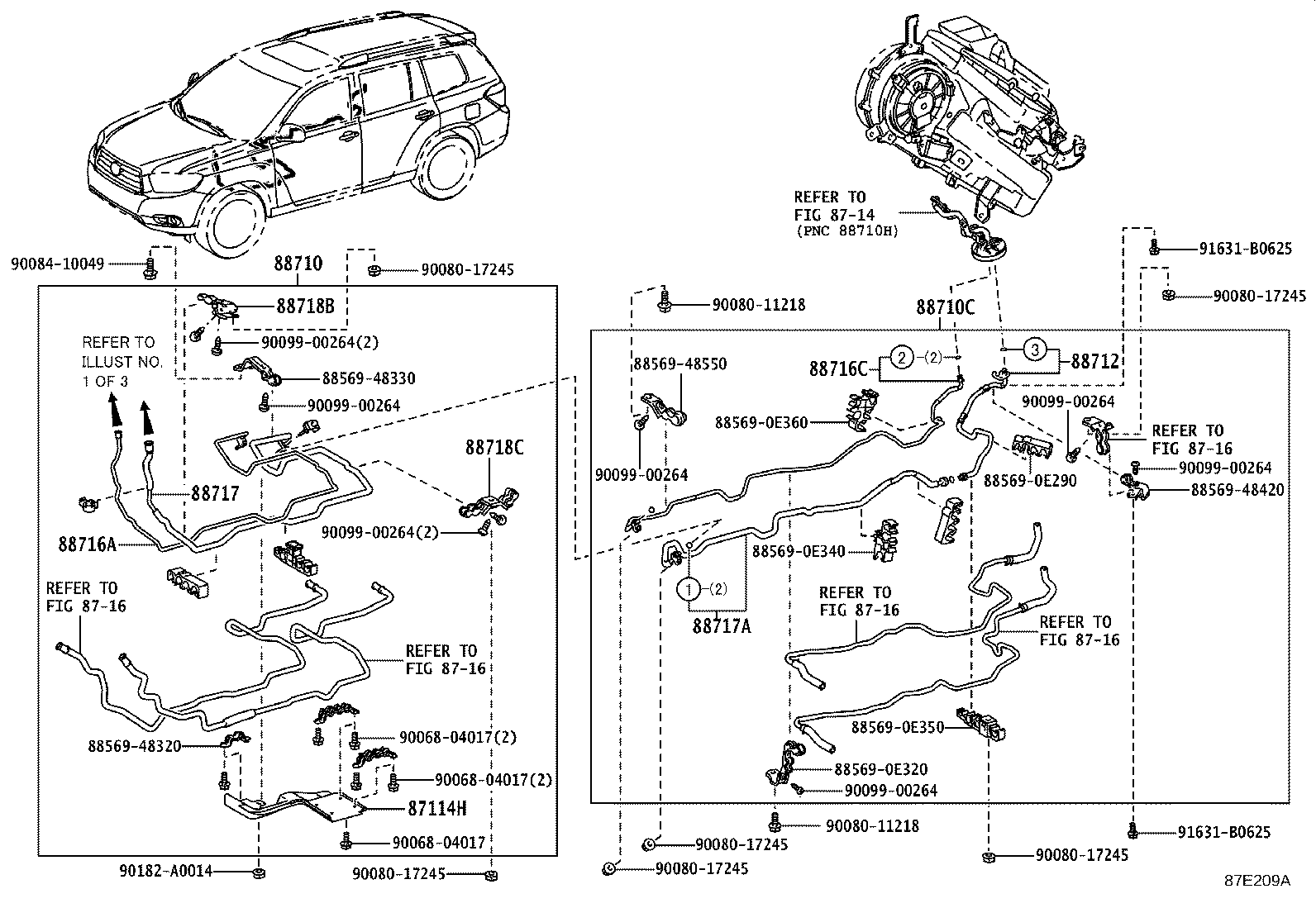

Figure 87B165 87B165 2009-10 → 2010-08 Figure 87B166B 87B166B 2009-10 → 2010-08 Figure 87B167 87B167 2009-10 → 2010-08 Figure 87B168B 87B168B 2009-10 → 2010-08 Figure 87B489D 87B489D 2010-08 → — Figure 87B490D 87B490D 2010-08 → — Figure 87B491D 87B491D 2010-08 → — Figure 87B492D 87B492D 2010-08 → — Figure 87B169B 87B169B 2009-10 → 2010-08 Figure 87B488A 87B488A 2010-08 → 2012-10 Figure 87E209A 87E209A 2012-10 → — Figure 878346C 878346C 2009-10 → —

Part groups

PNCDescription
87114H Cover, Heater
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88482B Cap, Cooler NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88712 Hose, Cooler Refrigerant Suction, NO.1
88714G Insulator, Cooler Refrigerant Pipe, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
