Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

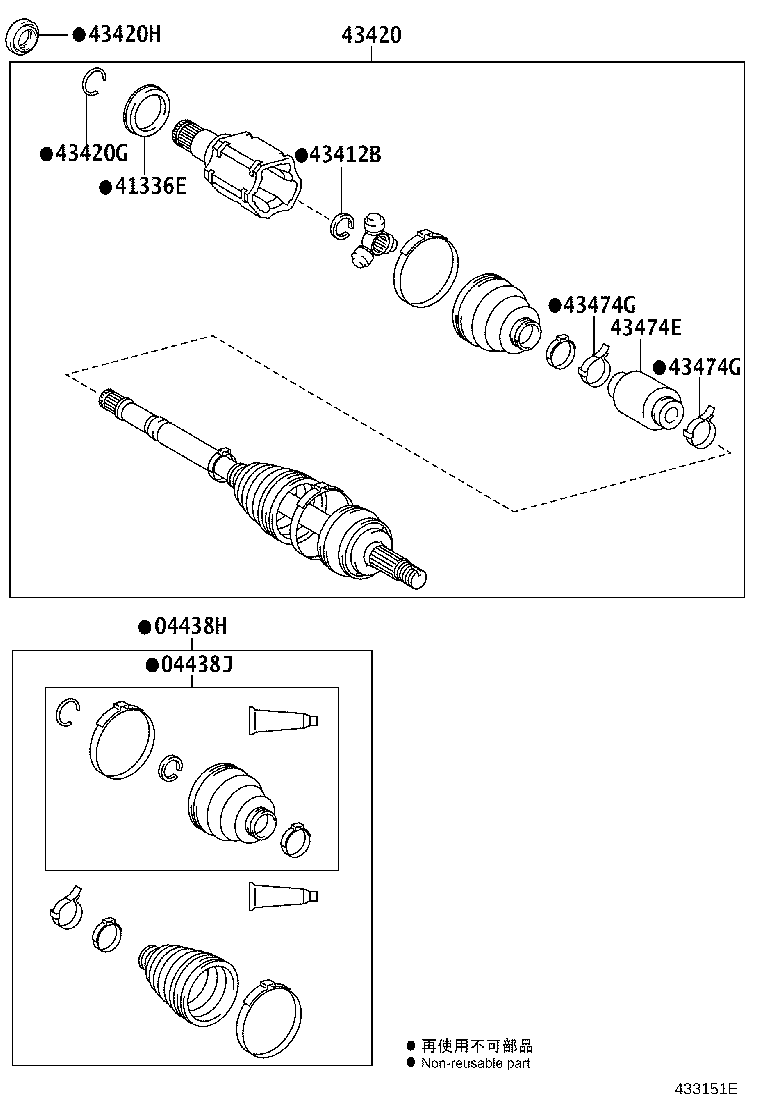

Exploded illustration 433151E 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (5 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (8 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (4 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (2 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (10 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (5 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (11 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (5 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (6 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (8 parts)
433151E · 10 callouts Full size ↗
59 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-06510 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-12 → 2016-08 ended
ASU50 —
04427-06570 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-08 → 2016-11 ended
ASU50 —
04428-06570 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2014-07 → 2016-11 ended
GSU5#,GVU58 —
04428-0W070 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-12 → 2014-07 ended
GSU5#,GVU58 —
04427-06570 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-11 → 2019-02 ended
ASU50 —
04427-06571 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-02 → —
ASU50 —
04427-08150 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-11 → 2019-02 ended
GSU5#,GVU58 —
04427-08151 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-02 → —
GSU5#,GVU58 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-06280 Boot Kit, Front Drive Shaft Inboard Joint, LH
2013-12 → 2016-11 ended
ASU50 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2013-12 → 2016-11 ended
GSU5#,GVU58 —
04437-06280 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-11 → 2019-02 ended
ASU50 —
04437-06281 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-02 → —
ASU50 —
04437-08080 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-11 → 2019-02 ended
GSU5#,GVU58 —
04437-08120 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-02 → —
GSU5#,GVU58 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-06060 Cover, Front Drive Shaft Dust, LH
2013-12 → 2016-08 ended
ASU50 —
41336-06060 Cover, Front Drive Shaft Dust, LH
2013-12 → 2016-11 ended
GSU5# —
41336-07010 Cover, Front Drive Shaft Dust, LH
2014-01 → 2016-11 ended
GVU58 —
41336-06060 Cover, Front Drive Shaft Dust, LH
2016-11 → 2019-11 ended
ASU50 —
41336-07010 Cover, Front Drive Shaft Dust, LH
2016-11 → 2019-11 ended
GVU58 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
43425-06450 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-02 → 2019-11 ended
GSU5#,GVU58 —
43425-06540 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-02 → 2019-11 ended
ASU50 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2016-11 → 2019-02 ended
ASU50,GSU5#,GVU58 —
43420 — Shaft Assy, Front Drive, LH
43420-0E100 Shaft Assy, Front Drive, LH
2013-12 → 2016-11 ended
GSU5# —
43420-0E110 Shaft Assy, Front Drive, LH
2014-01 → 2016-11 ended
GVU58 —
43420-0T020 Shaft Assy, Front Drive, LH
2013-12 → 2016-08 ended
ASU50 —
43420-0T021 Shaft Assy, Front Drive, LH
2016-08 → 2016-11 ended
ASU50 —
43420-0E150 Shaft Assy, Front Drive, LH
2016-11 → 2019-08 ended
GSU5# —
43420-0E151 Shaft Assy, Front Drive, LH
2019-09 → 2019-11 ended
GSU5# —
43420-0E160 Shaft Assy, Front Drive, LH
2016-11 → 2019-08 ended
GVU58 —
43420-0E161 Shaft Assy, Front Drive, LH
2019-09 → 2019-11 ended
GVU58 —
43420-0T021 Shaft Assy, Front Drive, LH
2016-11 → 2019-08 ended
ASU50 —
43420-0T022 Shaft Assy, Front Drive, LH
2019-09 → 2019-11 ended
ASU50 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2016-11 → 2019-11 ended
ASU50,GSU5#,GVU58 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-50045 Oil Seal, Front Drive Shaft, LH
2013-12 → 2015-01 ended
GSU5# —
90311-50045 note Oil Seal, Front Drive Shaft, LH
2013-12 → 2016-11 ended
ASU50 —
90311-50053 Oil Seal, Front Drive Shaft, LH
2014-01 → 2016-11 ended
GVU58 —
90311-A0021 note Oil Seal, Front Drive Shaft, LH
2013-12 → 2016-11 ended
ASU50 —
90311-A0021 note Oil Seal, Front Drive Shaft, LH
2015-01 → 2016-11 ended
GSU5# —
90311-50045 note Oil Seal, Front Drive Shaft, LH
2016-11 → 2019-03 ended
ASU50 —
90311-50053 Oil Seal, Front Drive Shaft, LH
2016-11 → 2019-01 ended
GVU58 —
90311-50059 Oil Seal, Front Drive Shaft, LH
2016-11 → —
GSU5# —
90311-50063 Oil Seal, Front Drive Shaft, LH
2019-01 → —
GVU58 —
90311-50064 note Oil Seal, Front Drive Shaft, LH
2019-04 → —
ASU50 —
90311-A0021 note Oil Seal, Front Drive Shaft, LH
2016-11 → 2017-09 ended
ASU50 —
43474E — Damper, Front Drive Shaft, LH
43474-06090 Damper, Front Drive Shaft, LH
2013-12 → 2014-07 ended
GSU5# —
43474-06090 Damper, Front Drive Shaft, LH
2013-12 → 2016-08 ended
ASU50 —
43474-06310 Damper, Front Drive Shaft, LH
2014-07 → 2016-11 ended
GSU5# —
43474-06310 Damper, Front Drive Shaft, LH
2016-08 → 2016-11 ended
ASU50 —
43474-0E080 Damper, Front Drive Shaft, LH
2014-07 → 2016-11 ended
GVU58 —
43474-0W040 Damper, Front Drive Shaft, LH
2014-01 → 2014-07 ended
GVU58 —
43474-06310 Damper, Front Drive Shaft, LH
2016-11 → 2019-11 ended
ASU50,GSU5# —
43474-0E080 Damper, Front Drive Shaft, LH
2016-11 → 2019-11 ended
GVU58 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2013-12 → 2014-07 ended
GSU5#,GVU58 —
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2013-12 → 2016-08 ended
ASU50 —
42345-06790 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2014-07 → 2016-11 ended
GSU5#,GVU58 —
42345-06790 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2016-08 → 2016-11 ended
ASU50 —
42345-06790 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2016-11 → 2019-11 ended
ASU50,GSU5#,GVU58 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
