Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11

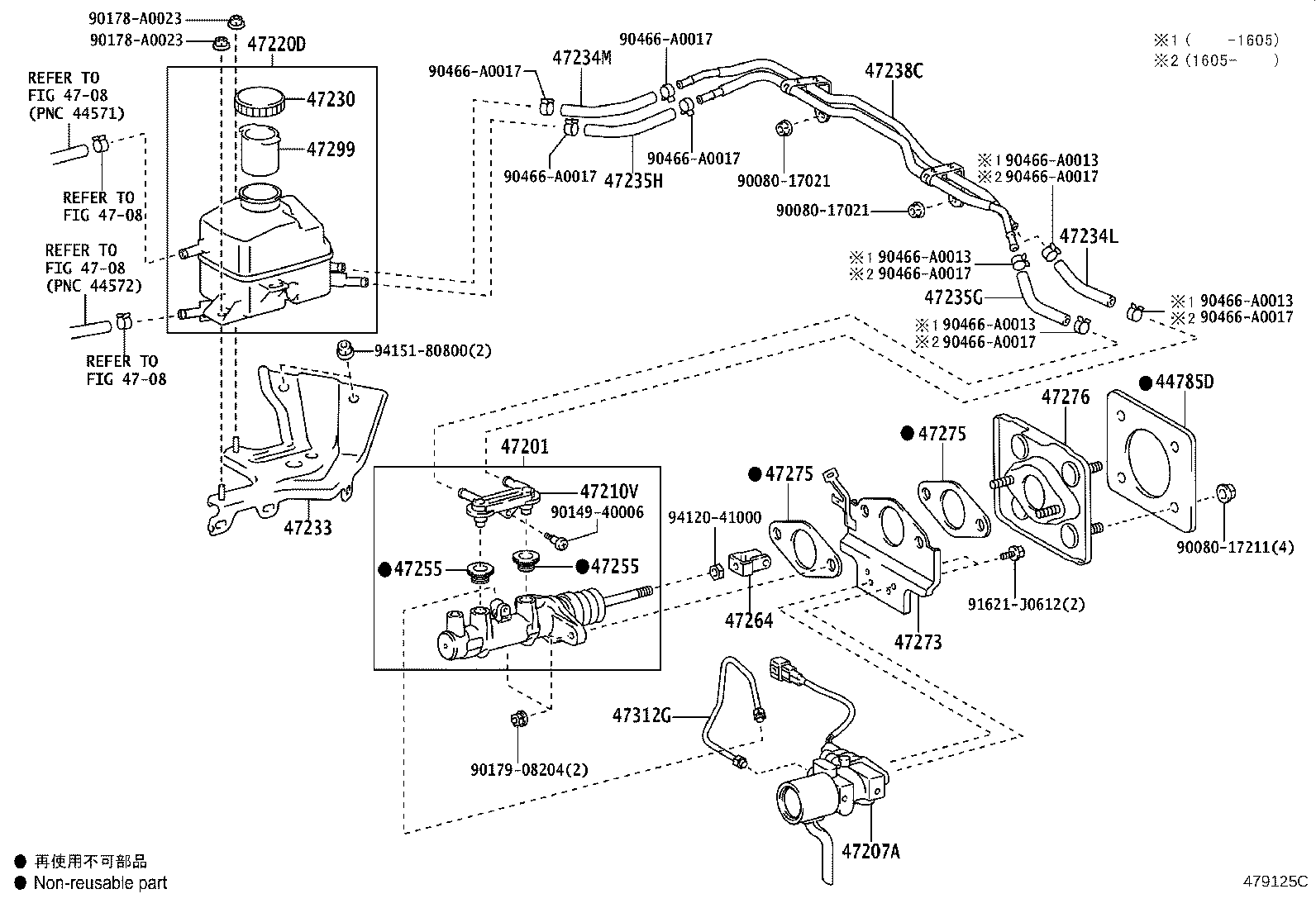

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44785D — Gasket, Brake Master Cylinder | ||||
| 44785-0E020 |
Gasket, Brake Master Cylinder
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 44785-0E020 |
Gasket, Brake Master Cylinder
2016-11 → —
|
GVU58 | — | |
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-48202 |
Cylinder Sub-assy, Brake Master
2013-12 → 2016-11
ended
|
ASU50,GSU5# | — | |
| 47201-48210 |
Cylinder Sub-assy, Brake Master
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47201-08080 |
Cylinder Sub-assy, Brake Master
2017-09 → 2018-01
ended
|
ASU50,GSU5# | — | |
| 47201-0E060 |
Cylinder Sub-assy, Brake Master
2018-02 → —
|
ASU50,GSU5# | — | |
| 47201-48202 |
Cylinder Sub-assy, Brake Master
2016-11 → 2017-08
ended
|
ASU50,GSU5# | — | |
| 47201-48210 |
Cylinder Sub-assy, Brake Master
2016-11 → —
|
GVU58 | — | |
| 47207A — Cylinder Sub-assy, Brake Stroke Simulator | ||||
| 47207-48070 |
Cylinder Sub-assy, Brake Stroke Simulator
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47207-48070 |
Cylinder Sub-assy, Brake Stroke Simulator
2016-11 → —
|
GVU58 | — | |
| 47210V — Union(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AM003 |
Union(FOR BRAKE MASTER CYLINDER)
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 90015-AM003 |
Union(FOR BRAKE MASTER CYLINDER)
2016-11 → —
|
GVU58 | — | |
| 47220D — Reservoir Assy, Brake Master Cylinder | ||||
| 47220-0E070 |
Reservoir Assy, Brake Master Cylinder
2013-12 → 2016-11
ended
|
ASU50,GSU5# | — | |
| 47220-48220 |
Reservoir Assy, Brake Master Cylinder
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47220-0E070 |
Reservoir Assy, Brake Master Cylinder
2016-11 → —
|
ASU50,GSU5# | — | |
| 47220-48220 |
Reservoir Assy, Brake Master Cylinder
2016-11 → —
|
GVU58 | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-01030 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2013-12 → 2014-12
ended
|
ASU50,GSU5# | — | |
| 47230-01031 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2014-12 → 2016-11
ended
|
ASU50,GSU5# | — | |
| 47230-58010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47230-01031 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2016-11 → —
|
ASU50,GSU5# | — | |
| 47230-11010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2017-04 → —
|
GVU58 | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2016-12 → 2017-04
ended
|
GVU58 | — | |
| 47230-58010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2016-11 → 2016-12
ended
|
GVU58 | — | |
| 47233 — Bracket, Reservoir | ||||
| 47233-0E040 |
Bracket, Reservoir
2013-12 → 2016-11
ended
|
ASU50,GSU5# | — | |
| 47233-48140 |
Bracket, Reservoir
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47233-0E040 |
Bracket, Reservoir
2016-11 → —
|
ASU50,GSU5# | — | |
| 47233-48140 |
Bracket, Reservoir
2016-11 → —
|
GVU58 | — | |
| 47234L — Hose, Reservoir, NO.1 | ||||
| 47234-48140 |
Hose, Reservoir, NO.1
2014-01 → 2015-05
ended
|
GVU58 | — | |
| 47234-48141 |
Hose, Reservoir, NO.1
2015-06 → 2016-11
ended
|
GVU58 | — | |
| 47234-48210 |
Hose, Reservoir, NO.1
2013-12 → 2016-11
ended
|
ASU50,GSU5# | — | |
| 47234-48210 |
Hose, Reservoir, NO.1
2016-11 → —
|
ASU50,GSU5# | — | |
| 47234-48310 |
Hose, Reservoir, NO.1
2017-01 → —
|
GVU58 | — | |
| 47234M — Hose, Reservoir, NO.1 | ||||
| 47234-48150 |
Hose, Reservoir, NO.1
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47234-48150 |
Hose, Reservoir, NO.1
2016-11 → —
|
GVU58 | — | |
| 47235G — Hose, Reservoir, NO.2 | ||||
| 47235-48100 |
Hose, Reservoir, NO.2
2014-01 → 2015-05
ended
|
GVU58 | — | |
| 47235-48101 |
Hose, Reservoir, NO.2
2015-06 → 2016-11
ended
|
GVU58 | — | |
| 47235-48170 |
Hose, Reservoir, NO.2
2017-01 → —
|
GVU58 | — | |
| 47235H — Hose, Reservoir, NO.2 | ||||
| 47235-48110 |
Hose, Reservoir, NO.2
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47235-48110 |
Hose, Reservoir, NO.2
2016-11 → —
|
GVU58 | — | |
| 47238C — Tube, Reservoir | ||||
| 47238-0E010 |
Tube, Reservoir
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47238-0E010 |
Tube, Reservoir
2016-11 → —
|
GVU58 | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2013-12 → 2016-11
ended
|
ASU50,GSU5# | — | |
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2016-11 → —
|
GVU58 | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2016-11 → —
|
ASU50,GSU5# | — | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-63020 |
Clevis, Master Cylinder Push Rod
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47264-63020 |
Clevis, Master Cylinder Push Rod
2016-11 → —
|
GVU58 | — | |
| 47273 — Bracket, Brake Stroke Simulator | ||||
| 47273-48010 |
Bracket, Brake Stroke Simulator
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47273-48010 |
Bracket, Brake Stroke Simulator
2016-11 → —
|
GVU58 | — | |
| 47275 — Gasket, Brake Master Cylinder | ||||
| 47275-12020 |
Gasket, Brake Master Cylinder
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47275-12020 |
Gasket, Brake Master Cylinder
2016-11 → —
|
GVU58 | — | |
| 47276 — Bracket, Brake Master Cylinder | ||||
| 47276-30040 |
Bracket, Brake Master Cylinder
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47276-30040 |
Bracket, Brake Master Cylinder
2016-11 → —
|
GVU58 | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2013-12 → 2016-11
ended
|
ASU50,GSU5# | — | |
| 47299-48180 |
Strainer, Brake Master Cylinder Reservoir
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2016-11 → —
|
ASU50,GSU5# | — | |
| 47299-48180 |
Strainer, Brake Master Cylinder Reservoir
2016-11 → —
|
GVU58 | — | |
| 47312G — Tube, Brake Stroke Simulator | ||||
| 44255-48070 |
Tube, Brake Stroke Simulator
2014-01 → 2016-11
ended
|
GVU58 | — | |
| 44255-48070 |
Tube, Brake Stroke Simulator
2016-11 → —
|
GVU58 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
