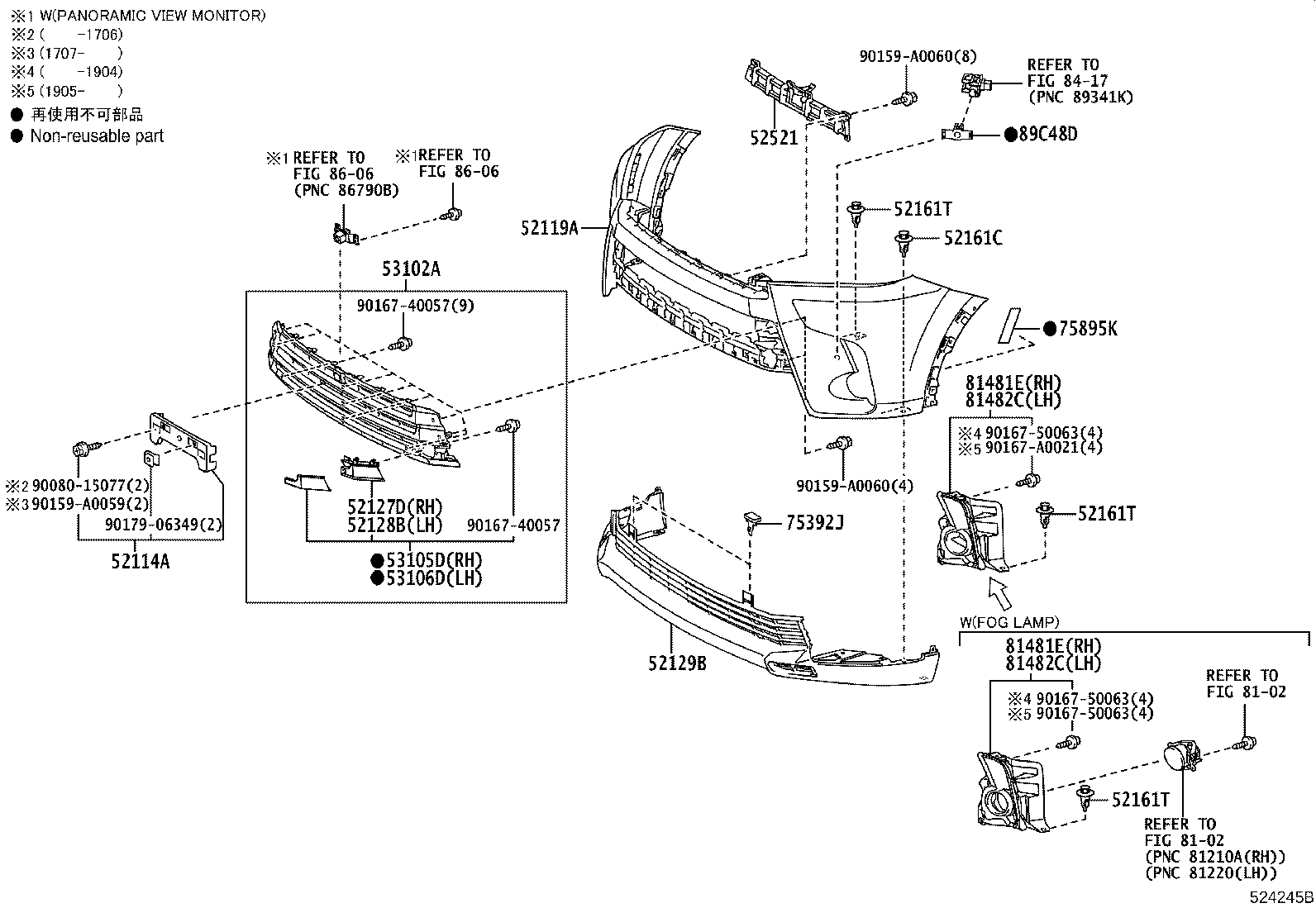

Exploded illustration 524245B 8606 — not listed in this catalogue 8417 — not listed in this catalogue 8102 — not listed in this catalogue 8606 — not listed in this catalogue 8102 — not listed in this catalogue 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (2 parts) 52119A — COVER, FRONT BUMPER (6 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (2 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (2 parts) 52129B — COVER, FRONT BUMPER, LOWER (2 parts) 52161C — PIECE, FRONT BUMPER (2 parts) 52161T — PIECE, FRONT BUMPER (4 parts) 52161T — PIECE, FRONT BUMPER (4 parts) 52161T — PIECE, FRONT BUMPER (4 parts) 52521 — RETAINER, FRONT BUMPER, UPPER CENTER (1 parts) 53102A — GRILLE SUB-ASSY, RADIATOR, LWR (14 parts) 53105D — GARNISH SUB-ASSY, RADIATOR GRILLE, RH (9 parts) 53106D — GARNISH SUB-ASSY, RADIATOR GRILLE, LH (9 parts) 75392J — RETAINER, OUTSIDE MOULDING (2 parts) 75895K — TAPE, MOULDING, NO.1 (2 parts) 81481E — COVER, FOG LAMP, RH (8 parts) 81482C — COVER, FOG LAMP, LH (8 parts) 9008015077 — not listed in this catalogue 90159A0060 — not listed in this catalogue 90159A0060 — not listed in this catalogue 9016740057 — not listed in this catalogue 9016740057 — not listed in this catalogue 9016750063 — not listed in this catalogue 81481E — COVER, FOG LAMP, RH (8 parts) 81482C — COVER, FOG LAMP, LH (8 parts) 9016750063 — not listed in this catalogue 9017906349 — not listed in this catalogue 90159A0059 — not listed in this catalogue 90167A0021 — not listed in this catalogue 9016750063 — not listed in this catalogue 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (2 parts)
524245B · 20 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
52114A — Bracket, Front Bumper Extension Mounting
52114-0E080 Bracket, Front Bumper Extension Mounting
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
52114-0E130 Bracket, Front Bumper Extension Mounting
2016-11 → —
ASU50,GSU5#,GVU58 —
52119A — Cover, Front Bumper
52119-0E925 note Cover, Front Bumper
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
52119-0E937 note Cover, Front Bumper
2016-11 → —
ASU50,GSU5#,GVU58 —
52119-0E938 note Cover, Front Bumper
2016-11 → —
GSU55,GVU58 G —
52119-0E938 note Cover, Front Bumper
2016-11 → —
GSU5#,GVU58 G —
52119-0E938 note Cover, Front Bumper
2018-09 → —
GSU55,GVU58 G —
52119-0E938 note Cover, Front Bumper
2018-09 → —
GSU5#,GVU58 G —
52127D — Cover, Front Bumper Hole, RH
52127-0E925 Cover, Front Bumper Hole, RH
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
52127-0E130 Cover, Front Bumper Hole, RH
2016-11 → —
ASU50,GSU5#,GVU58 —
52128B — Cover, Front Bumper Hole, LH
52128-0E926 Cover, Front Bumper Hole, LH
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
52128-0E130 Cover, Front Bumper Hole, LH
2016-11 → —
ASU50,GSU5#,GVU58 —
52129B — Cover, Front Bumper, Lower
52129-0E010 Cover, Front Bumper, Lower
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
52129-0E030 Cover, Front Bumper, Lower
2016-11 → —
ASU50,GSU5#,GVU58 —
52161C — Piece, Front Bumper
52161-02020 Piece, Front Bumper
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
52161-02020 Piece, Front Bumper
2016-11 → —
ASU50,GSU5#,GVU58 —
52161T — Piece, Front Bumper
52161-02020 Piece, Front Bumper
2013-12 → 2016-11 ended
GSU5#,GVU58 G —
52161-02020 Piece, Front Bumper
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 M,N —
52161-02020 note Piece, Front Bumper
2013-12 → 2016-11 ended
GSU5#,GVU58 G —
52161-02020 Piece, Front Bumper
2016-11 → —
ASU50,GSU5#,GVU58 —
52521 — Retainer, Front Bumper, Upper Center
52521-0E020 Retainer, Front Bumper, Upper Center
2016-11 → —
ASU50,GSU5#,GVU58 —
53102A — Grille Sub-assy, Radiator, Lwr
53102-0E040 Grille Sub-assy, Radiator, Lwr
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
53102-0E070 Grille Sub-assy, Radiator, Lwr
2016-11 → —
ASU50,GSU5#,GVU58 M,N —
53102-0E080 Grille Sub-assy, Radiator, Lwr
2016-11 → —
GSU5#,GVU58 G —
53102-0E080 note Grille Sub-assy, Radiator, Lwr
2016-11 → —
GSU55,GVU58 M —
53102-0E090 note Grille Sub-assy, Radiator, Lwr
2016-11 → —
GSU55,GVU58 G —
53102-0E090 note Grille Sub-assy, Radiator, Lwr
2016-11 → —
GSU5#,GVU58 G —
53102-0E090 note Grille Sub-assy, Radiator, Lwr
2018-09 → —
GSU55,GVU58 G —
53102-0E090 note Grille Sub-assy, Radiator, Lwr
2018-09 → —
GSU5#,GVU58 G —
53102-0E100 note Grille Sub-assy, Radiator, Lwr
2016-11 → —
GSU5# M —
53102-0E100 note Grille Sub-assy, Radiator, Lwr
2019-01 → —
GSU55 M —
53102-0E100 note Grille Sub-assy, Radiator, Lwr
2019-01 → —
GSU5# M —
53102-0E100 note Grille Sub-assy, Radiator, Lwr
2018-09 → —
GSU55 M —
53102-0E100 note Grille Sub-assy, Radiator, Lwr
2018-09 → —
GSU5# M —
53102-0E100 note Grille Sub-assy, Radiator, Lwr
2016-11 → —
GSU55 M —
53105D — Garnish Sub-assy, Radiator Grille, RH
53105-0E010 Garnish Sub-assy, Radiator Grille, RH
2016-11 → —
ASU50,GSU5#,GVU58 M,N —
53105-0E020 note Garnish Sub-assy, Radiator Grille, RH
2016-11 → —
GSU55,GVU58 M —
53105-0E020 Garnish Sub-assy, Radiator Grille, RH
2016-11 → —
GSU5#,GVU58 G —
53105-0E040 note Garnish Sub-assy, Radiator Grille, RH
2016-11 → —
GSU55 M —
53105-0E040 note Garnish Sub-assy, Radiator Grille, RH
2019-01 → —
GSU55 M —
53105-0E040 note Garnish Sub-assy, Radiator Grille, RH
2019-01 → —
GSU5# M —
53105-0E040 note Garnish Sub-assy, Radiator Grille, RH
2018-09 → —
GSU55 M —
53105-0E040 note Garnish Sub-assy, Radiator Grille, RH
2018-09 → —
GSU5# M —
53105-0E040 note Garnish Sub-assy, Radiator Grille, RH
2016-11 → —
GSU5# M —
53106D — Garnish Sub-assy, Radiator Grille, LH
53106-0E010 Garnish Sub-assy, Radiator Grille, LH
2016-11 → —
ASU50,GSU5#,GVU58 M,N —
53106-0E020 Garnish Sub-assy, Radiator Grille, LH
2016-11 → —
GSU5#,GVU58 G —
53106-0E020 note Garnish Sub-assy, Radiator Grille, LH
2016-11 → —
GSU55,GVU58 M —
53106-0E040 note Garnish Sub-assy, Radiator Grille, LH
2016-11 → —
GSU55 M —
53106-0E040 note Garnish Sub-assy, Radiator Grille, LH
2016-11 → —
GSU5# M —
53106-0E040 note Garnish Sub-assy, Radiator Grille, LH
2018-09 → —
GSU5# M —
53106-0E040 note Garnish Sub-assy, Radiator Grille, LH
2018-09 → —
GSU55 M —
53106-0E040 note Garnish Sub-assy, Radiator Grille, LH
2019-01 → —
GSU5# M —
53106-0E040 note Garnish Sub-assy, Radiator Grille, LH
2019-01 → —
GSU55 M —
75392J — Retainer, Outside Moulding
75392-35200 Retainer, Outside Moulding
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
75392-35200 Retainer, Outside Moulding
2016-11 → —
ASU50,GSU5#,GVU58 —
75895K — Tape, Moulding, NO.1
75895-0E010 Tape, Moulding, NO.1
2013-12 → 2016-11 ended
ASU50,GSU5#,GVU58 —
75895-0E010 Tape, Moulding, NO.1
2016-11 → 2017-04 ended
ASU50,GSU5#,GVU58 —
81481E — Cover, Fog Lamp, RH
52030-0E020 note Cover, Fog Lamp, RH
2013-12 → 2016-11 ended
GSU5#,GVU58 G —
52030-0E020 note Cover, Fog Lamp, RH
2013-12 → 2016-11 ended
GSU5# N —
52030-0E020 Cover, Fog Lamp, RH
2013-12 → 2016-11 ended
GSU5# M;GVU58 M,N —
81481-0E140 Cover, Fog Lamp, RH
2013-12 → 2016-11 ended
ASU50,GSU5# N —
81481-0E160 Cover, Fog Lamp, RH
2013-12 → 2016-11 ended
GSU5#,GVU58 G —
52030-0E030 Cover, Fog Lamp, RH
2016-11 → —
GSU5#,GVU58 G,M —
52030-0E030 note Cover, Fog Lamp, RH
2016-11 → —
GSU5# N —
52030-0E040 Cover, Fog Lamp, RH
2016-11 → —
ASU50,GSU5#,GVU58 N —
81482C — Cover, Fog Lamp, LH
52040-0E020 note Cover, Fog Lamp, LH
2013-12 → 2016-11 ended
GSU5#,GVU58 G —
52040-0E020 note Cover, Fog Lamp, LH
2013-12 → 2016-11 ended
GSU5# N —
52040-0E020 Cover, Fog Lamp, LH
2013-12 → 2016-11 ended
GSU5# M;GVU58 M,N —
81482-0E140 Cover, Fog Lamp, LH
2013-12 → 2016-11 ended
ASU50,GSU5# N —
81482-0E160 Cover, Fog Lamp, LH
2013-12 → 2016-11 ended
GSU5#,GVU58 G —
52040-0E030 Cover, Fog Lamp, LH
2016-11 → —
GSU5#,GVU58 G,M —
52040-0E030 note Cover, Fog Lamp, LH
2016-11 → —
GSU5# N —
52040-0E040 Cover, Fog Lamp, LH
2016-11 → —
ASU50,GSU5#,GVU58 N —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-06040 note Retainer, Ultrasonic Sensor, Front Corner
2016-11 → 2019-11 ended
GSU55,GVU58 G —
89348-06040 note Retainer, Ultrasonic Sensor, Front Corner
2016-11 → 2019-11 ended
GSU5#,GVU58 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
