Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11

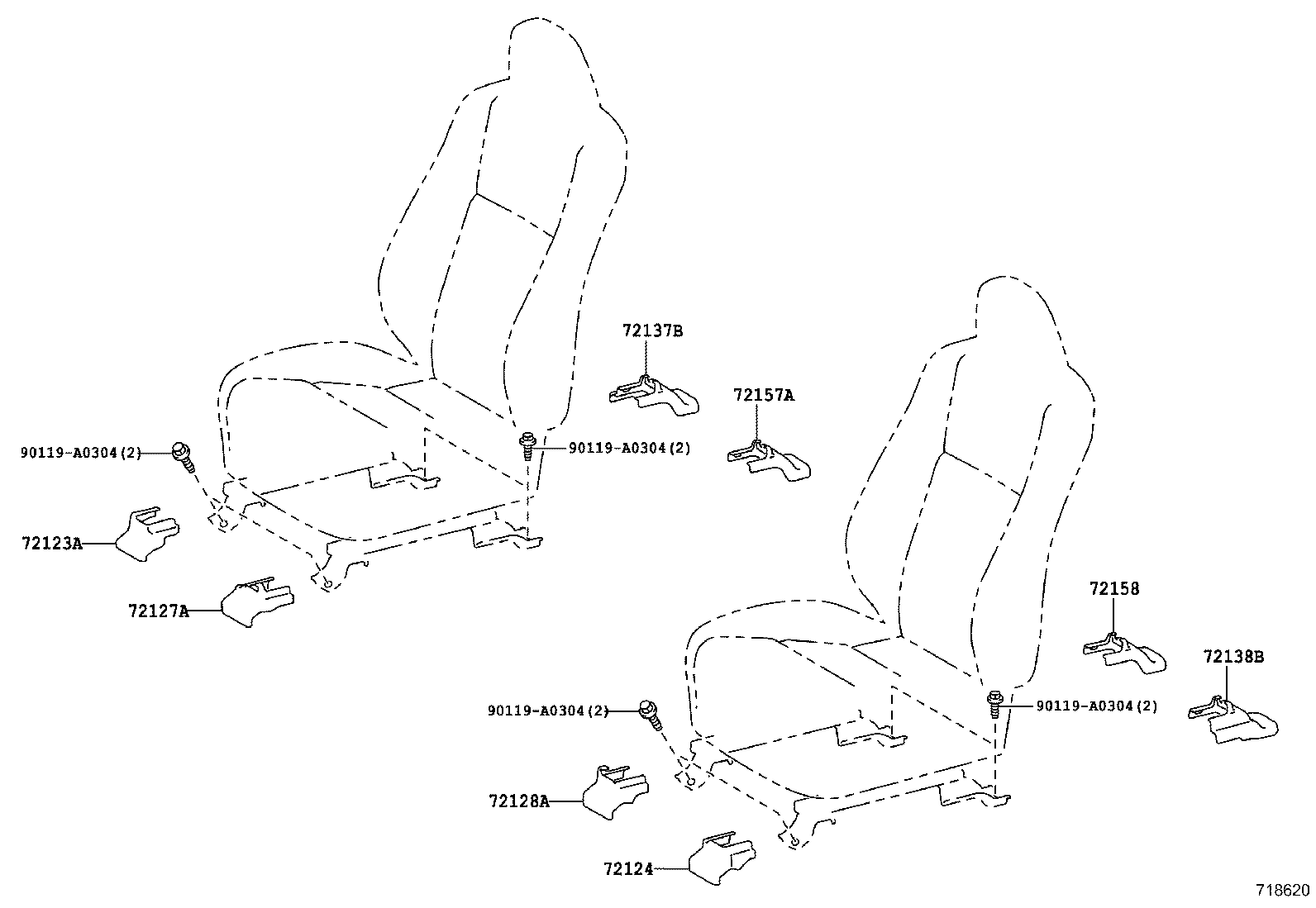

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 72123A — Cover, Seat Track Bracket, Outer Front RH | ||||
| 72123-0E090-C0 note |
Cover, Seat Track Bracket, Outer Front RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 72123-0E090-C0 note |
Cover, Seat Track Bracket, Outer Front RH
2016-11 → —
|
ASU50 | — | |
| 72123-0E090-C0 note |
Cover, Seat Track Bracket, Outer Front RH
2016-11 → —
|
GSU5#,GVU58 M,N | — | |
| 72123-0E090-C0 note |
Cover, Seat Track Bracket, Outer Front RH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 72124 — Cover, Seat Track Bracket, Outer Front LH | ||||
| 72124-0E080-C0 note |
Cover, Seat Track Bracket, Outer Front LH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 72124-0E080-C0 note |
Cover, Seat Track Bracket, Outer Front LH
2016-11 → —
|
ASU50 | — | |
| 72124-0E080-C0 note |
Cover, Seat Track Bracket, Outer Front LH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 72124-0E080-C0 note |
Cover, Seat Track Bracket, Outer Front LH
2016-11 → —
|
GSU5#,GVU58 M,N | — | |
| 72127A — Cover, Seat Track Bracket, Inner Front RH | ||||
| 72127-0E050-C0 note |
Cover, Seat Track Bracket, Inner Front RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 72127-0E050-C0 note |
Cover, Seat Track Bracket, Inner Front RH
2016-11 → —
|
ASU50 | — | |
| 72127-0E050-C0 note |
Cover, Seat Track Bracket, Inner Front RH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 72127-0E050-C0 note |
Cover, Seat Track Bracket, Inner Front RH
2016-11 → —
|
GSU5#,GVU58 M,N | — | |
| 72128A — Cover, Seat Track Bracket, Inner Front LH | ||||
| 72128-0E070-C0 note |
Cover, Seat Track Bracket, Inner Front LH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 72128-0E070-C0 note |
Cover, Seat Track Bracket, Inner Front LH
2016-11 → —
|
ASU50 | — | |
| 72128-0E070-C0 note |
Cover, Seat Track Bracket, Inner Front LH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 72128-0E070-C0 note |
Cover, Seat Track Bracket, Inner Front LH
2016-11 → —
|
GSU5#,GVU58 M,N | — | |
| 72137B — Cover, Seat Track, RH | ||||
| 72137-0E160-C0 note |
Cover, Seat Track, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 72137-0E160-C0 note |
Cover, Seat Track, RH
2016-11 → —
|
ASU50 | — | |
| 72137-0E160-C0 note |
Cover, Seat Track, RH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 72137-0E160-C0 note |
Cover, Seat Track, RH
2016-11 → —
|
GSU5#,GVU58 M,N | — | |
| 72138B — Cover, Seat Track, LH | ||||
| 72138-0E090-C0 note |
Cover, Seat Track, LH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 72138-0E090-C0 note |
Cover, Seat Track, LH
2016-11 → —
|
ASU50 | — | |
| 72138-0E090-C0 note |
Cover, Seat Track, LH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 72138-0E090-C0 note |
Cover, Seat Track, LH
2016-11 → —
|
GSU5#,GVU58 M,N | — | |
| 72157A — Cover, Seat Track Bracket, Inner RH | ||||
| 72157-0E050-C0 note |
Cover, Seat Track Bracket, Inner RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 72157-0E050-C0 note |
Cover, Seat Track Bracket, Inner RH
2016-11 → —
|
ASU50 | — | |
| 72157-0E050-C0 note |
Cover, Seat Track Bracket, Inner RH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 72157-0E050-C0 note |
Cover, Seat Track Bracket, Inner RH
2016-11 → —
|
GSU5#,GVU58 M,N | — | |
| 72158 — Cover, Seat Track Bracket, Inner LH | ||||
| 72158-0E070-C0 note |
Cover, Seat Track Bracket, Inner LH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 72158-0E070-C0 note |
Cover, Seat Track Bracket, Inner LH
2016-11 → —
|
ASU50 | — | |
| 72158-0E070-C0 note |
Cover, Seat Track Bracket, Inner LH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 72158-0E070-C0 note |
Cover, Seat Track Bracket, Inner LH
2016-11 → —
|
GSU5#,GVU58 M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
