Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11

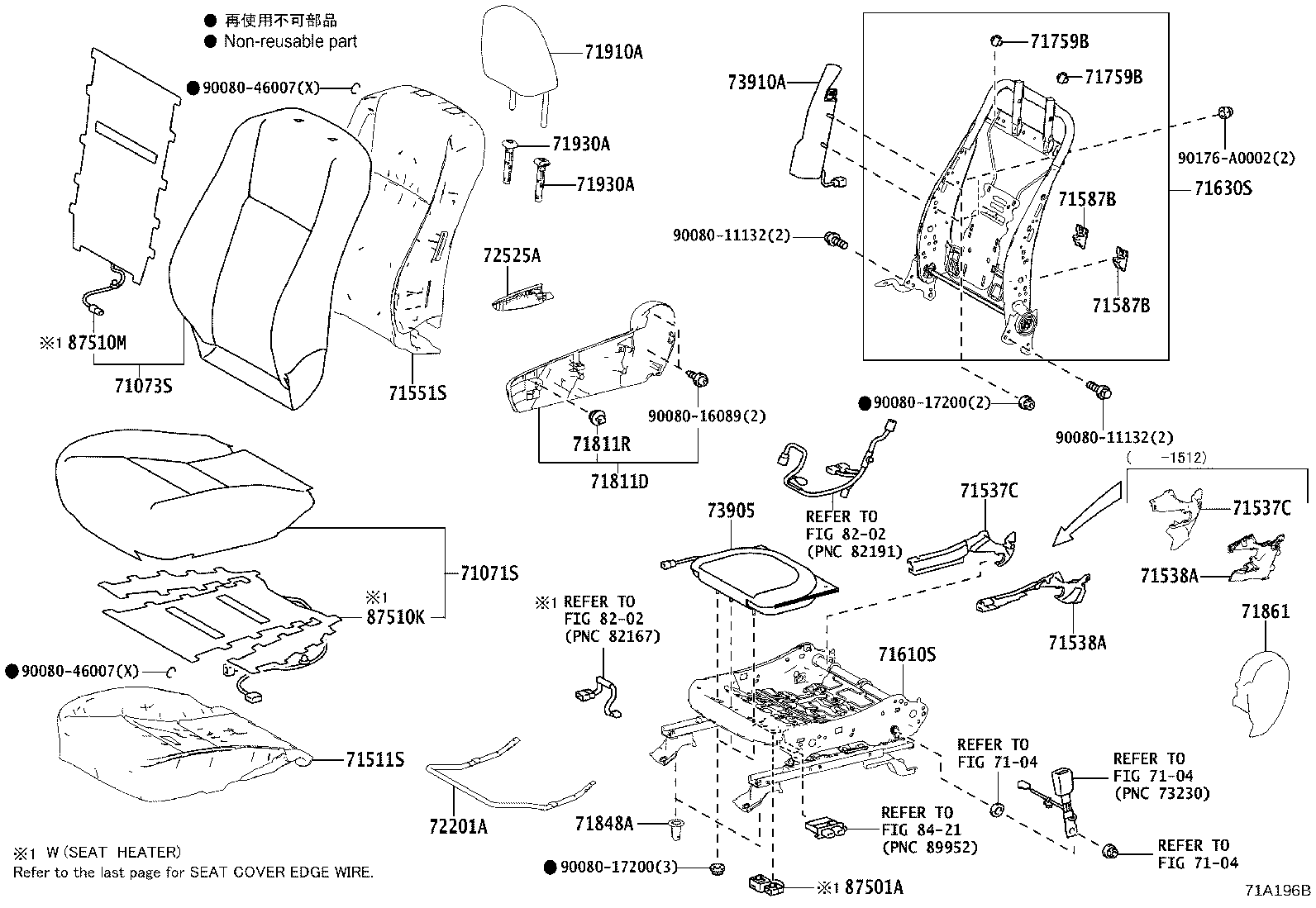

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) | ||||
| 71071-0E230-B2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
ASU50,GSU5# N | — | |
| 71071-0E230-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
ASU50,GSU5# N | — | |
| 71071-0E260-A3 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71071-0E260-A3 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71071-0E260-B1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71071-0E260-B1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71071-0E260-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71071-0E260-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71071-0E270-A4 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71071-0E270-A4 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71071-0E270-B2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71071-0E270-B2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71071-0E270-C2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71071-0E270-C2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71071-0E280-A2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E280-B1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E280-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E300-A2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71071-0E300-B1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71071-0E300-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71071-0E230-B2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2019-11
ended
|
ASU50,GSU5#,GVU58 N | — | |
| 71071-0E230-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2019-11
ended
|
ASU50,GSU5#,GVU58 N | — | |
| 71071-0E260-A3 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-09
ended
|
GSU5# N | — | |
| 71071-0E260-B1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-09
ended
|
GSU5# N | — | |
| 71071-0E260-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-09
ended
|
GSU5# N | — | |
| 71071-0E261-A3 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-11
ended
|
GSU5# N | — | |
| 71071-0E261-B1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-11
ended
|
GSU5# N | — | |
| 71071-0E261-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-11
ended
|
GSU5# N | — | |
| 71071-0E270-A4 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-09
ended
|
GSU5# N | — | |
| 71071-0E270-B2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-09
ended
|
GSU5# N | — | |
| 71071-0E270-C2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-09
ended
|
GSU5# N | — | |
| 71071-0E271-A4 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-10
ended
|
GSU5# N | — | |
| 71071-0E271-B2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-10
ended
|
GSU5# N | — | |
| 71071-0E271-C2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-10
ended
|
GSU5# N | — | |
| 71071-0E300-A2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2019-10
ended
|
GSU5#,GVU58 G | — | |
| 71071-0E300-B1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2019-10
ended
|
GSU5#,GVU58 G | — | |
| 71071-0E300-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2019-10
ended
|
GSU5#,GVU58 G | — | |
| 71071-0E300-E0 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2019-10
ended
|
GSU5#,GVU58 G | — | |
| 71071-0E480-A0 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-08
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E480-B0 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-08
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E480-C0 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-08
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E483-A1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-10
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E483-B1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-10
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E483-C1 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-10
ended
|
GSU5#,GVU58 M | — | |
| 71071-0E490-C2 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2018-08
ended
|
GSU5# M | — | |
| 71071-0E492-C4 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2019-01 → 2019-10
ended
|
GSU5# M | — | |
| 71071-0E492-C4 note |
Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-09 → 2019-10
ended
|
GSU5# M | — | |
| 71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE) | ||||
| 71073-0E270-B1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
ASU50,GSU5# N | — | |
| 71073-0E270-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
ASU50,GSU5# N | — | |
| 71073-0E290-A2 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71073-0E290-A2 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71073-0E290-B1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71073-0E290-B1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71073-0E290-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71073-0E290-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71073-0E300-A3 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71073-0E300-A3 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71073-0E300-B1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71073-0E300-B1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71073-0E300-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71073-0E300-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71073-0E310-A1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 71073-0E310-B0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 71073-0E310-C0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 71073-0E320-A1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71073-0E320-B0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71073-0E320-C0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71073-0E270-B1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 71073-0E270-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 71073-0E290-A2 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5# N | — | |
| 71073-0E290-B1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5# N | — | |
| 71073-0E290-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5# N | — | |
| 71073-0E300-A3 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5# N | — | |
| 71073-0E300-B1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5# N | — | |
| 71073-0E300-C1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5# N | — | |
| 71073-0E310-A1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 M | — | |
| 71073-0E310-B0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 M | — | |
| 71073-0E310-C0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 M | — | |
| 71073-0E320-A1 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71073-0E320-B0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71073-0E320-C0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71073-0E320-E0 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71073-0E450-C2 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → 2018-09
ended
|
GSU5# M | — | |
| 71073-0E450-C3 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-09 → —
|
GSU5# M | — | |
| 71073-0E450-C3 note |
Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2019-01 → —
|
GSU5# M | — | |
| 71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) | ||||
| 71501-0E020 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71511-0E110 note |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# M | — | |
| 71511-0E110 note |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71511-0E110 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# M;GVU58 M,N | — | |
| 71511-0E110 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
ASU50,GSU5# N | — | |
| 71511-0E110 note |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71501-0E020 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2016-12
ended
|
GSU5#,GVU58 G | — | |
| 71501-0E021 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-12 → —
|
GSU5#,GVU58 G | — | |
| 71501-0E100 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 M | — | |
| 71511-0E110 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-11 → 2016-12
ended
|
ASU50,GSU5#,GVU58 N | — | |
| 71511-0E111 |
Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-12 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 71537C — Protector, Front Seat Cushion Edge, RH | ||||
| 71537-0E050-A0 note |
Protector, Front Seat Cushion Edge, RH
2015-12 → 2016-11
ended
|
GSU5#,GVU58 | — | |
| 71537-0E050-B0 note |
Protector, Front Seat Cushion Edge, RH
2015-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71537-0E050-C0 note |
Protector, Front Seat Cushion Edge, RH
2015-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71537-0R010-A0 note |
Protector, Front Seat Cushion Edge, RH
2013-12 → 2015-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71537-0R010-B0 note |
Protector, Front Seat Cushion Edge, RH
2013-12 → 2015-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71537-0R010-C0 note |
Protector, Front Seat Cushion Edge, RH
2013-12 → 2015-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71537-0E050-A0 note |
Protector, Front Seat Cushion Edge, RH
2016-11 → —
|
GSU5#;GVU58 G,M | — | |
| 71537-0E050-B0 note |
Protector, Front Seat Cushion Edge, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 71537-0E050-C0 note |
Protector, Front Seat Cushion Edge, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71537-0E050-C0 note |
Protector, Front Seat Cushion Edge, RH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71538A — Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) | ||||
| 71538-0E030-A0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-12 → 2016-11
ended
|
GSU5#,GVU58 | — | |
| 71538-0E030-B0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71538-0E030-C0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2015-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71538-0R010-A0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2013-12 → 2015-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71538-0R010-B0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2013-12 → 2015-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71538-0R010-C0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2013-12 → 2015-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71538-0E030-A0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-11 → —
|
GSU5#;GVU58 G,M | — | |
| 71538-0E030-B0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 71538-0E030-C0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-11 → —
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71538-0E030-C0 note |
Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE) | ||||
| 71505-0E010 |
Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71551-0E090 |
Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71505-0E010 |
Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71551-0E090 |
Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2016-11 → —
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71587B — Protector, Front Seatback Edge | ||||
| 71587-52030 |
Protector, Front Seatback Edge
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71587-52030 |
Protector, Front Seatback Edge
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 71610S — Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) | ||||
| 71610-0E050 |
Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 N | — | |
| 71610-0E060 |
Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 71610-0E060 note |
Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71610-0E060 note |
Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 71610-0E090 |
Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) | ||||
| 71630-0E030 |
Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71630-0E050 |
Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71759B — Hook, Front Seatback | ||||
| 71759-0E010 |
Hook, Front Seatback
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71759-0E010 |
Hook, Front Seatback
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 71811D — Shield, Front Seat Cushion, RH | ||||
| 71811-0E120-A0 note |
Shield, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71811-0E120-B0 note |
Shield, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71811-0E120-C0 note |
Shield, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71811-0E140-A0 note |
Shield, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71811-0E140-B0 note |
Shield, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71811-0E140-C0 note |
Shield, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 71811-0E120-A0 note |
Shield, Front Seat Cushion, RH
2016-11 → —
|
GSU5# N | — | |
| 71811-0E120-B0 note |
Shield, Front Seat Cushion, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 71811-0E120-C0 note |
Shield, Front Seat Cushion, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 71811-0E140-A0 note |
Shield, Front Seat Cushion, RH
2016-11 → —
|
GSU5#,GVU58 G,M | — | |
| 71811-0E140-B0 note |
Shield, Front Seat Cushion, RH
2016-11 → —
|
GSU5#,GVU58 G,M | — | |
| 71811-0E140-C0 note |
Shield, Front Seat Cushion, RH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71811-0E140-C0 note |
Shield, Front Seat Cushion, RH
2016-11 → —
|
GSU5#,GVU58 M | — | |
| 71811R — Clip, Front Seat Cushion Shield, RH | ||||
| 71769-47020 |
Clip, Front Seat Cushion Shield, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71769-47020 |
Clip, Front Seat Cushion Shield, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 71848A — Cap, Seat Adjuster Cover, RH | ||||
| 71848-33010 |
Cap, Seat Adjuster Cover, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71848-0E070 |
Cap, Seat Adjuster Cover, RH
2016-11 → —
|
GSU5#,GVU58 M | — | |
| 71848-33010 |
Cap, Seat Adjuster Cover, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 G,N | — | |
| 71861 — Shield, Front Seat Cushion, Inner RH | ||||
| 71861-0E070-A0 note |
Shield, Front Seat Cushion, Inner RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71861-0E070-B0 note |
Shield, Front Seat Cushion, Inner RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71861-0E070-C0 note |
Shield, Front Seat Cushion, Inner RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71861-0E070-A0 note |
Shield, Front Seat Cushion, Inner RH
2016-11 → —
|
GSU5#;GVU58 G,M | — | |
| 71861-0E070-B0 note |
Shield, Front Seat Cushion, Inner RH
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 71861-0E070-C0 note |
Shield, Front Seat Cushion, Inner RH
2016-11 → —
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71861-0E070-C0 note |
Shield, Front Seat Cushion, Inner RH
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71910A — Headrest Assy, Front Seat | ||||
| 71910-0E250-B0 note |
Headrest Assy, Front Seat
2013-12 → 2016-11
ended
|
ASU50,GSU5# N | — | |
| 71910-0E250-C0 note |
Headrest Assy, Front Seat
2013-12 → 2016-11
ended
|
ASU50,GSU5# N | — | |
| 71910-0E260-A4 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GVU58;GSU5# G,M | — | |
| 71910-0E260-A4 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GSU5# N | — | |
| 71910-0E260-A4 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GSU5# N | — | |
| 71910-0E260-B2 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GVU58;GSU5# G,M | — | |
| 71910-0E260-B2 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GSU5# N | — | |
| 71910-0E260-B2 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GSU5# N | — | |
| 71910-0E260-C2 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GSU5# N | — | |
| 71910-0E260-C2 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GSU5# N | — | |
| 71910-0E260-C2 note |
Headrest Assy, Front Seat
2013-12 → 2016-04
ended
|
GVU58;GSU5# G,M | — | |
| 71910-0E261-A4 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GVU58;GSU5# G,M | — | |
| 71910-0E261-A4 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GSU5# N | — | |
| 71910-0E261-A4 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GSU5# N | — | |
| 71910-0E261-B2 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GVU58;GSU5# G,M | — | |
| 71910-0E261-B2 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GSU5# N | — | |
| 71910-0E261-B2 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GSU5# N | — | |
| 71910-0E261-C2 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GVU58;GSU5# G,M | — | |
| 71910-0E261-C2 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GSU5# N | — | |
| 71910-0E261-C2 note |
Headrest Assy, Front Seat
2016-04 → 2016-11
ended
|
GSU5# N | — | |
| 71910-0E250-B0 note |
Headrest Assy, Front Seat
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 71910-0E250-C0 note |
Headrest Assy, Front Seat
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 71910-0E261-A5 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5#,GVU58 G,M | — | |
| 71910-0E261-A5 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5# N | — | |
| 71910-0E261-A5 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5# N | — | |
| 71910-0E261-B3 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5#,GVU58 G,M | — | |
| 71910-0E261-B3 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5# N | — | |
| 71910-0E261-B3 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5# N | — | |
| 71910-0E261-C3 note |
Headrest Assy, Front Seat
2016-11 → 2018-09
ended
|
GSU5# M | — | |
| 71910-0E261-C4 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5# M | — | |
| 71910-0E261-C4 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5# G;GVU58 G,M | — | |
| 71910-0E261-C4 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5# N | — | |
| 71910-0E261-C4 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5# N | — | |
| 71910-0E261-C5 note |
Headrest Assy, Front Seat
2018-09 → —
|
GSU5# M | — | |
| 71910-0E261-E0 note |
Headrest Assy, Front Seat
2016-11 → —
|
GSU5#,GVU58 G | — | |
| 71930A — Support Assy, Front Seat Headrest | ||||
| 71930-47020-A7 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71930-47020-A7 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
GVU58;GSU5# G,M | — | |
| 71930-47020-A7 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71930-47020-B5 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71930-47020-C0 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71931-47020-A7 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
GVU58;GSU5# G,M | — | |
| 71931-47020-A7 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71931-47020-A7 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 71931-47020-B5 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71931-47020-C0 note |
Support Assy, Front Seat Headrest
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 71930-47020-A7 note |
Support Assy, Front Seat Headrest
2016-11 → —
|
GSU5# N | — | |
| 71930-47020-A7 note |
Support Assy, Front Seat Headrest
2016-11 → —
|
GSU5# N | — | |
| 71930-47020-A7 note |
Support Assy, Front Seat Headrest
2016-11 → —
|
GSU5#,GVU58 G,M | — | |
| 71930-47020-B5 note |
Support Assy, Front Seat Headrest
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 71930-47020-C0 note |
Support Assy, Front Seat Headrest
2016-11 → 2017-10
ended
|
GSU5#,GVU58 G | — | |
| 71930-47020-C0 note |
Support Assy, Front Seat Headrest
2016-11 → 2017-10
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71930-47020-C4 note |
Support Assy, Front Seat Headrest
2017-10 → —
|
GSU5#,GVU58 G | — | |
| 71930-47020-C4 note |
Support Assy, Front Seat Headrest
2017-10 → —
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71931-47020-A7 note |
Support Assy, Front Seat Headrest
2016-11 → —
|
GSU5#,GVU58 G,M | — | |
| 71931-47020-A7 note |
Support Assy, Front Seat Headrest
2016-11 → —
|
GSU5# N | — | |
| 71931-47020-A7 note |
Support Assy, Front Seat Headrest
2016-11 → —
|
GSU5# N | — | |
| 71931-47020-B5 note |
Support Assy, Front Seat Headrest
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 71931-47020-C0 note |
Support Assy, Front Seat Headrest
2016-11 → 2017-10
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71931-47020-C0 note |
Support Assy, Front Seat Headrest
2016-11 → 2017-10
ended
|
GSU5#,GVU58 G | — | |
| 71931-47020-C4 note |
Support Assy, Front Seat Headrest
2017-10 → —
|
ASU50,GSU5#,GVU58 M,N | — | |
| 71931-47020-C4 note |
Support Assy, Front Seat Headrest
2017-10 → —
|
GSU5#,GVU58 G | — | |
| 72201A — Handle Sub-assy, Seat Track RH | ||||
| 72211-08020 |
Handle Sub-assy, Seat Track RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 72211-08020 |
Handle Sub-assy, Seat Track RH
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 72525A — Handle, Reclining Adjuster Release, RH | ||||
| 72525-0R020-A0 note |
Handle, Reclining Adjuster Release, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 72525-0R020-B0 note |
Handle, Reclining Adjuster Release, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 72525-0R020-C0 note |
Handle, Reclining Adjuster Release, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 M,N | — | |
| 72525-0R020-A0 note |
Handle, Reclining Adjuster Release, RH
2016-11 → —
|
GSU5# N | — | |
| 72525-0R020-B0 note |
Handle, Reclining Adjuster Release, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 72525-0R020-C0 note |
Handle, Reclining Adjuster Release, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 N | — | |
| 73905 — Airbag Sub-assy, Front Seat, RH | ||||
| 73905-0E010 |
Airbag Sub-assy, Front Seat, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 73905-0E010 |
Airbag Sub-assy, Front Seat, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 73910A — Airbag Assy, Front Seat, RH | ||||
| 73910-0E060 |
Airbag Assy, Front Seat, RH
2013-12 → 2016-11
ended
|
ASU50,GSU5#,GVU58 | — | |
| 73910-0E060 |
Airbag Assy, Front Seat, RH
2016-11 → —
|
ASU50,GSU5#,GVU58 | — | |
| 87501A — Control Sub-assy, Seat Heater, RH | ||||
| 87501-60040 |
Control Sub-assy, Seat Heater, RH
2014-08 → 2016-11
ended
|
GSU5#,GVU58 G,M | — | |
| 87501-60040 note |
Control Sub-assy, Seat Heater, RH
2014-08 → 2016-11
ended
|
GSU5# N | — | |
| 87501-60040 note |
Control Sub-assy, Seat Heater, RH
2014-08 → 2016-11
ended
|
GVU58 N | — | |
| 87501-60050 |
Control Sub-assy, Seat Heater, RH
2013-12 → 2014-07
ended
|
GSU5#,GVU58 G,M | — | |
| 87501-60050 note |
Control Sub-assy, Seat Heater, RH
2013-12 → 2014-07
ended
|
GSU5# N | — | |
| 87501-60050 note |
Control Sub-assy, Seat Heater, RH
2014-01 → 2014-07
ended
|
GVU58 N | — | |
| 87501-60040 note |
Control Sub-assy, Seat Heater, RH
2016-11 → —
|
GSU5# N | — | |
| 87501-60040 |
Control Sub-assy, Seat Heater, RH
2016-11 → —
|
GSU5#,GVU58 G,M | — | |
| 87510K — Heater Assy, Front Seat Cushion, RH | ||||
| 87510-0E120 |
Heater Assy, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 87510-0E120 note |
Heater Assy, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 87510-0E120 note |
Heater Assy, Front Seat Cushion, RH
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 87510-0E130 |
Heater Assy, Front Seat Cushion, RH
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 87510-0E120 |
Heater Assy, Front Seat Cushion, RH
2016-11 → 2019-11
ended
|
GSU5#,GVU58 M | — | |
| 87510-0E120 note |
Heater Assy, Front Seat Cushion, RH
2016-11 → 2019-11
ended
|
GSU5# N | — | |
| 87510-0E130 |
Heater Assy, Front Seat Cushion, RH
2016-11 → 2019-11
ended
|
GSU5#,GVU58 G | — | |
| 87510M — Heater Assy, Front Seatback, RH | ||||
| 87530-0E070 |
Heater Assy, Front Seatback, RH
2013-12 → 2016-11
ended
|
GSU5#,GVU58 M | — | |
| 87530-0E070 note |
Heater Assy, Front Seatback, RH
2013-12 → 2016-11
ended
|
GSU5# N | — | |
| 87530-0E070 note |
Heater Assy, Front Seatback, RH
2014-01 → 2016-11
ended
|
GVU58 N | — | |
| 87530-0E080 |
Heater Assy, Front Seatback, RH
2013-12 → 2016-11
ended
|
GSU5#,GVU58 G | — | |
| 87530-0E070 |
Heater Assy, Front Seatback, RH
2016-11 → —
|
GSU5#,GVU58 M | — | |
| 87530-0E070 note |
Heater Assy, Front Seatback, RH
2016-11 → —
|
GSU5# N | — | |
| 87530-0E080 |
Heater Assy, Front Seatback, RH
2016-11 → —
|
GSU5#,GVU58 G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
