Vacuum Piping

21 part groups · 5 illustrations

Illustrations

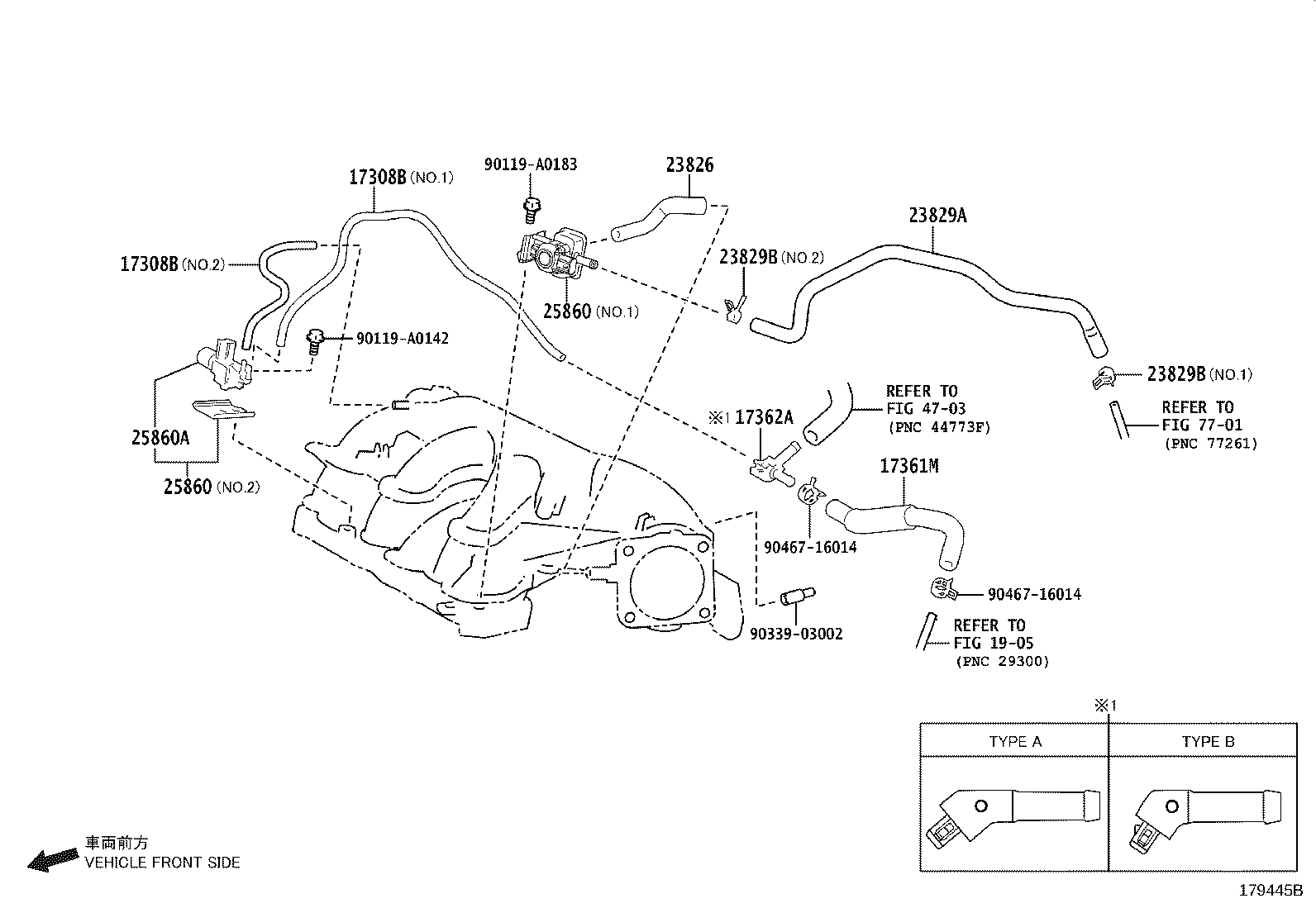

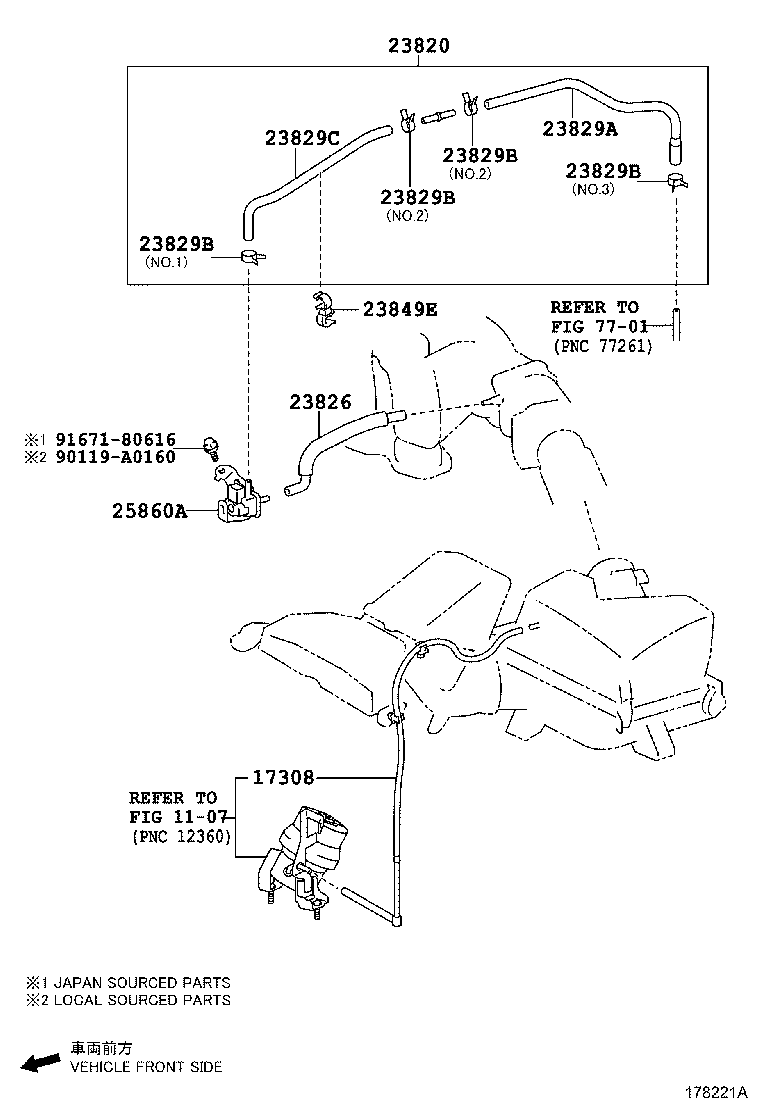

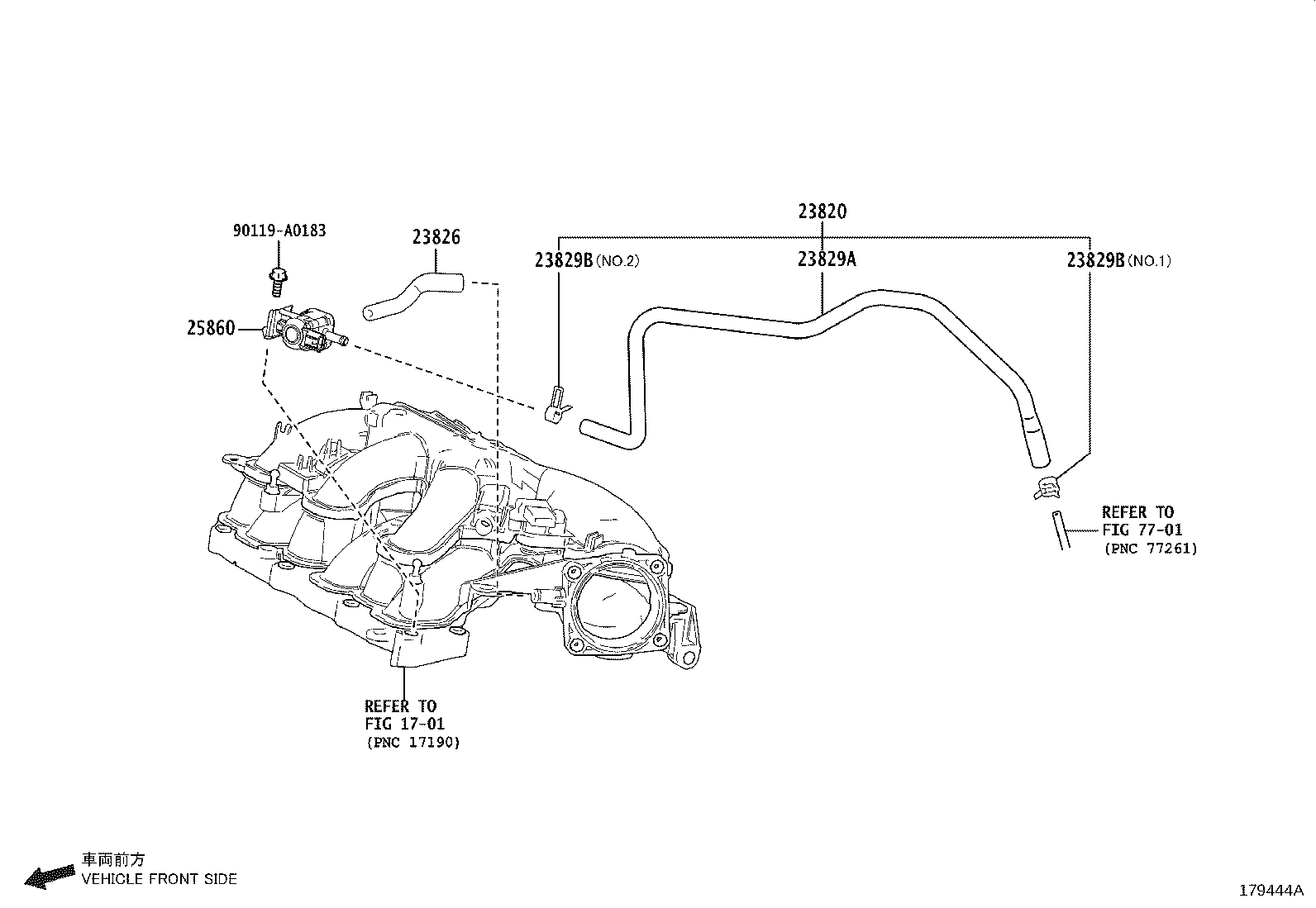

Figure 178246D 178246D 2013-12 → — Figure 178221A 178221A 2013-12 → 2016-11 Figure 178219A 178219A 2014-01 → 2016-11 Figure 179445B 179445B 2016-11 → — Figure 179444A 179444A 2016-11 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17308C Clamp(FOR VACUUM HOSE)
17341T Hose, Air, NO.1
17342L Hose, Air, NO.2
17361M Tube, Air
17362A Tube, Air, NO.2
17650 Valve Assy, Vacuum Switching
23285A Valve, Check, NO.1
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23829C Hose, Fuel Vapor Feed, NO.2
23830 Hose Assy, Fuel Vapor Feed, NO.2
23849E Support, Fuel Hose Clamp
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
