Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11

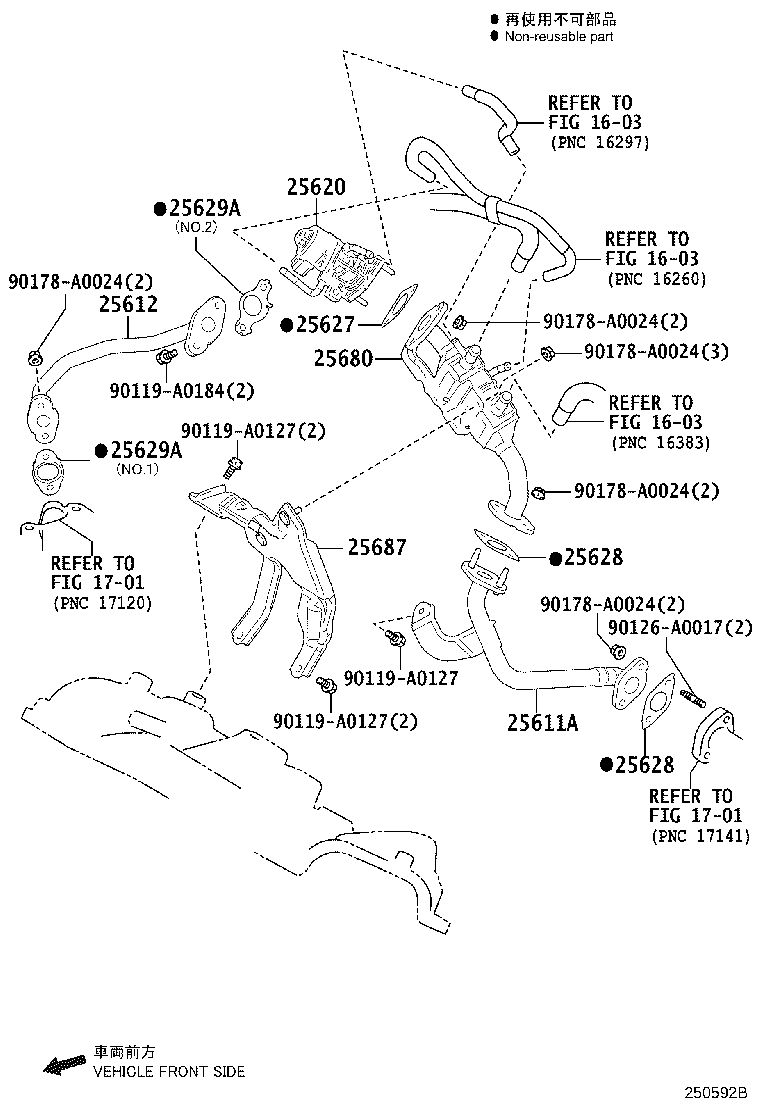

Exhaust Gas Recirculation System
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16295D | Hose, Water By-pass, NO.7 |
| 16295E | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 25600 | Valve Assy, Egr Integrated |
| 25611A | Pipe, Egr, NO.1 |
| 25612 | Pipe, Egr, NO.2 |
| 25620 | Valve Assy, Egr |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25629A | Gasket, Egr Pipe, NO.2 |
| 25638 | Chamber, Egr Delivery |
| 25680 | Cooler Assy, Egr |
| 25687 | Bracket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
