Toyota Highlander (NAP)

2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

1 part groups · 4 illustrations

Illustrations

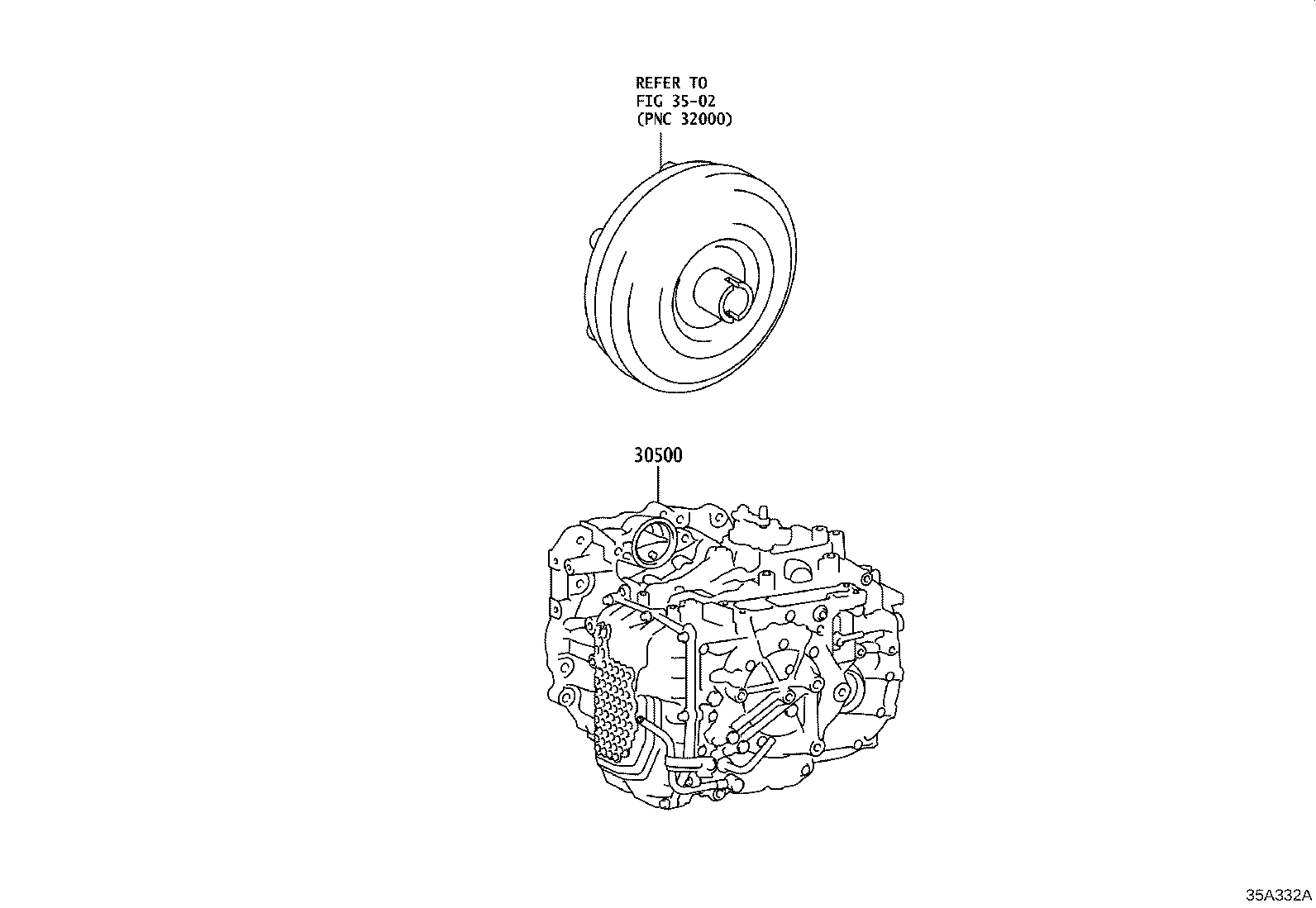

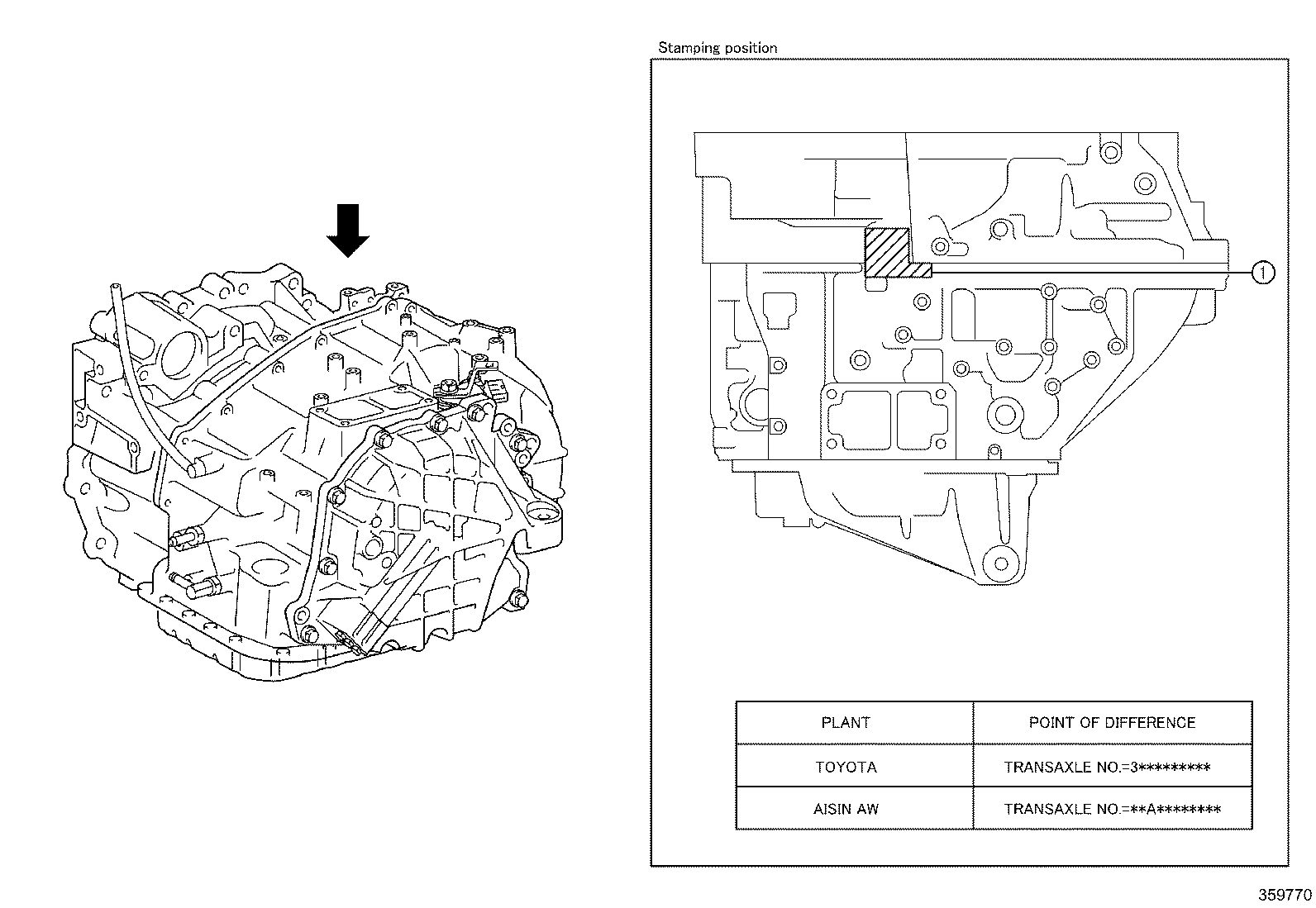

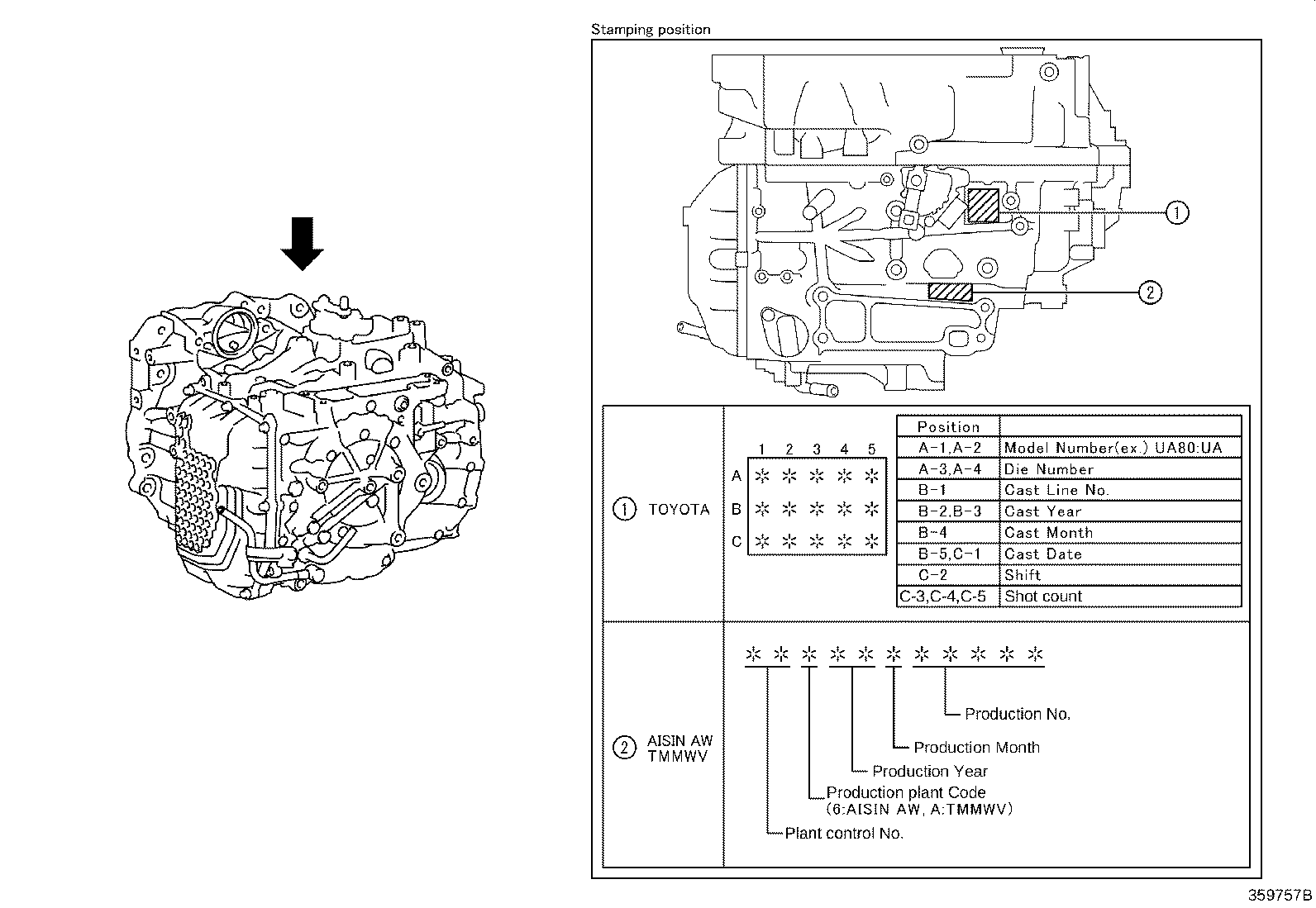

Figure 35A333 35A333 2013-12 → — Figure 359770 359770 2013-12 → — Figure 35A332A 35A332A 2016-11 → — Figure 359757B 359757B 2016-11 → —

Part groups

PNCDescription
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
