Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11
Torque Converter, Front Oil Pump & Chain (ATM)

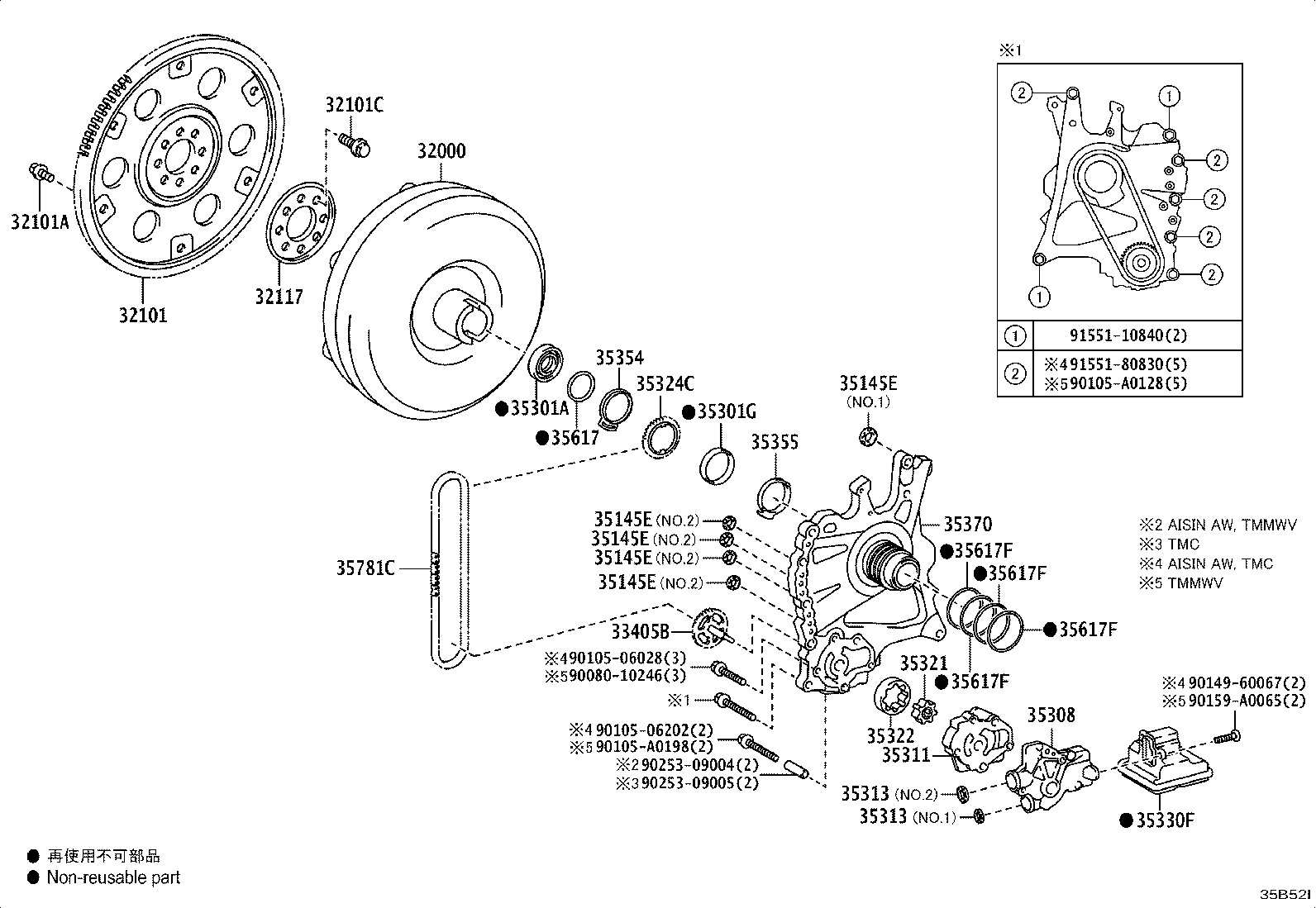

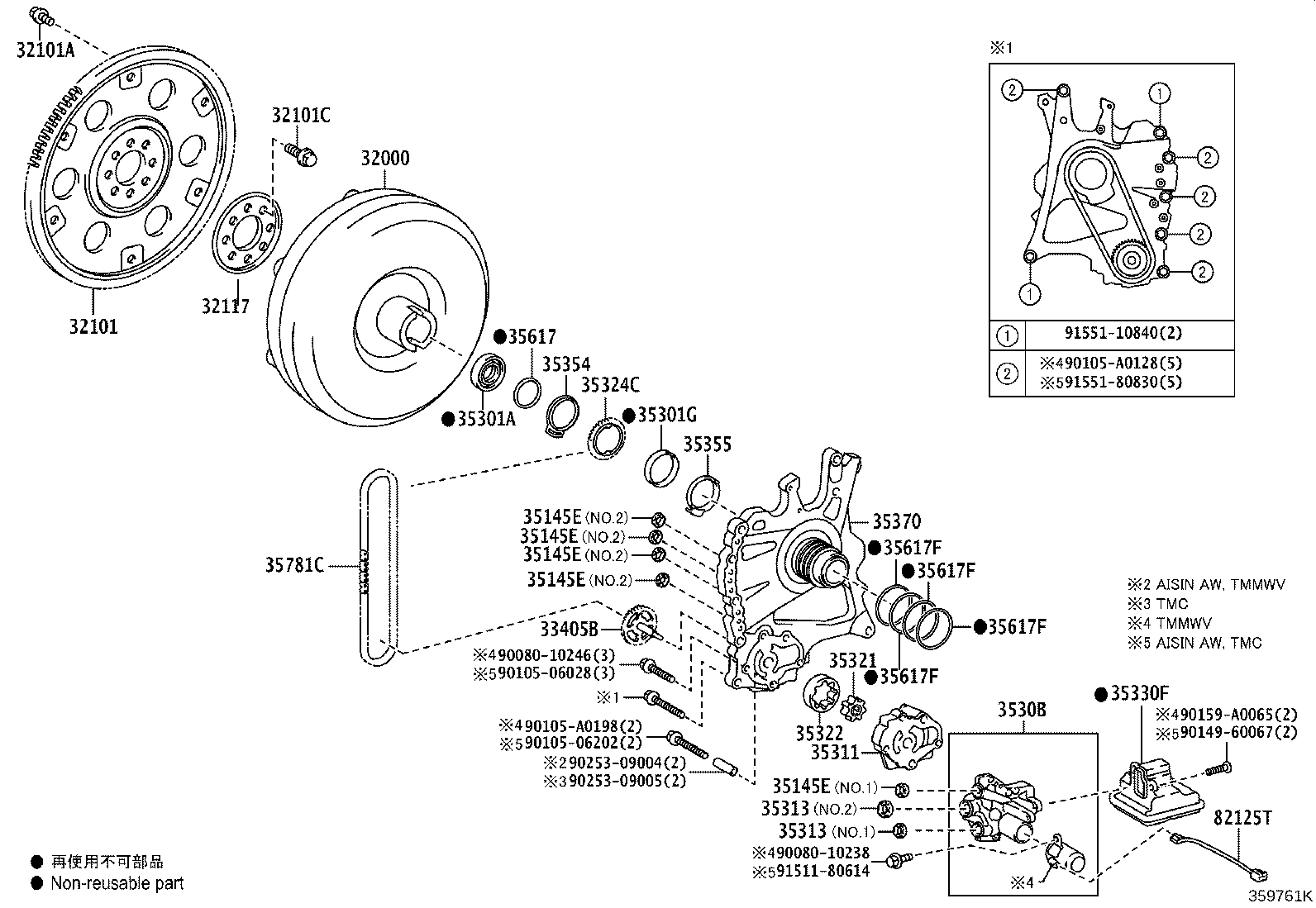

30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 32000 | Converter Assy, Torque |
| 32101 | Gear Sub-assy, Drive Plate & Ring |
| 32101A | Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) |
| 32101C | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32116 | Spacer, Drive Plate, Front |
| 32117 | Spacer, Drive Plate, Rear |
| 33405B | Shaft Sub-assy, Oil Pump Drive |
| 35035 | Body Sub-assy, FR Oil Pump & Gear |
| 35145E | Gasket, Transaxle Case |
| 35301A | Seal, Oil (FOR FRONT OIL PUMP) |
| 35301B | Ring, O (FOR FRONT OIL PUMP BODY) |
| 35301E | Pin, Straight (FOR FRONT OIL PUMP) |
| 35301F | Bolt (FOR FRONT OIL PUMP SETTING) |
| 35301G | Bearing,Needle Roller |
| 35307F | Bolt (FOR STATOR SHAFT) |
| 35308 | Cover Sub-assy, Front Oil Pump |
| 3530B | Cover Sub-assy, Front Oil Pump & Solenoid |
| 35311 | Body, Front Oil Pump |
| 35313 | Gasket, Front Oil Pump Cover |
| 35321 | Gear, Front Oil Pump Drive |
| 35322 | Gear, Front Oil Pump Driven |
| 35324C | Sprocket, Transmission Oil Pump Drive |
| 35330F | Strainer Assy, Oil |
| 35354 | Washer, Oil Pump Sprocket Thrust, Front |
| 35355 | Washer, Oil Pump Sprocket Thrust, Rear |
| 35370 | Shaft Assy, Stator |
| 35617 | Ring, Clutch Drum Oil Seal |
| 35617F | Ring, Clutch Drum Oil Seal |
| 35781C | Chain, Transmission Drive |
| 82125T | Wire, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
