Toyota Highlander (NAP)
2013-12 → 2019-11 · chassis ASU50,GSU5#,GVU58 · catalogue 526420 · United States
Supported model
Data version 2019-11

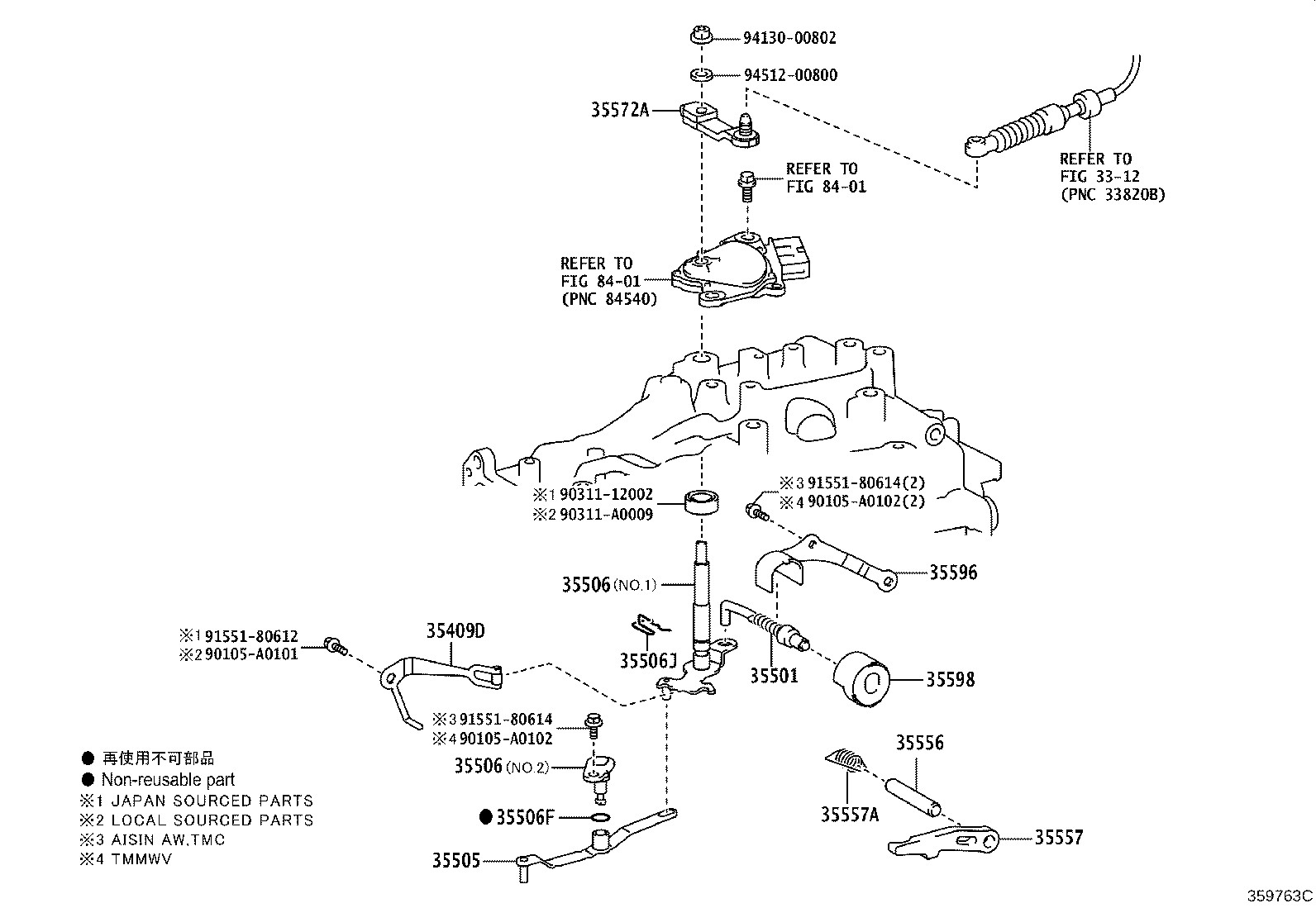

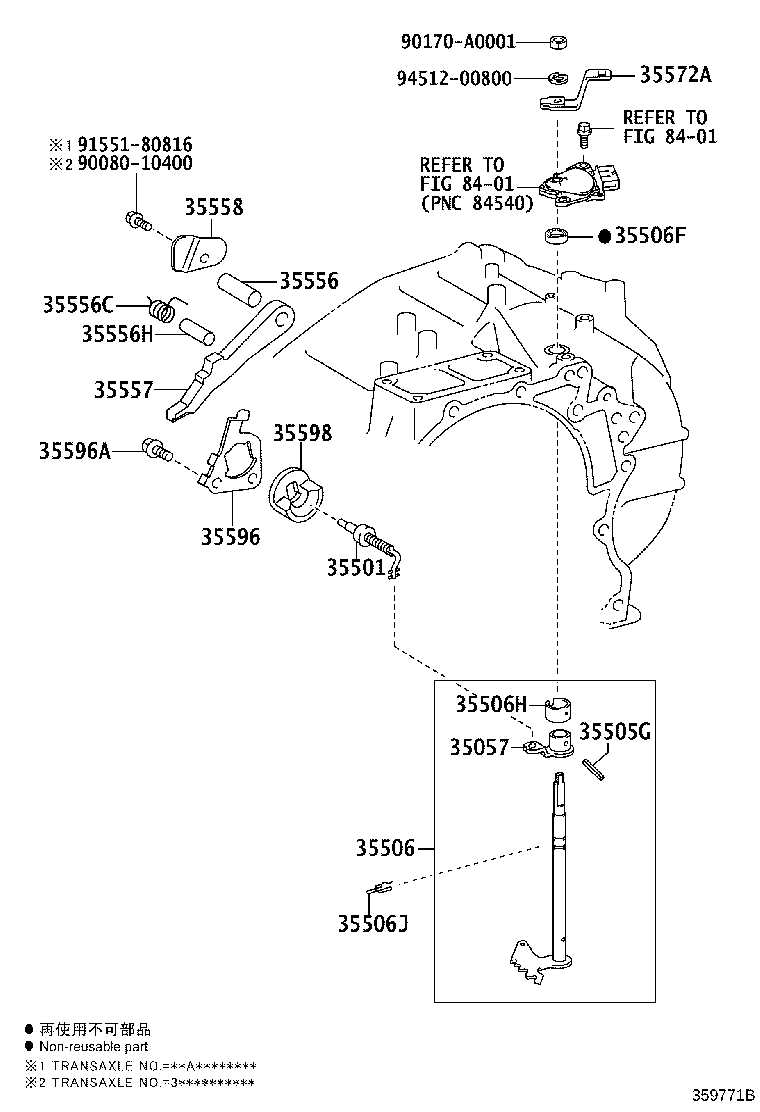

Throttle Link & Valve Lever (ATM)
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35057 | Lever Sub-assy,Parking Lock |
| 35409D | Spring Sub-assy, Manual Detent |
| 35501 | Rod Sub-assy, Parking Lock |
| 35505 | Lever Sub-assy, Manual Valve |
| 35505G | Pin, Slotted Spring (FOR MANUAL VALVE LEVER) |
| 35506 | Shaft Sub-assy, Manual Valve Lever |
| 35506F | Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) |
| 35506H | Spacer (FOR MANUAL VALVE LEVER SHAFT) |
| 35506J | Spring, Retainer (FOR MANUAL VALVE LEVER SHAFT) |
| 35556 | Shaft, Parking Lock Pawl |
| 35556C | Spring, Torsion (FOR PARKING LOCK PAWL SHAFT) |
| 35556H | Shaft, Parking Lock Pawl |
| 35557 | Pawl, Parking Lock |
| 35557A | Spring, Torsion (FOR PARKING LOCK PAWL) |
| 35558 | Clamp, Pawl Shaft |
| 35572A | Lever, Transmission Control Shaft |
| 35596 | Plate, Pawl Stopper |
| 35596A | Bolt (FOR PAWL STOPPER PLATE) |
| 35598 | Sleeve, Parking Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
